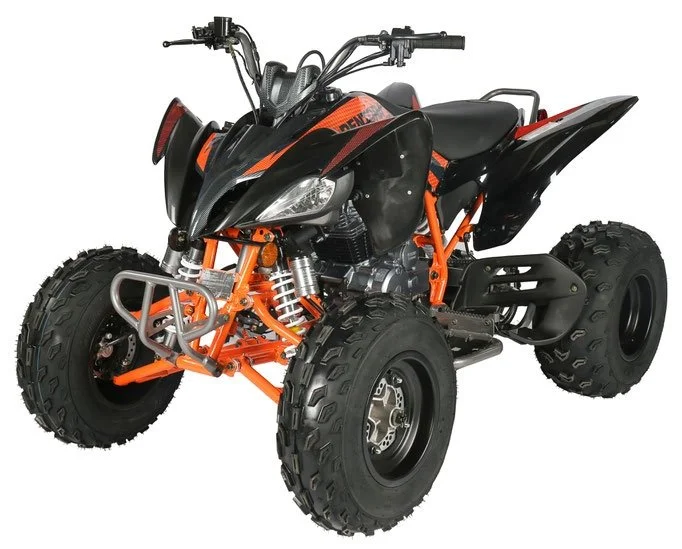

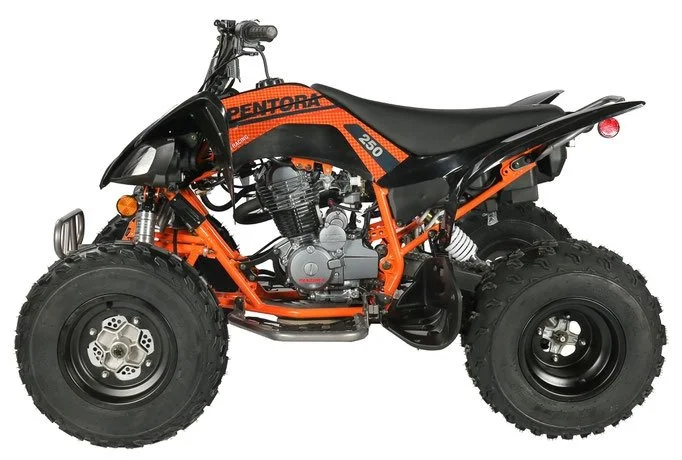

Vitaccii Pentora Racing ATV

SPECIFICATION

SPECIFICATION
PARTS SPECIFICATION

L×W×H
1625*1060*1065

WHEELBASE
1090±20mm

FRONT WHEELBASE
820mm

REAR WHEELBASE
830mm

MINIMUM GROUND CLEARANCE
135±15mm

SEAT HEIGHT
790±15 mm

RIDE HEIGHT
225mm

HANDLE HEIGHT
1000mm

PACKING SIZE
1460*880*860mm 62pcs/40HQ

MINIMUM TURNING CIRCLE DIAMETER
5900±500mm

TURNING ANGLE
<45°

RATED LOAD
100kg

NET WEIGHT
149kg

GROSS WEIGHT (WITH PACKING)
177kg

F&R BRAKE
F&R HYDRAULIC DISC

F&R BRAKE OPERATION TYPE
FRONT HAND BRAKE, REAR FOOT BRAKE

F&R RIM
10*5.5AT/9*8.0AT

F&R TYRE
AT20*7.0-10/AT19*10-9

TRANSMISSION
CHAIN







TECHNICAL SPECIFICATION


FUEL TANK
9L`

BATTRY
12V/7HA `

MAXIMUM SPEED
70km/h


SPECIFICATION

STARTING PERFORMANCE
15S

CLIMBING PERFORMANCE
21°

PARKING PERFORMANCE
≥18°

EMISSION INDEX

CO (%)
≤3.8

HC(PPm)
≤800

         db.(A)
≤82 dB(A)

ENGINE SPECIFICATION

MODEL
LC166FMM

TYPE
SINGLE CYLINDER、250cc air cooler 2 valves、4-STROKE

BRAND
LONCIN

BRORE×STROKE
65.5×66.2mm

capacity
223mL

COMPRESSION RATIO
9.0:1

MAX.POWER
12（1±5%）kW /7500（1±5%）rpm

MAX.TORQUE
17（1±5%）N · m /6000（1±5%）rpm

Min  no load speed
1500（1±10%） r /min

 min fuel consumption rate
354g / kw.h

Fuel no.
≥RQ90

CLUTCH METHOD
Manual

Start
Electrical start

cdi
C.D.I

PARTS SPECIFICATION

carb
PZ30

Spark plug
D8TC

Front light
12V18-18W






TECHNICAL SPECIFICATION

Max speed
70km/h

Start time
15S

break

前轮力和
≥60%

前轮力差
≥55%

后轮力和
≤20%

后轮力差
≤24%

CLIMBING PERFORMANCE
21°°

PARKING PERFORMANCE
≥18%

EMISSION INDEX
CO (%)
≤3.8

HC(PPm)
≤800

db(A)
≤82 dB(A)

Starting acceleration（S）
≤8

Speed acceleration（S）
≤8

Parts spec

Tank capacity
9L

Fr. & re suspension
Oil dumper

Fr. &re suspension
L=350 m m /L=390 m m
