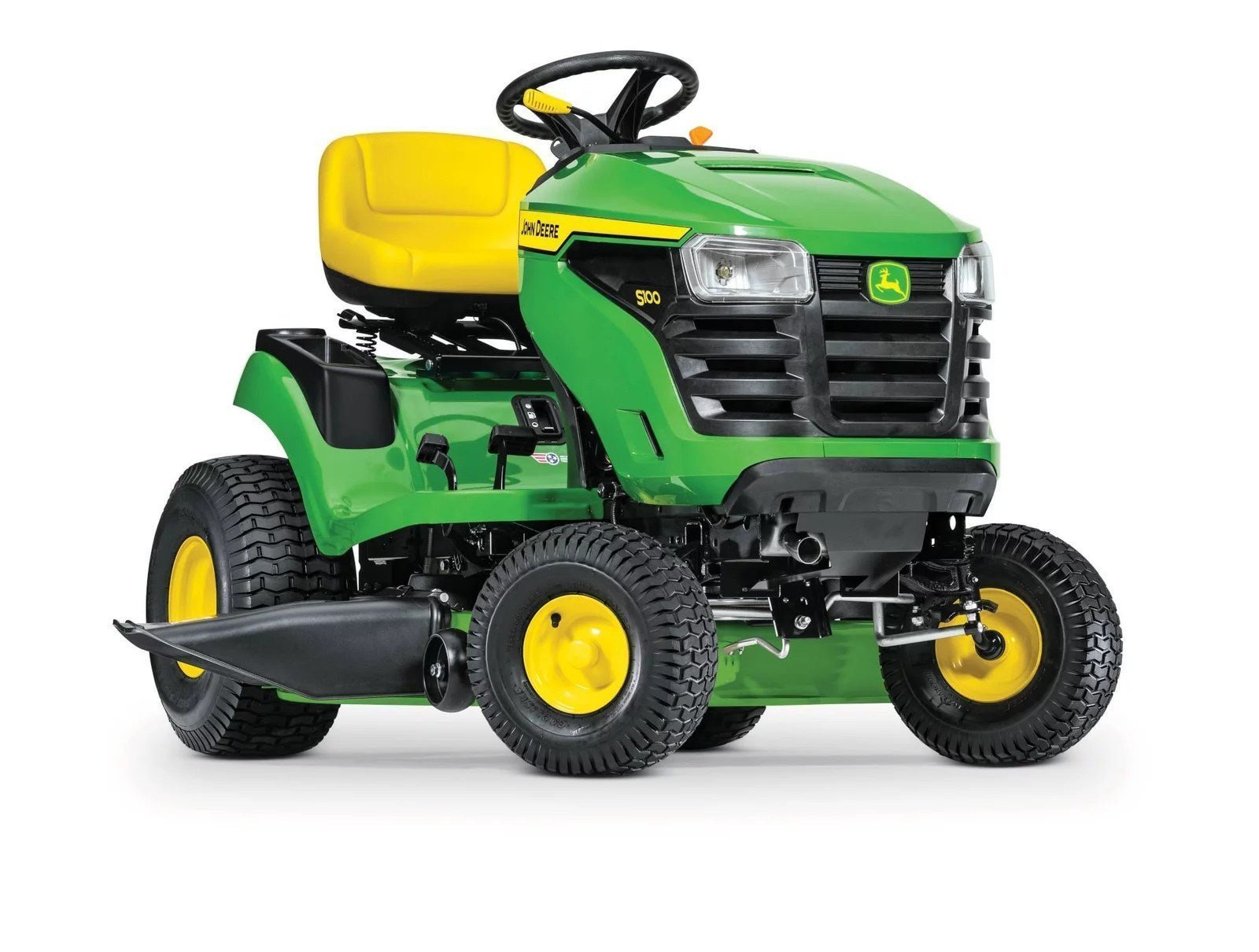

John Deere S100 42 in. 17.5 HP GAS Hydrostatic Riding Lawn Tractor

17.5 hp (13 kW)* Engine
42-in. Edge™ Mower Deck
Hydrostatic Transmission w/side-by-side pedals
Spring-assisted hand grip lever raises and lowers deck easily
Operator station is wide and comfortable
2 year/120 hour bumper-to-bumper warranty

Powerful engine features full-pressure lubrication for long life

17.5-hp (13.0-kW) engine



Engine oil filter and fuel filter

A 17.5-hp (13.0-kW), single-cylinder engine has plenty of power and torque to handle tough mowing, mulching, and bagging:

Electronic ignition for fast starts
Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
Cast-iron cylinder liner for long engine life
Overhead valves for excellent power and fuel economy
Anti-vibration system
Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life, and extending the time between oil changes

More effective when operating the tractor on an incline

Large fuel filter for trouble-free operation

No-tools oil drain valve

The no-tools oil drain valve is easy to access when changing engine oil.
FUEL TANK

Convenient fuel filler opening

The capacity is 2.4 U.S. gal. (9.1 L).
The fuel filler opening is conveniently located under the seat.

Filling the tank without spilling is easy.
A tethered fuel tank cap is more convenient.
The sealed fuel cap helps keep vapors inside the tank.

Frame made of full-length welded steel for reliability

Solid one-piece frame



Solid one-piece frame

The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:

Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
One-piece, steel fender deck is bolted to the frame.

CAST-IRON FRONT AXLE WILL NOT BEND

Front axle and wheel spindle

The front axle is constructed of solid cast iron that will not bend:

Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.

FRONT BUMPER PROTECTS THE TRACTOR

Front bumper



Front bumper

The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.

Additional front-end protection
Attractive, bold style

CARGO MOUNT™ SYSTEM MAKES INSTALLATION OF REAR BAGGER AND OTHER ATTACHMENTS EASY

Rear CargO Mount points



Front CargO Mount points at the top of the dashboard

Rear bagger is mounted with CargO Mount points



Rear bagger is mounted with CargO Mount points

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.
Snow removal is a strength of lawn tractors

S140 Tractor with front blade, weights, and tire chains



S160 Tractor with snow blower, weather enclosure, weights, and tire chains

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:

44-in. (112-cm) Snow Blower
46-in. (117-cm) Front Blade
Tire chains or TerraGrip traction belts
Weather enclosure
Weights

Hydrostatic transmission gives an infinite choice of ground speeds

Two-pedal speed/direction controls



Forward speed control pedal in use

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

Automotive-type accelerator controls ensure easy operation.
Operator can change direction without lifting foot off the platform.
Large pedal surface gives superior operator comfort.

Hydrostatic transmission

Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

Tuff Torq TLT200 – S100, S110, S120, S130, S140, and S160
Tuff Torq K46 – S170 and S180

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.
Operator station designed for comfortable operation

Comfortable operator station, right side



Comfortable operator station, left side

The operator station is designed for operator comfort and easy operation:

Controls are positioned where they are easy to reach and easy to use to control the tractor.
Steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
Seat is positioned to provide the most comfortable operator position.

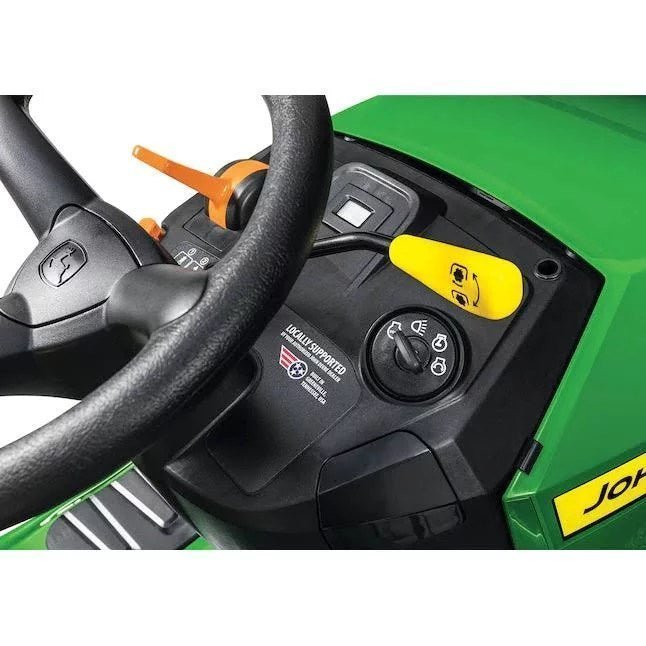

Steering wheel and dash



Wide footrest with debris channels

Controls are easy to see and use:

Large, three-spoke steering wheel for greater operator comfort and control
Ignition switch is on the dash for starting ease

Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:

The wide footrest makes it easier to step over the mower deck while entering or exiting the seat.
Debris-removing channels help keep the footrest area clean and dry.

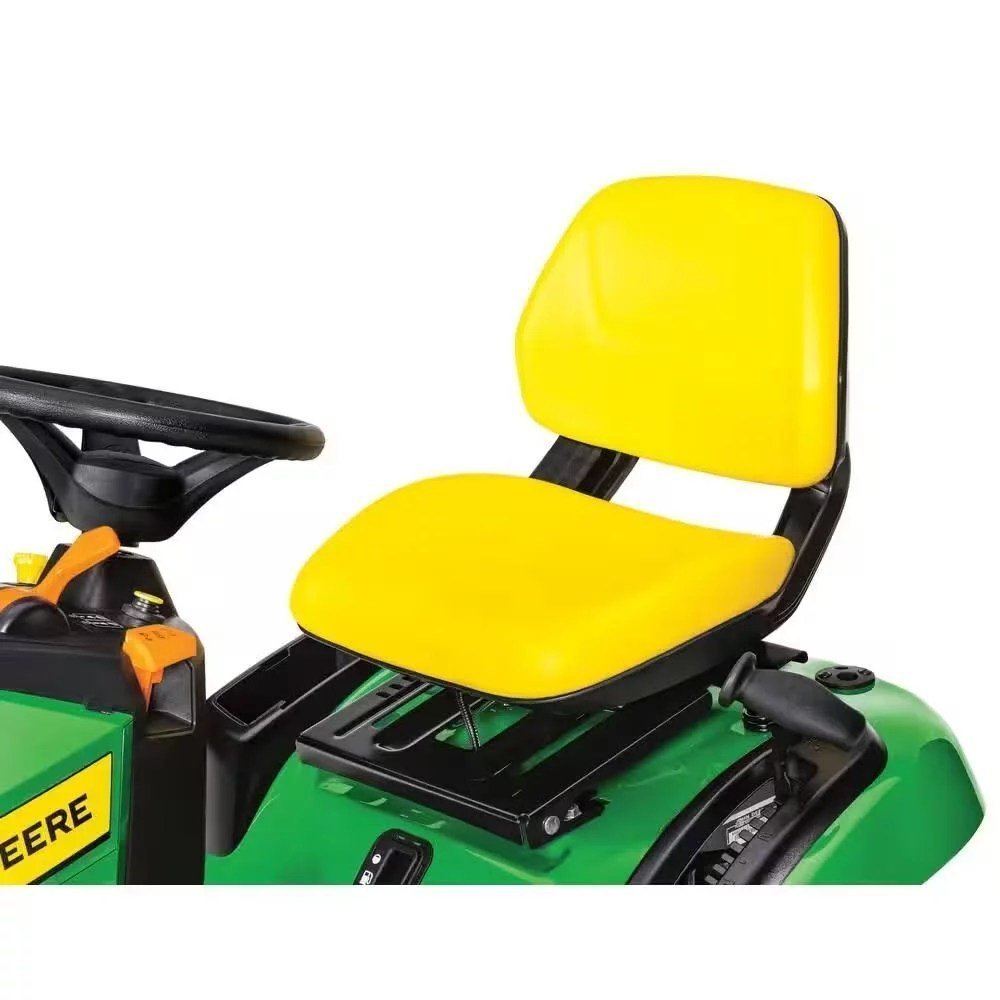

Comfortable seat



Easily adjusted seat and beverage holder

The operator seat has an 11-in. (28-cm) back height. It can be easily adjusted forward or rearward while the operator is in the seat, with seat travel of 5.5 in. (14 cm) and 10 different positions.
A beverage holder is located on the right-side fender for operator convenience.

Seat springs give a smoother ride



Seat tilted forward

Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.
Seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

Storage compartment and beverage holder

A storage compartment and beverage holder on the right-side fender are conveniently located and easy to use.
NOTE: A storage compartment cover is standard on S120, S130, S160, S170, and S180 Tractors and optional on the S100, S110, and S140.

Engine power
17.5 hp 13 kW

Oil change
No-tools oil drain with replaceable filter

Engine manufacturer/model
31R977 (M31)

Transaxle type
TLT200 hydrostatic, two-wheel drive

Transaxle control
Side-by-side pedals

Rear tires
20×8-8

Lift system type
Spring-assisted hand-grip lever

Cutting width
Edge™ mower deck, 42 in. 107 cm

U.S. warranty
2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Key Specs

Power
17.5 hp 13 kW

Displacement
30.5 cu in. 500 cc

Manufacturer/model
31R977 (M31)

Type
Overhead valve, full-pressure lube, oil filter

Cylinders
One

Governor
Mechanical

Choke/speed control
Single lever with spring-return on choke

Cooling method
Air

Air cleaner
Cartridge

Oil change
No-tools oil drain with replaceable filter

Engine

Type
Gasoline

Fuel delivery
Pulse pump and carburetor

Fuel gauge
Mechanical, viewable from seat

Fuel tank location
Rear

Fuel fill opening
Center, 1.75 in. 4.45 cm

Fuel tank capacity
2.4 U.S. gal. 9.1 L

Fuel system

Battery
12 V 300 CCA

Charging system
Regulated, 8 amp

Engine starter
Bendix type

Hour meter
Yes

Headlights
Two standard, incandescent

Taillights or reflector
No

Backup lights
No

Rear work lights
No

12-V outlet
No

Electrical system

Type
Hydrostatic, 2-wheel drive

Control
Side-by-side pedals

Cruise control
No

Oil cooler
Fins and fan on transaxle

Oil filter
Yes, not serviceable

Differential lock
No

Forward speed
0-5.5 mph 0-8.9 km/h

Reverse speed
0-3.2 mph 0-5.2 km/h

Brakes
Internal wet disk

Transaxle

Frame
Full-length welded steel

Primer/paint
E-coat/powder

Weight bracket
Optional rear

Receiver hitch
No

Front axle
Cast-iron front axle, powdered-metal front wheel bushings

Spindle bushings
No

Front tires
15×6-6

Rear tires
20×8-8

Hood material
Molded-in color material reduces sound, will not rust or dent

Fender deck material
Stamped steel

Floor mats
Yes, with debris removing channels

Storage
Storage tray with optional cover

Service interval decal
Yes

Fender handles/grips
No

Cup holder
Yes

Equipment mounting
CargO Mount™ system

Maximum towing capacity
500 lb 227 kg

Chassis

Type
Sector and pinion with single drag link and tie rod

Four-wheel steer
Not available on this model

Steering wheel
Standard, diameter – 12 in. 30.5 cm

Tilt steering wheel
No

Turning radius
18 in. 45.7 cm

Uncut circle radius
25 in. 63.5 cm

Steering

Type
One piece

Seat back height
11 in. 28 cm

Armrests
No

Fore-aft adjustment
While seated, 5.5 in. 14 cm

Seat suspension
Tilt, two coil springs

Seat

Type
Spring-assisted hand-grip lever

Hydraulic outlets
No

Mower cut height
13 positions, 1-4 in. 2.5-10.2 cm

Cut height increments
0.25 in. 0.64 cm

Preset cut height
No

Lift system

Type
Side discharge

Cutting width
Edge™ mower deck, 42 in. 107 cm

Construction
Stamped steel deck shell

Mower deck material
Steel, 13 gauge 0.090 in. 2.3 mm

Mower wash port
Yes

Mower drive system
Manual power take-off (PTO)

Mower wheels
Two

Mower wheel adjustment
One bolt

Mower level adjustment
Easy-level deck

Mower deck

Type
Slide under tractor

Front draft arms
One spring clip

Rear draft arms
Two spring clips

Mower wheels rotate
No

Drive system
Single belt

Mower attachability

Meets ANSI standard
Yes

Meets OPEI standard
Yes

Backup protection
Reverse Implement Option (RIO)

Safety video
Yes

Safety

Notes
Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame

Warranty
2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Buyer’s notes

Rear bagger
2-bag, 6.5 bu 229 L

Mulching system
Mulch cover or high-performance plug

Front blade
46 in. 116.8 cm

Snow blower
Two-stage, 44 in. 111.8 cm

Sprayer
Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L

Spreader
Tow-behind only, 125-175 lb 57.7-80 kg

Front bumper
Styled front bumper

Weather protection
Weather enclosure

Sun canopy
Sun canopy

Bucket holder
Yes, single bucket

Grass striping
Lawn striping kit

Tow-behind tools
16

Optional equipment

Height
40 in. 1016 mm

Overall length
69.7 in. 1770 mm

Wheelbase
48.9 in. 1242 mm

Width with mower
55.2 in. 1402 mm

Width with mower (deflector raised for storage)
46.5 in. 1181 mm

Width without mower
39.2 in. 996 mm

Weight
Mower, no fuel, 414 lb 188 kg

Dimensions

Manufacturing location
Greeneville, Tennessee, USA

Date collected
1-Dec-21
