Atlas PSP-6000 Portable Single-Post Lift – 6,000 lb. Capacity
The Atlas PSP-6000 is a highly versatile and portable single-post lift, designed for both commercial service shops and home garages. With a 6,000 lb. lifting capacity, this lift provides unobstructed access to vehicles, making it ideal for wheel service, undercar repairs, and general maintenance.
Its low-profile design, built-in drive-over ramps, and single-point lock release make it a practical and space-saving alternative to permanently mounted lifts. When not in use, the PSP-6000 can be easily rolled out of the way, maximizing garage space.
This lift is suitable for indoor and outdoor use, rolling smoothly on a level concrete surface. With a compact column that fits under a 9-foot ceiling, it accommodates most vehicles while providing ample lifting height for easy access.
Key Features & Benefits

6,000 lb. Lifting Capacity – Handles cars, SUVs, and light-duty trucks.
Portable Design – Easily rolls out of the way when not in use, freeing up garage space.
Low-Profile Construction – Allows vehicles to drive over the lift for easy positioning.
Rigid Base Construction – Ensures stability and strength during operation.

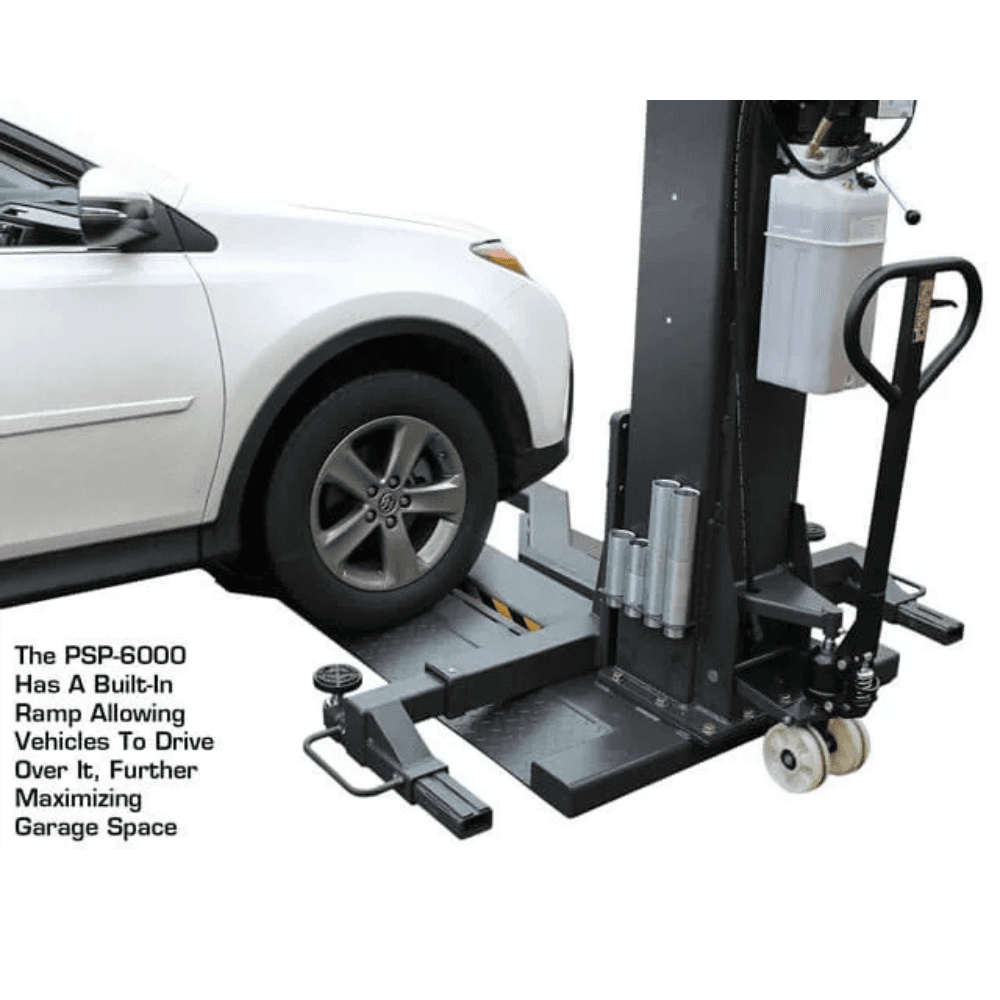

Built-In Drive-Over Ramps – Makes loading and unloading vehicles effortless.
Single-Point Lock Release – Simplifies lock disengagement for controlled descent.

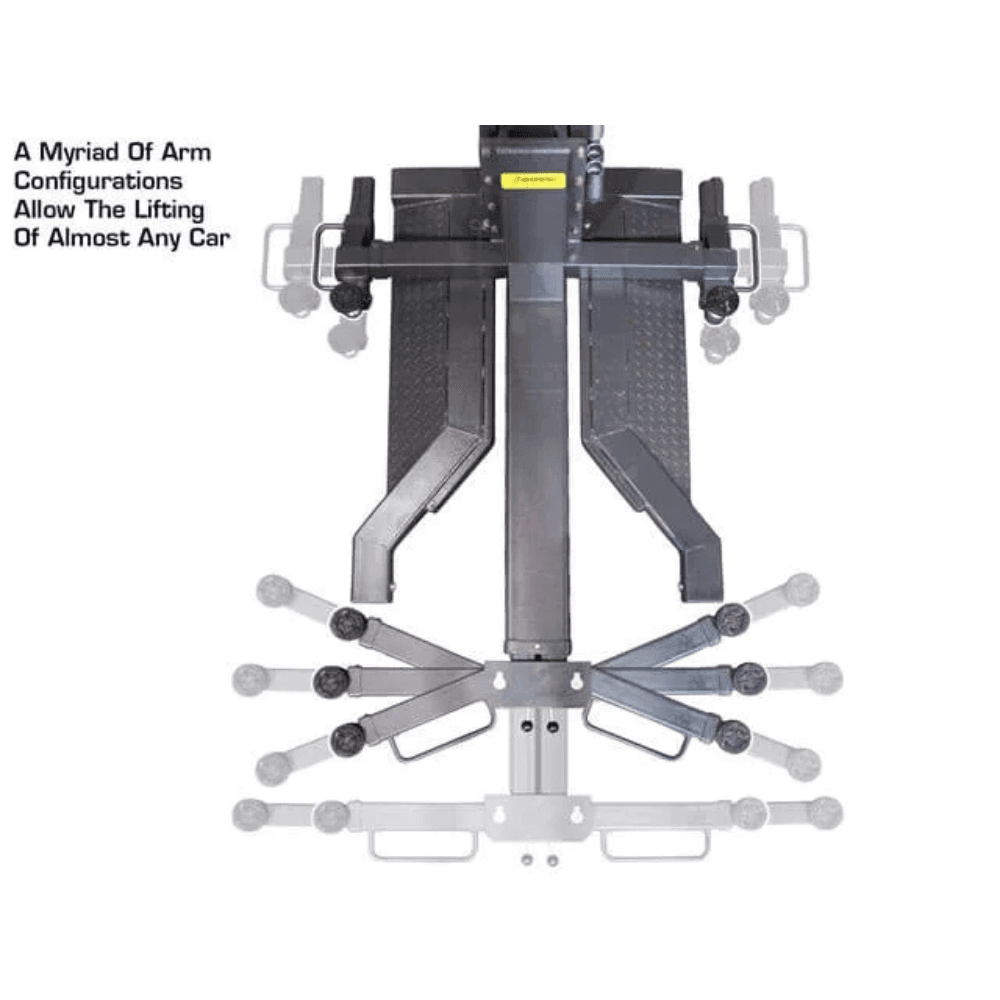

Two-Stage Telescoping Swing Arms – Offers greater flexibility in lifting points.
Locking Arm Restraints – Keeps lift arms securely in place.
Safety Chain Break Mechanism – Automatically locks the carriage in place in case of chain failure.
110V Electric Operation – Runs on a standard power supply with a 30-amp breaker.
Includes a Free 8-Piece Truck Adapter Set – Enhances compatibility for various vehicle types.

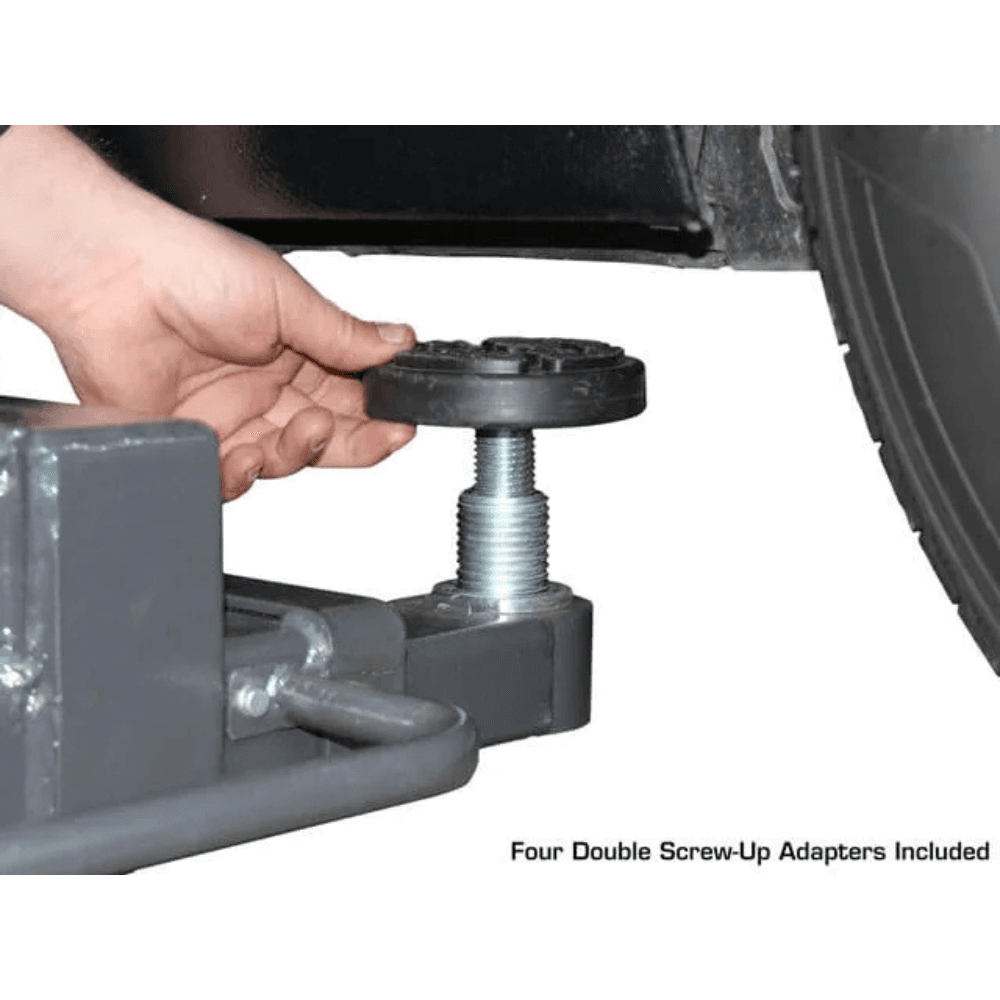

Double Screw-Up Adapters Included – Allows for fine height adjustments.
1-Year Manufacturer Warranty for Parts / 2-Year Warranty on Lifting Structure.

Technical Specifications

Specification
Measurement / Detail

Lifting Capacity
6,000 lbs.

Overall Height
102 3/4″ (8′ 6 3/4″)

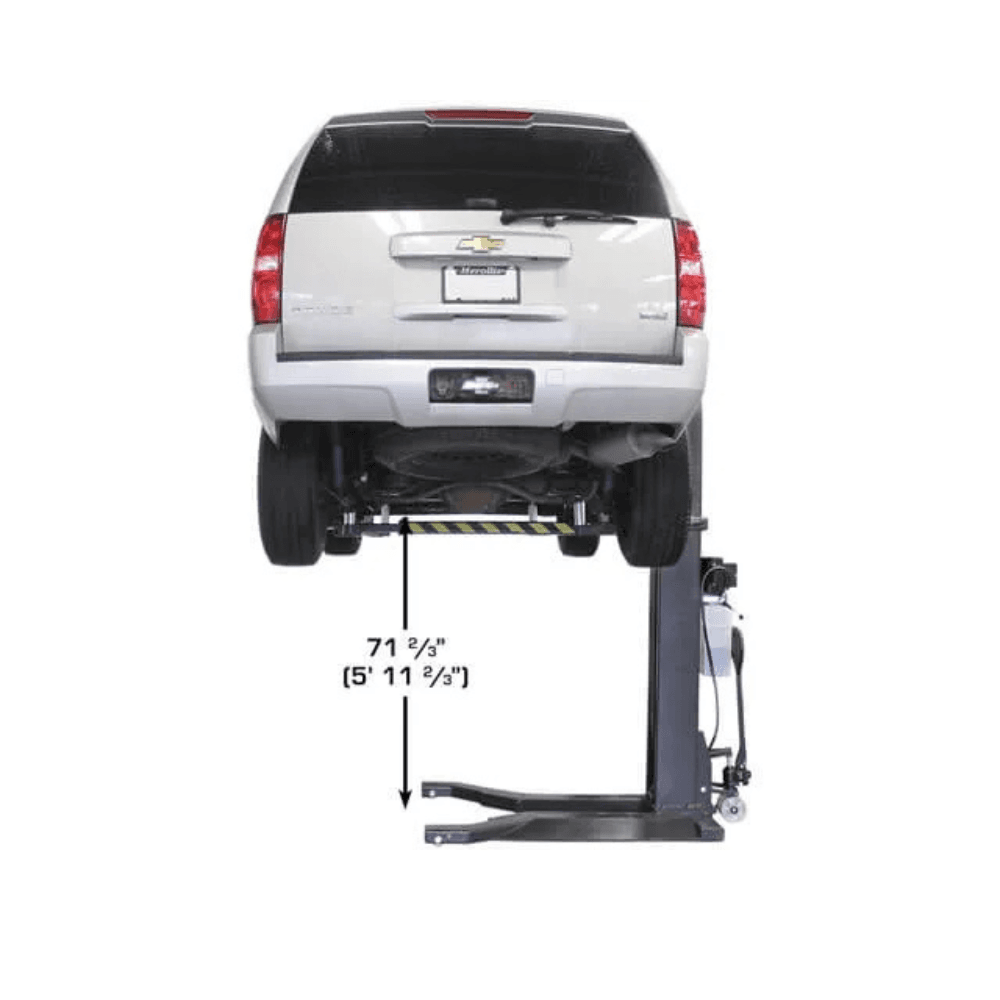

Max. Lifting Height (Without Truck Adapters)
71 2/3″ (5′ 11 2/3″)

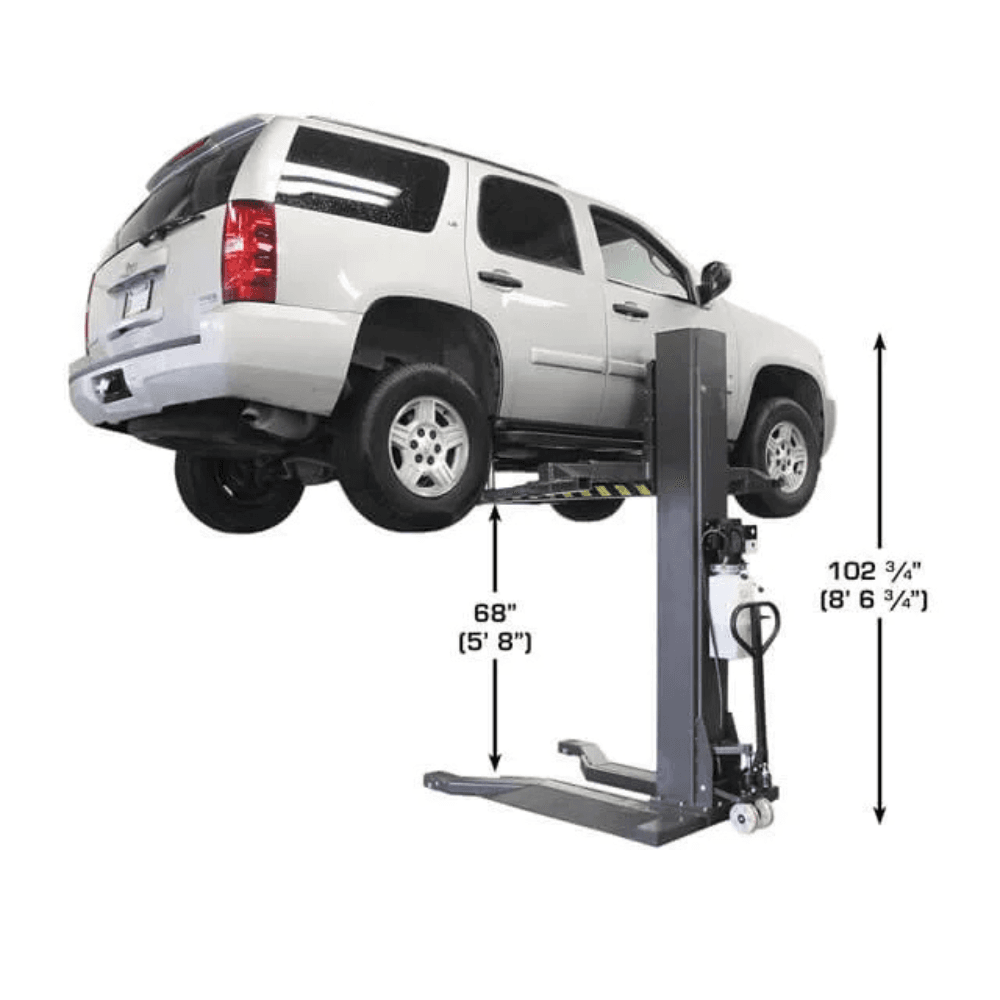

Max. Clearance
68″ (5′ 8″)

Minimum Height
5″

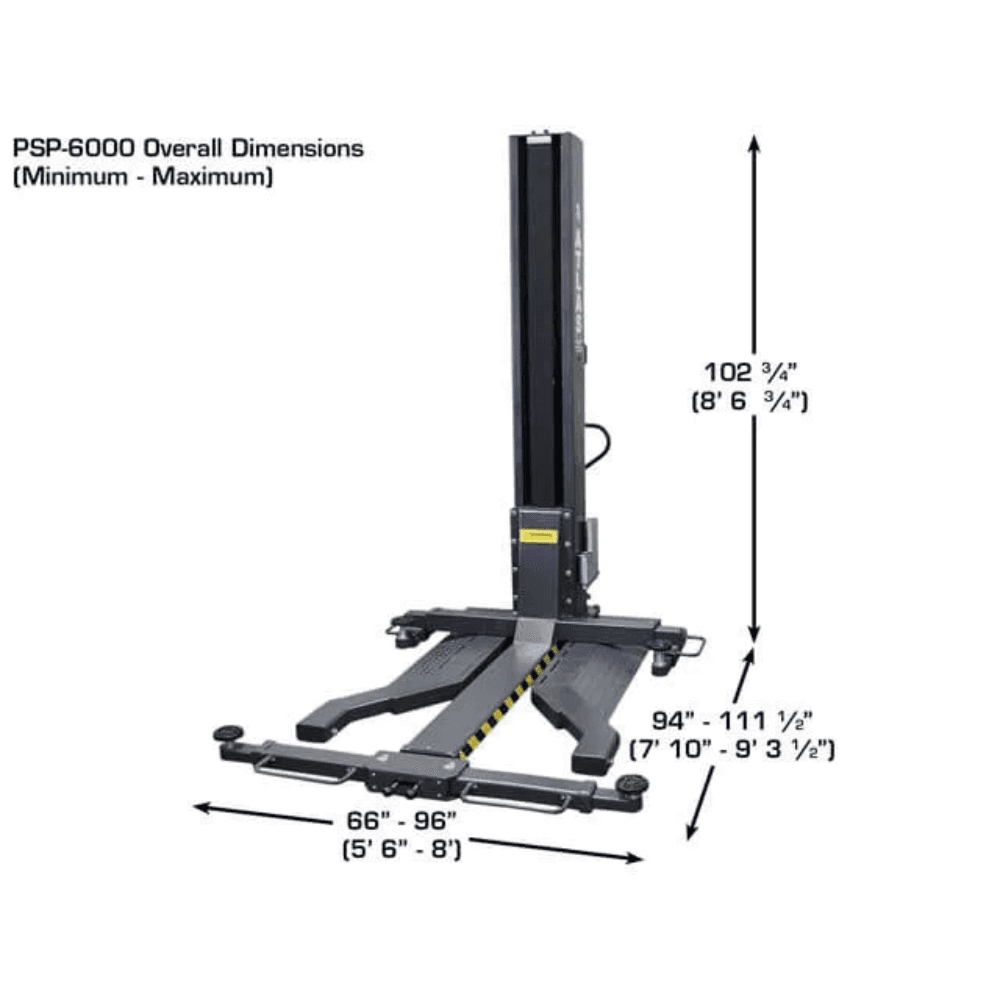

Overall Maximum Dimensions
111 1/2″ (L) x 96″ (W) x 102 3/4″ (H)

Column Size
10 1/2″ x 12 1/2″

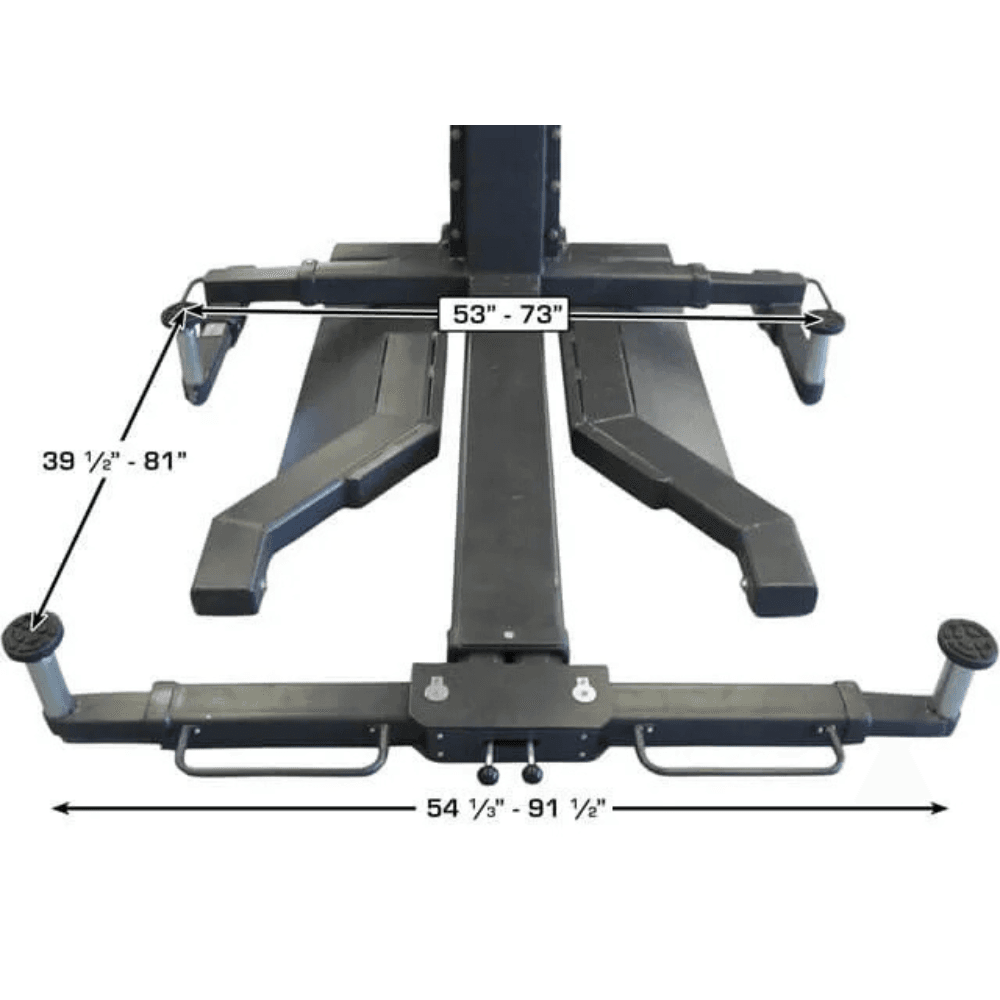

Distance Between Lifting Pads (Column Side to Offside)
39 1/2″ to 81″

Distance Between Lifting Pads (Column Side to Column Side)
53″ to 73″

Distance Between Lifting Pads (Offside Side to Offside)
54 1/3″ to 91 1/2″

Motor / Electric Requirement
110V, 30-amp breaker required

Oil Requirement
3-5 Gallons AW32 or AW46 (NOT INCLUDED)

Shipping Weight
1,900 lbs.

Adapter Heights
4 Each: 2.75″, 6”

Arm Hole / Adapter Peg Size
2”

Why Choose the Atlas PSP-6000?
The Atlas PSP-6000 is the perfect solution for garages and service shops needing a portable, space-saving vehicle lift. Its compact yet powerful design allows for easy storage and movement, while its high lifting capacity and built-in safety features ensure reliable operation.
For a durable, mobile, and efficient single-post lift, the Atlas PSP-6000 is a top-tier choice!
