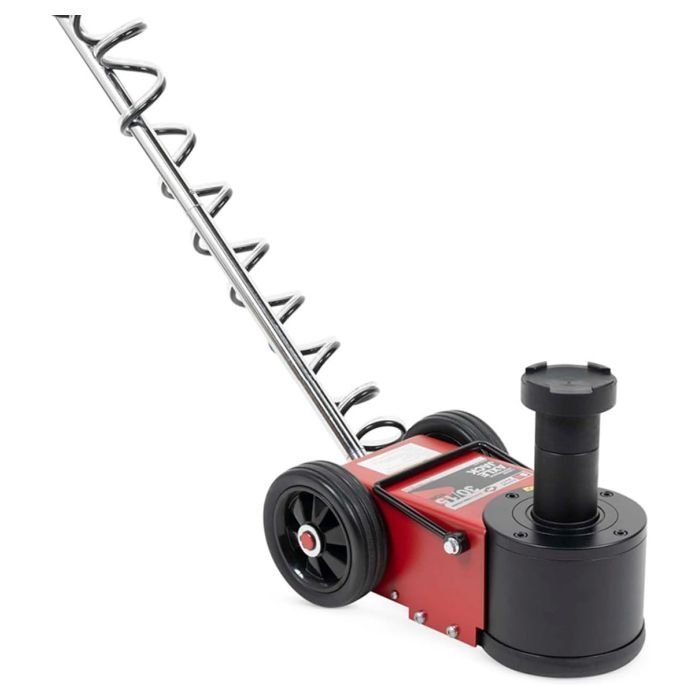

AFF 30-15-Ton 2-Stage Air Hydraulic Axle Jack
$1,233.00
Limited time offer available
Delivery in 7–10 Days • Fast Dispatch
The American Forge & Foundry’s 30-15-Ton 2-Stage Air Hydraulic Axle Jack is a super-duty axle jack built tough for the rigors of the heavy-duty trucking, agricultural, and fleet business. Features include industrial technology piston head seal design, extra long handle with three locking positions, integral descent metering, single piece base construction, double-polished chrome pistons, air-assisted lowering speed, and built-in overload safety valve. Includes saddle adapter and two extensions 1.75″ and 3″. The standard AFF (1) Year Warranty applies to over 300 service centers nationwide.
Features
The Extra Light Weight And Portability Makes This The Ideal Service Jack For Service Vehicles
2 Stages And Lifting Capacities Of 30 And 15 Ton Make This A Very Versatile Jack

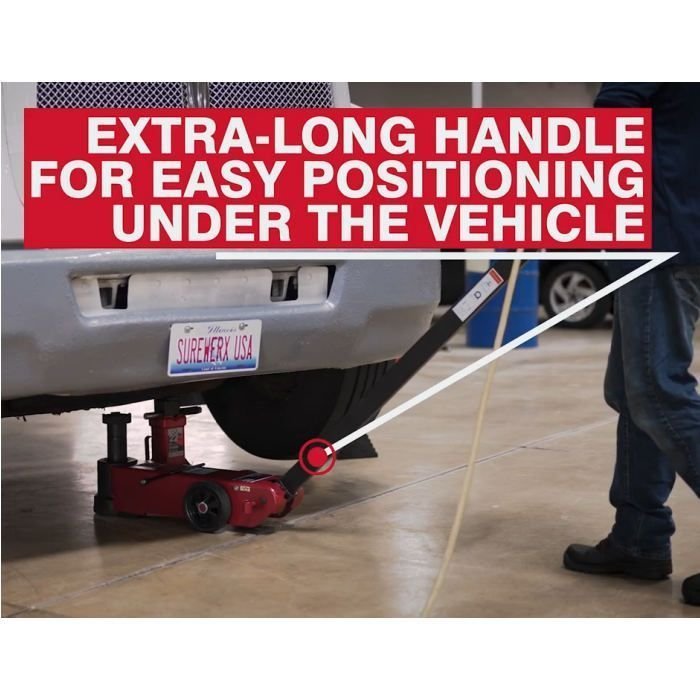

The Extra Long Removable Handle And Rugged Rear Wheels Make For Easy Positioning Of This Jack In Hard To Reach Places
An Integral Descent Metering Valve Maintains A Controlled And Safe Lowering Of The Load
The Piston Head Seal Design Is Borrowed From Industrial Technology Providing A Superior Low And High-Pressure Seal, Giving This Jack A Much Better Hold Under Severe Load Conditions
Double Polished Chromed Pistons Allow For Much Tighter Tolerances Which Reduces Oil Bypassing And Reduces Ram Scoring
Air-Assisted Lowering Speeds Up Ram Retraction
Built Overload Safety Valve Prevents Damage To Unit Due To Excessive Load

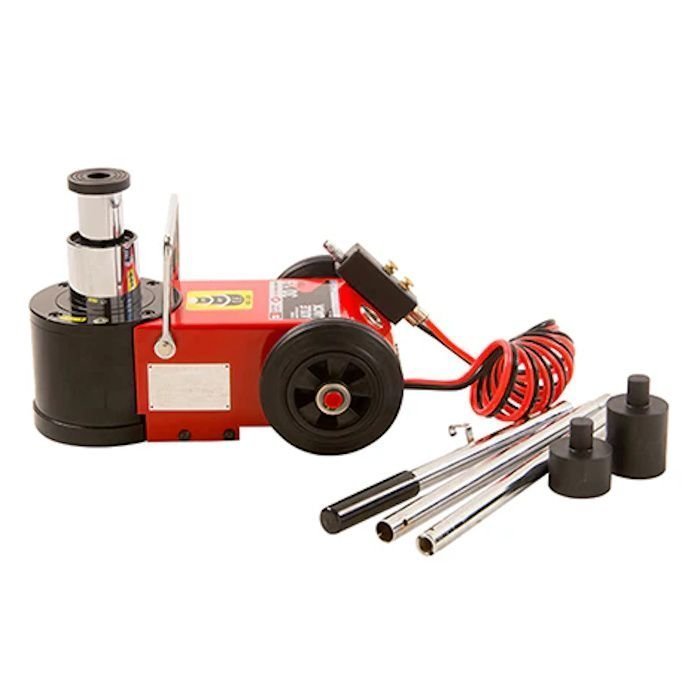

Comes With 2 Extensions 3″ (75mm) + 2″ (45mm) And Saddle Adapter
Units Are Tested To -13°F (-25°C) And +113°F (+45°C) As Well As Center Loading To Ensure A Long Life Under Even The Harshest Conditions
Specifications
30-Ton (1st Stage) Low Height: 5.92″ (150mm)
30-Ton (1st Stage) High Height: 8.82″ (224mm)
30-Ton (1st Stage) Ram Lift: 2.91″ (74mm)
15-Ton (2nd Stage) Low Height: 5.92″ (150mm)
15-Ton (2nd Stage) High Height: 11.5″ (292mm)
15-Ton (2nd Stage) Ram Lift: 5.59″ (142mm)
Working Air Pressure: 116 to 145PSI (0.8 to 1.0 Mpa)
Net Weight: 66 lbs. (30kg)
Shipping Weight: 77 lbs. (35kg)
Warranty: (3) Year Limited
