Features & Benefits
14,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall, Extra Wide & Extra Long
Diamond Plated Runways
Air Operated Single Point Lock Release (External Air Supply Required)
Lock Ladder Design
Double Lock Safety System
Powder Coat Finish
Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)
Runway Extensions Available (Sold Separately)
Mounting Hardware Included
220volt/1phase Electric Operation (Requires a 30amp Breaker)
5 yr Structural – 2 yr Hydraulic Warranty

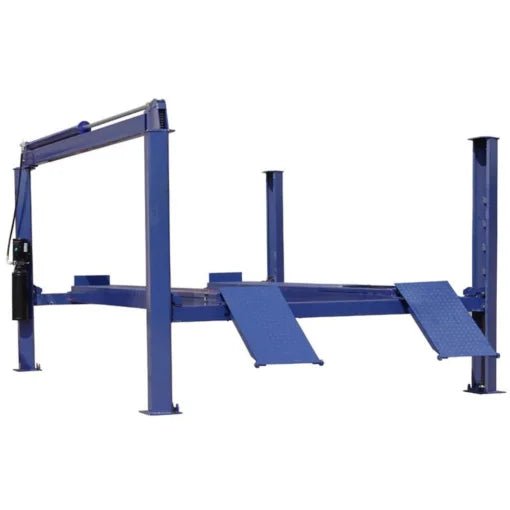

Atlas® ATTD-414 Specifications
Capacity
14,000 lb.
Lifting Height
80″ (6′ 8″)
Overall Width Of Columns (Without Motor)
130 7/8″ (10′ 10 7/8″)
Overall Width Of Columns (With Motor)
138 7/8″ (11′ 6 7/8″)
Overall Length With Approach Ramp
255″ (21′ 3″)
Length Between Columns
197 1/4″ (16′ 5 1/4″)
Runway Length
208 5/8″ (17′ 4 5/8″)
Runway Width
20″
Thickness Of Runway
8 3/4″
Width Between Runways
46 7/8″ (w/ Rail 44 3/8″)
Outside Runway To Outside Runway
86 7/8″ (7′ 2 7/8″)
Clearance Under Runways
71 1/4″ (5′ 11 1/4″)
Clearance Between Columns
116″ (9′ 8″)
Height Of Columns
91 1/8″ (7′ 7 1/8″)
Maximum Wheel Base
197″ (16′ 5″)
Drive Thru
102 1/8″ (8′ 6 1/8″)
Air Requirement
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended
Oil Requirement
3-5 GallonsAW32/AW46 (NOT INCLUDED)
