Features & Benefits
12,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall, Extra Wide & Extra Long
Built-In Slip Plates & Alignment Turntables Included
Multiple Positions for Turntable Placement
Runway Covers Included (when Turntables are Removed)
Air Operated Single Point Lock Release (External Air Supply Required)
Lock Ladder Design
Double Lock Safety System
Powder Coat Finish
Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)
Runway Extensions Available (Sold Separately)
Mounting Hardware Included
220volt/1phase Electric Operation (Requires a 30amp Breaker)
5 yr Structural – 2 yr Hydraulic Warranty

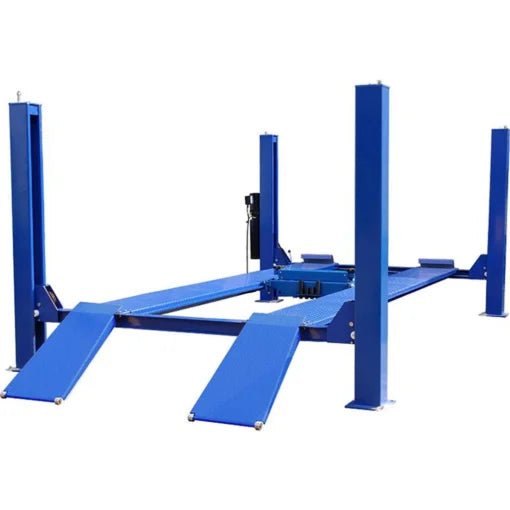

TUXEDO FP12K-K 12,000 LB Specifications
Capacity
12,000 lb.
Lifting Height
77 3/4″ (6′ 5 3/4″)
Overall Width Of Columns (Without Motor)
126 1/4″ (10′ 6 1/4″)
Overall Width Of Columns (With Motor)
135 1/4″ (11′ 3 1/4″)
Overall Length With Approach Ramp
236 1/2″ (19′ 8 1/2″)
Length Between Columns
183 1/4″ (15′ 3 1/4″)
Runway Length
194 1/2″ (16′ 2 1/2″)
Runway Width
20″
Thickness Of Runway
7 1/2″
Width Between Runways
43 1/4″ (w/ Rail 39 3/4″)
Outside Runway To Outside Runway
83 1/4″ (6′ 11 1/4″)
Clearance Under Runways
70 1/4″ (5′ 10 1/4″)
Clearance Between Columns
112 5/8″ (9′ 4 5/8″)
Height Of Columns
89 3/4″ (7′ 5 3/4″)
Maximum Wheel Base
185″ (15′ 5″)
Drive Thru
98″ (8′ 2″)
Air Requirement
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement
220 volt single (1) phase.A 30-amp breaker is recommended
Oil Requirement
3-5 GallonsAW32/AW46 (NOT INCLUDED)
