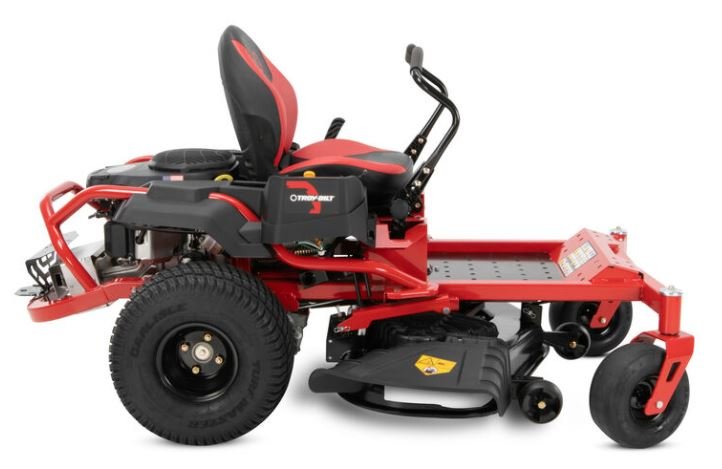

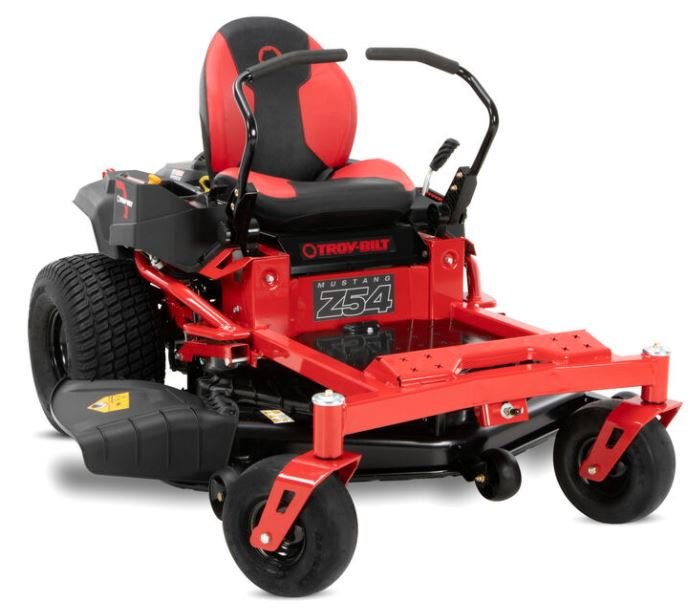

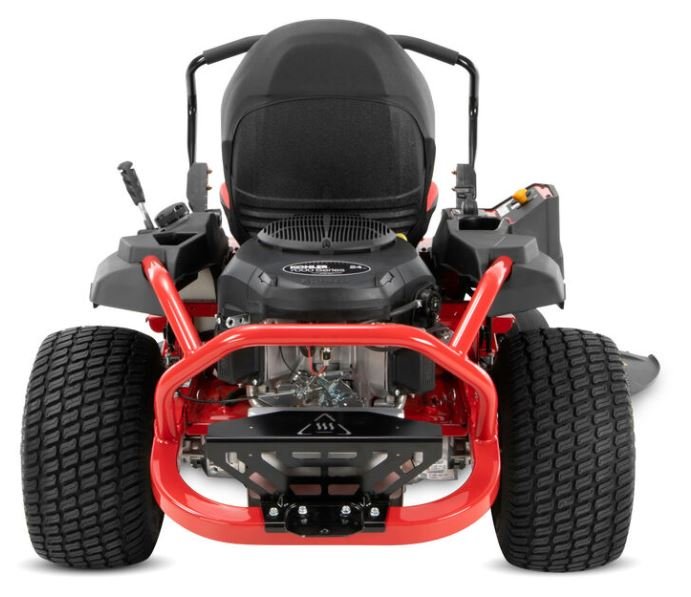

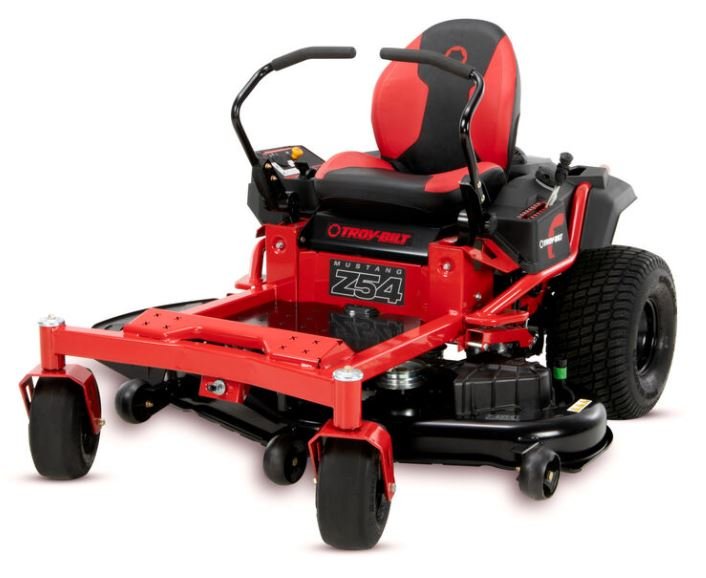

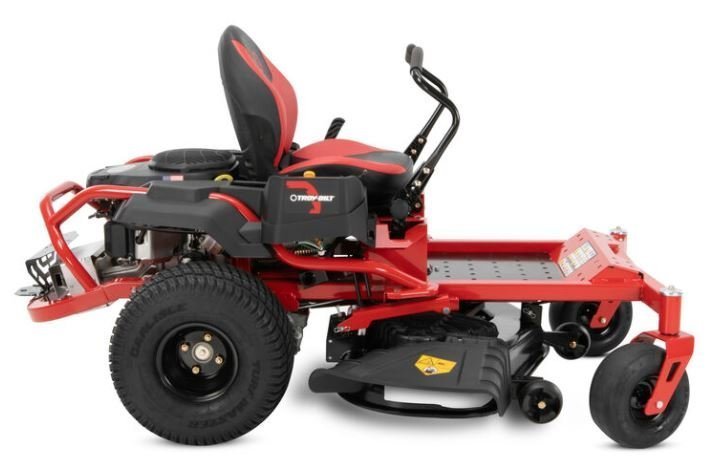

Mow large areas faster with the zero-turn capability of the Mustang Z54. The heavy-duty, fully welded frame provides dependable performance in rugged conditions and is backed by a limited lifetime warranty. You’ll get more comfort and support with the high back seat and padded lap bars.
Powerful 24HP twin-cylinder Kohler 7000 Series engine delivers quieter, more balanced performance with less vibration
Heavy-duty, full length, fully welded, 2″ tubular frame is designed to absorb impact, provide maximum stability and covered by a limited lifetime warranty
Large 54″ steel cutting deck reduces mowing time in large areas and the anti-scalp deck wheels prevent turf damage and deliver a clean, even cut
Dual hydrostatic transmission delivers true zero turn performance for quicker mow times and improved maneuverability
Ride in more comfort and reduced vibration with the high-back seat and foam grip steering controls
Engine
Engine BrandKohler®
Engine Model7000 Series
Engine Model NumberKT735
Engine Displacement725cc
Engine Output24HP
Starter TypeElectric
Fuel Tank Capacity3.5 gal. US (13.25 L)
CylindersTwin
Engine StartIgnition Key
Engine Oil Capacity2.0 qt. US (1.89 L)
LubricationFully pressurized
Charging System12 amp regulated
Fuel GaugeNo
GovernorMechanical
ChokeChoke-a-matic
Air FilterDual element
Oil FilterYes
Fuel DeliveryCarburetor
Battery
Battery230 CCA
Battery TypeStandard Lead-Acid
Battery Voltage12V
Drive System
TransmissionHydro-Gear EZT 2200
Forward Speed7 MPH
Reverse Speed2.5 MPH
Drive SystemHydrostatic
Cutting Deck
Deck Cutting Width54 in
Deck WashYes
Deck Material12-gauge steel
Deck Engagement (PTO)Electric
Deck ConstructionStamped
Blade(s)Three
Deck LiftFoot pedal
Cutting Height Range1″ – 4.5″
Anti-ScalpingThree gauge wheels
Deck Positions8
Warranty
Warranty3-year limited residential
Frame WarrantyLifetime Limited
Deck Shell Warranty3-year limited
Commercial WarrantyNo
Chassis
Frame2″ x 2″ tubular steel
Turning Radius0°
ROPSNo
Rear Tow HitchYes
Corrosion ProtectionYes
Controls
Cruise ControlNo
Steering ControlLap Bars
Comfort
Seat Type18″ high back
ArmrestsNo
Seat AdjustmentKnob
Wheels
Rear Tires20″x 10″- 8″
Front Tires11″x 6″-5″
Additional Specifications
Hour MeterNo
Headlight(s)No
Cup HolderYes
Operator Presence SystemYes
Parking BrakeLap Bar Integrated
Model Number17ARFACWA66
