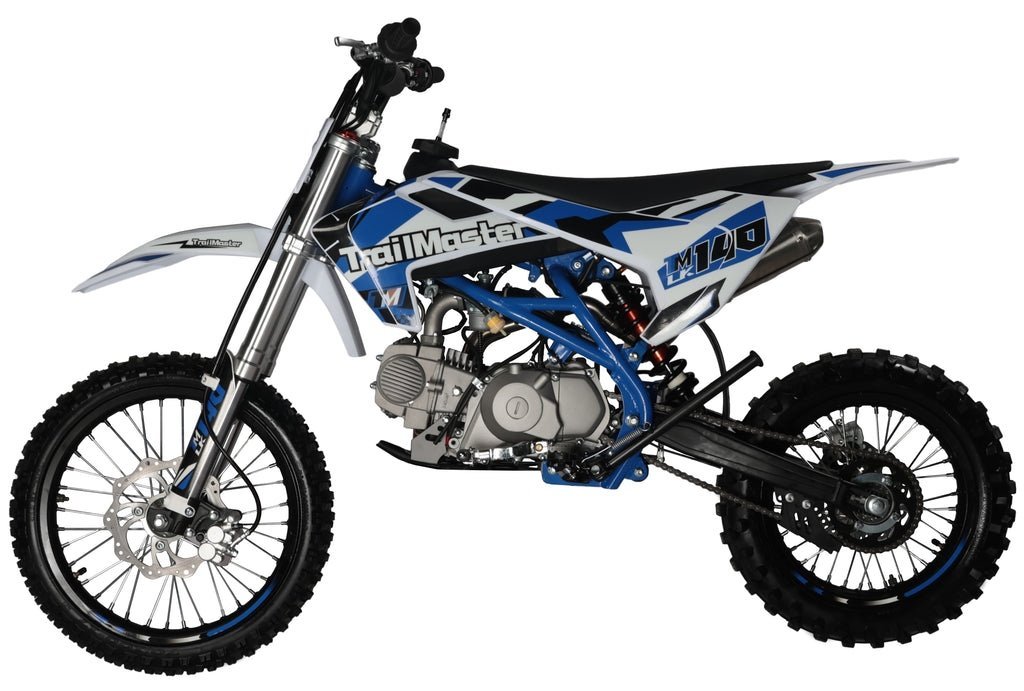

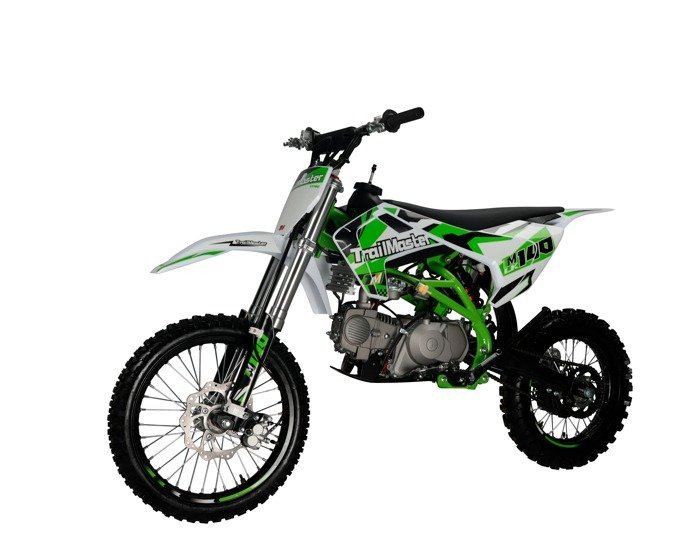

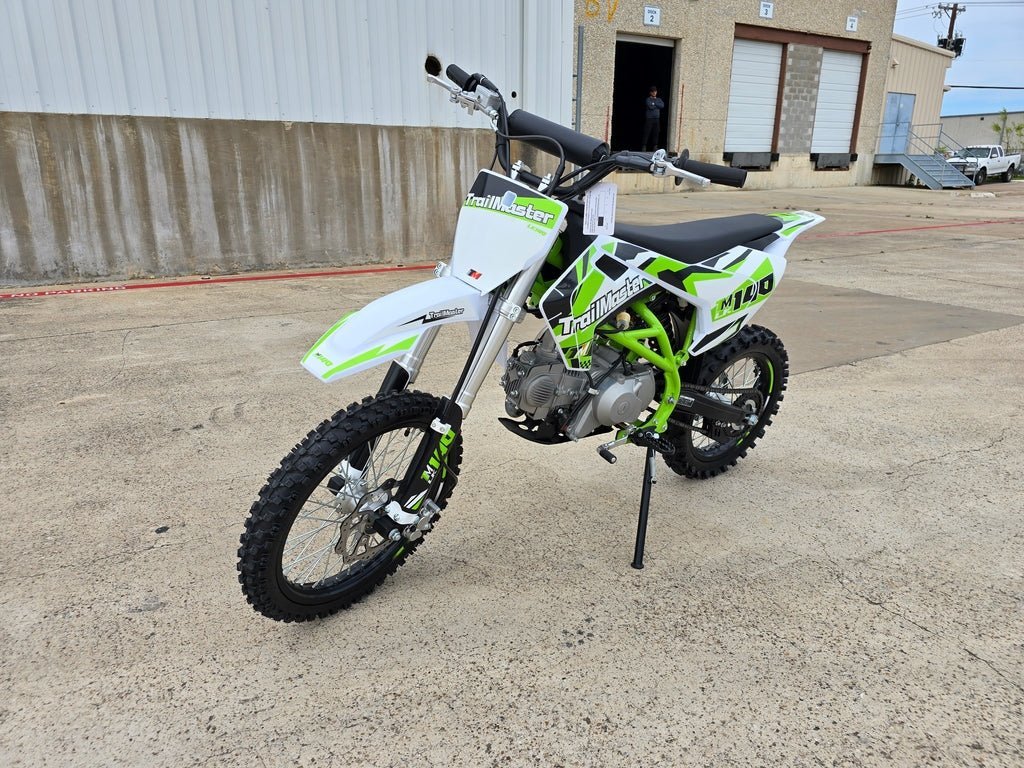

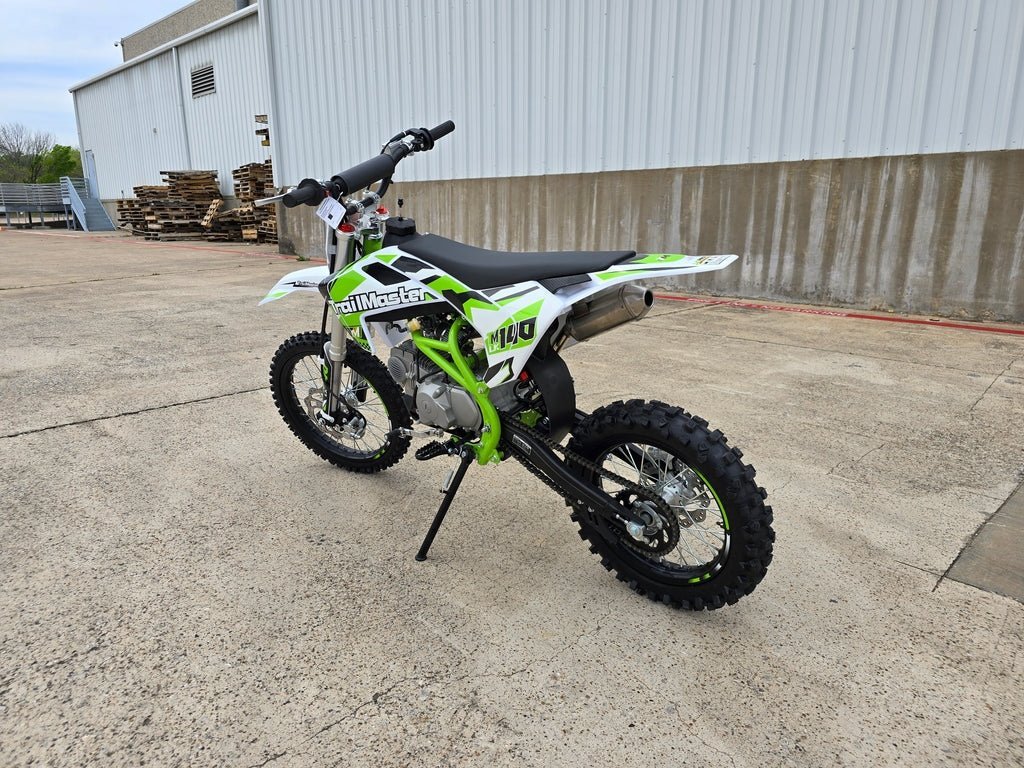

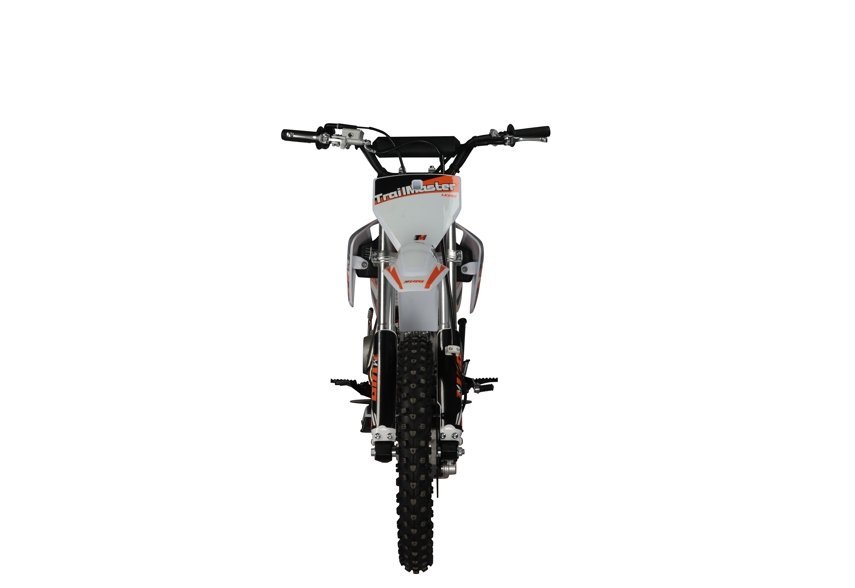

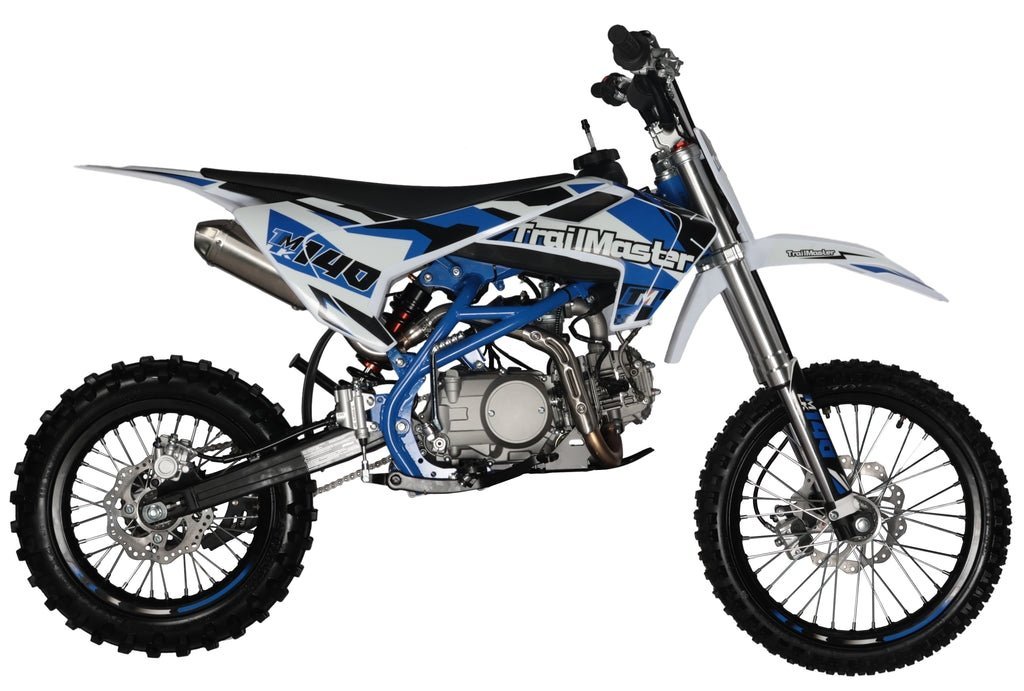

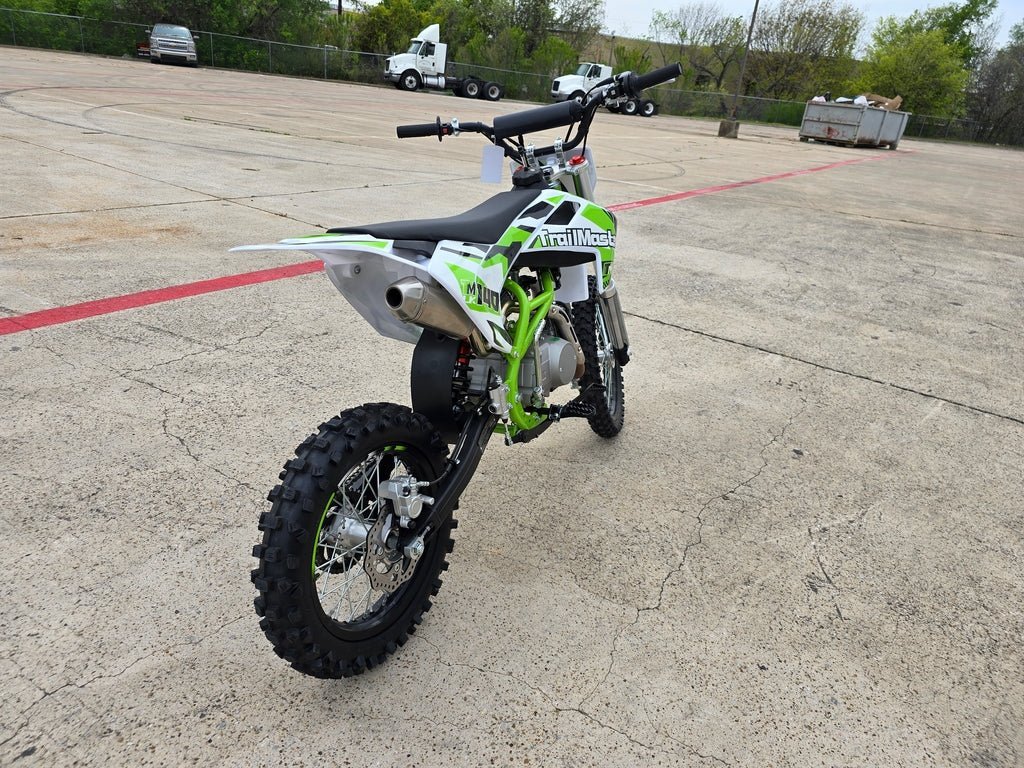

The all new Trailmaster LK line up of Dirt Bikes and now coming to the market. the first two, the LK125 amd LK140 are now shipping. This exciting new line up of true dirt bikes features alloy hubs, polished alloy foldable hand levers, polished alloy triple tree clamps and upgraded hardware. Over-sized front and rear vented disk brakes keep things cool for better stopping power.
The suspension features extended rear trailing arm, inverted front forks, alloy rims, alloy hubs, and Nitrogen Filled rear mono shock. To keep this sounding great the outstanding Yinxiang air cooled engine is equipped with a stainless steel muffler.
TECH SPECS
Engine System
Engine Type
Yinxiang 140cc,Single cylinder, four stroke , air-cooling /Oil-cooling
Displacement
140 ml
Max Power
6.8/7500 (1±1.5%)
Max Torque
9.7/5500（1±1.5%）
Compression Ratio
8.8:1
Shift Type
Four gear, non-circulate gear
Start Type
Electric / Kick Start
Ignition
CDI
Min. Fuel Consumpetion:
≤367g/kw.h
Minimum turning radius :
1900 mm
Lubricant Type #：
SF15W/40
Transmission:
Chain Drive
Size Data
Overall Size (L x W x H)
1780×740×1100 mm /69.42 x 28.86 x 42.9 Inch
Wheel Base
1210mm / 47.67 Inch
Seat Height
835mm / 32.89 Inch
Ground Clearance
340mm / 13.26 Inch
Fuel Capacity
6 L / 1.56 Gal.
Wheels
Alloy 17/ 14 Rims, Alloy Hubs
Tires
YUANXING FT: 70/100-17 – RR: 90/100-14
Frame/Suspension/Brake system
Frame
High quality Steel Frame
Front Fork
Inverted , non-Adjustable
Rear Shock
Alloy U&D connector,non-Adjustable
Upper and Lower Connecting Board
Alloy
Handle
Alloy and Foldable
Front Brake
Disc
Rear Brake
Disc
Exhaust
Stainless
Packing and Loading
Packing Size
1370*440*660 mm / 53.43*17.16*25.74 Inch
N.W/LBS
78 KGS / 171.6 LBS
G.W/LBS
103 KGS / 226.6 LBS
