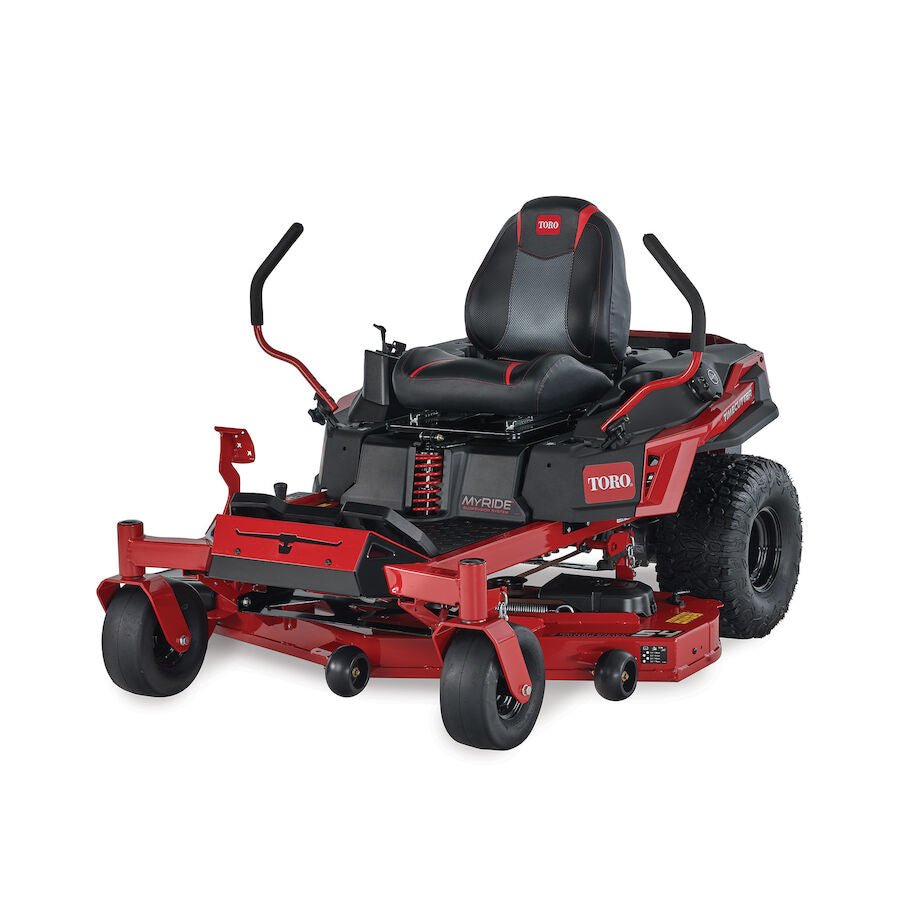

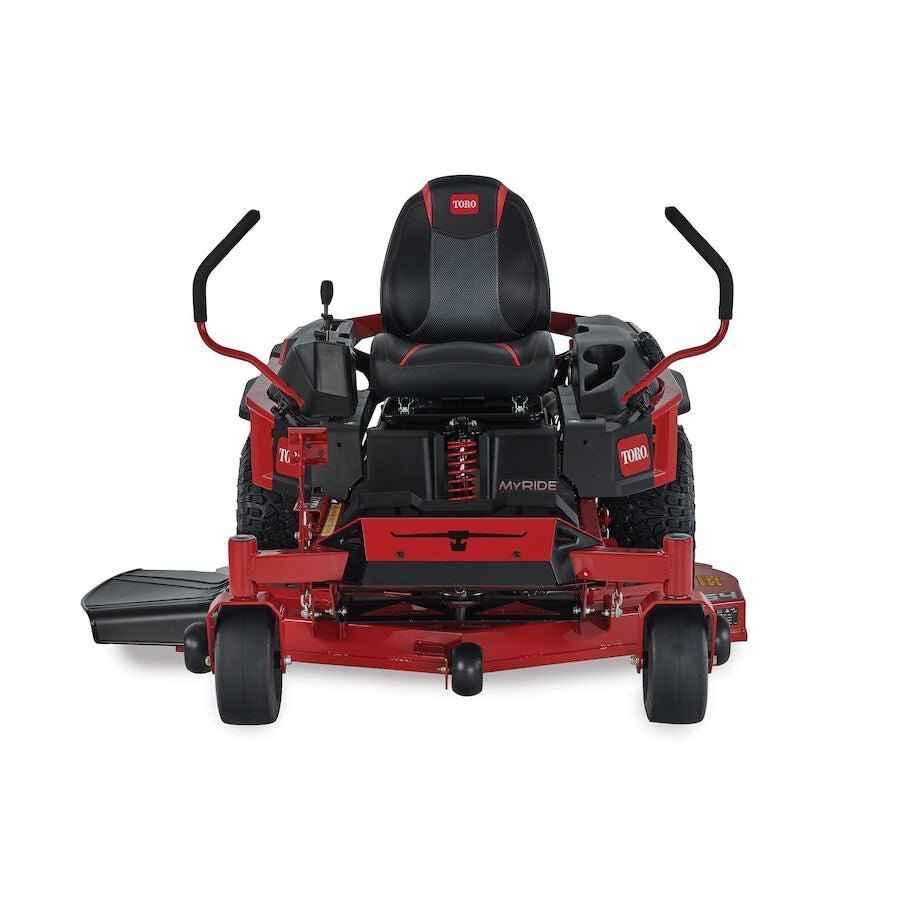

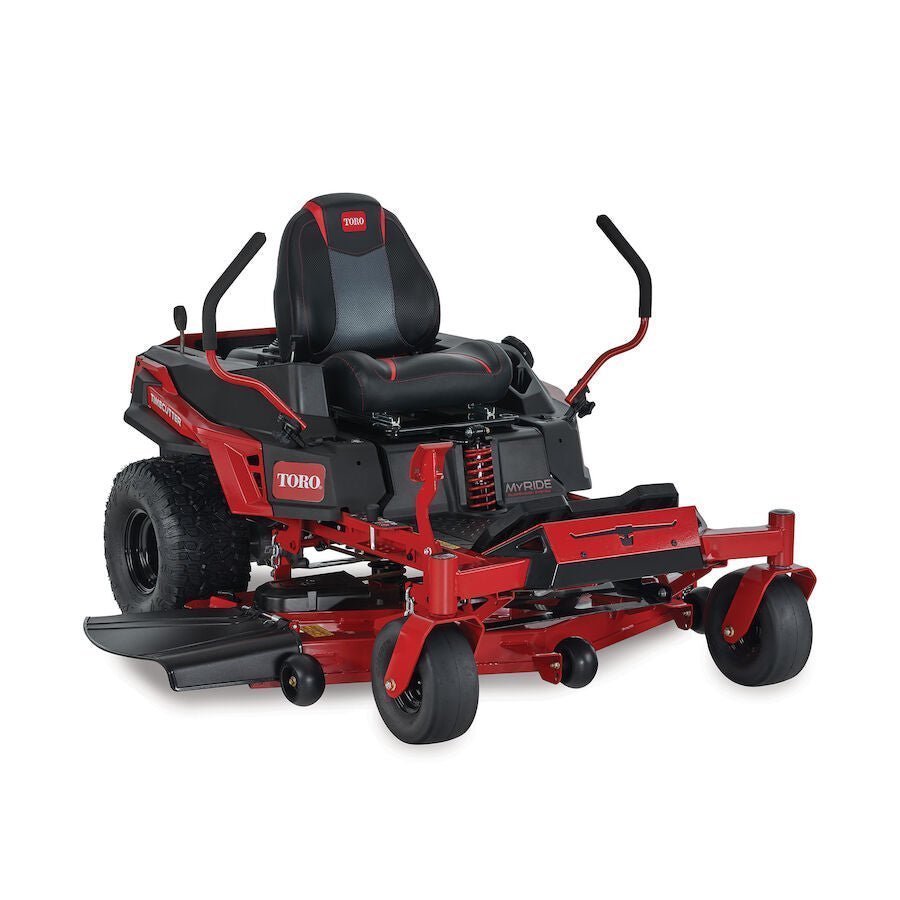

54 in. (137 cm) TimeCutter® Max MyRide® Zero Turn Mower
Featuring MyRIDE® Suspension System
Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
Over 100 years of Pro DNA course through the veins of every mower we build.
Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
Spray blocking fenders keep tire spray off your engine, and more importantly, you.
The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
Specifications
Air Filter
Standard Kawasaki Air Cleaner
Anti Scalp Wheels
3 Standard
Armrests
Optional (Not Included)
Bagger Capacity
79503 4.9 bushels (Not Included)
Blade Tip Speed
17,700 ft/min / 5,395 m/min
Box Dimensions
82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
CARB Compliant
Not CARB Compliant
Carrier Frame
3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires
12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic
Clutch
Electromagnetic
Comfort Platform
MyRIDE® Suspension System
Cooling System
Air Cooled
Crankshaft
1″ (25 mm) w/Steel Protector
Cup Holder
Standard
Cutter System
Steel Cutting Blade
Deck Design
10-Gauge steel IrongForged®
Deck Material
10 Gauge Steel
Deck Size
54 in / 137 cm
Discharge Chute
Side
Drive System
Hydrostatic
Drive Tires
20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)
Drive Type
Rear-Wheel Drive
Engine
23 hp Kawasaki FR691V 726cc
Engine Brand
Kawasaki
Engine Displacement (cc)
726 cc
Engine Horsepower
23.0 hp
Engine Power (kW)
17.2 kW
Foot Operated Height of Cut
Standard
Forward Ground/Transport Speed
Up to 7.0 mph / 11.2 kph
Forward Mowing Speed
Up to 7.0 mph / 11.2 kph
Frame
3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity
5 gal. / 18.9 L / 20 Qt.
Fuel Type
Gasoline
Greasable Bearings
Yes
Height of Cut
1.0 – 5.0 in. / 2.5 – 12.7 cm
Hitch Bracket
Standard
Hour Meter
Optional (Not Included)
Hydraulic Drive
Standard
Lighting
Optional (Not Included)
Number of Blades
3
Product Type
TimeCutter Max MyRide
Product Use
Residential
Recommended Oil Type
10W-30
Roll-Over Protection (ROPS)
Optional (Not Included)
Seat
19″ Gaming Style
Spindle Bearings
Maintenance-free
Spindle Housing
Cast-Aluminum
Start Type
Electric
Steering Controls
Twin Lever
Steering Dampeners
Standard Dampers
Terrain Type
Flat with Obstacles
Tires
12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear
Transmission
Dual Hydrostatic HG-EZT2200
Washout Port
Standard
Weight
684 lbs / 310.3 kg
Disclaimer
*23 HP gross (726 cc) at 3,300 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.†See retailer for complete warranty details.‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
