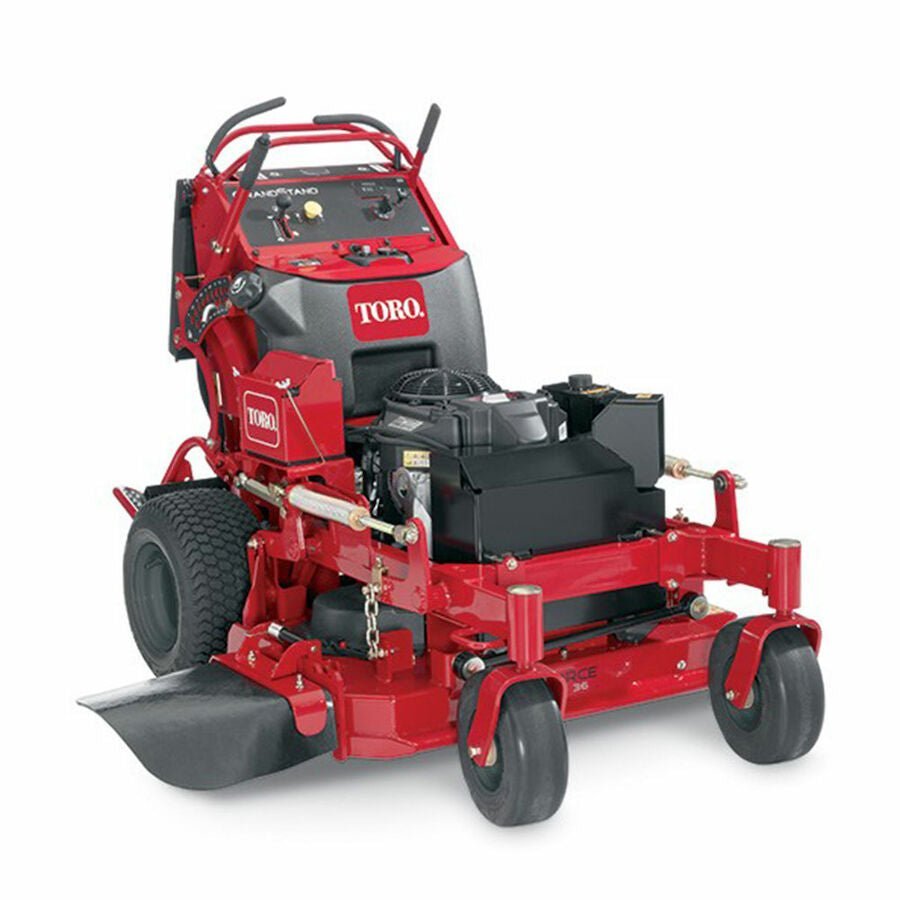

Toro GrandStand 74534 15hp Kawasaki FS Engine 36″ FAB Deck Mower (Local Pickup Only)

Toro GrandStand 74534 15hp Kawasaki FS Engine 36″ FAB Deck Mower (Local Pickup Only)

Foldable operator platform instantly converts the machine to a walk-behind.
Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
With hefty cast iron spindles including maintenance free bearings plus only annual grease points, there will be less need for routine maintenance. That means less time spent off your mower and more time generating profits with it.
Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Adjustable Discharge Baffle
Standard

Blade Tip Speed
18,500 ft/min / 5,638 m/min

Blades
0.204 in. (0.5 cm) heat-treated steel

Box Dimensions
77.25 in. x 49 in. x 52 in. x 196.2 cm x 124.5 cm x 132.1 cm

CARB Compliant
Not CARB Compliant

Carrier Frame
3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)

Caster Tires
11 in. x 4 in. – 5 in. (28 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic

Clutch
Electromagnetic

Comfort Platform
Foldable Operator Platform with Suspension

Controls
Twin lever

Deck Design
7-gauge 36″ (91 cm) TURBO FORCE® with bull-nose bumper

Deck Material
7 Gauge Steel

Deck Size
36 in / 91 cm

Discharge Chute
Rubber

Drive System
Pumps 10cc rev Wheel Motors 10 cir

Drive Tires
18 in. x 8.5 in. – 8 in. (46 cm x 22 cm – 20 cm)

Engine
15 hp* (11kW) Kawasaki® FS541V 603 cc

Engine Brand
Kawasaki

Engine Displacement (cc)
603 cc

Engine Horsepower
15.0 hp

Forward Ground/Transport Speed
Up to 8.0 mph / 12.8 kph

Front Bumper
Reinforced Bull-Nose

Fuel Capacity
7.8 gal. / 29.5 L / 31.2 Qt.

Fuel Type
Gasoline

Height of Cut
1.0 – 5.0 in. / 2.5 – 12.7 cm

Hour Meter
Standard

Hydraulic Fluid
Premium synthetic

Number of Blades
3

Product Type
Stand-On Mowers

Product Use
Commercial

Spindle Bearings
Maintenance-free

Spindle Housing
9.375 in / 23.8 cm Diameter Cast Iron

Start Type
Electric

Steering Controls
Twin Lever

Weight
837 lbs / 379.7 kg

Disclaimer
*The gross horsepower of these engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAEJ2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.
