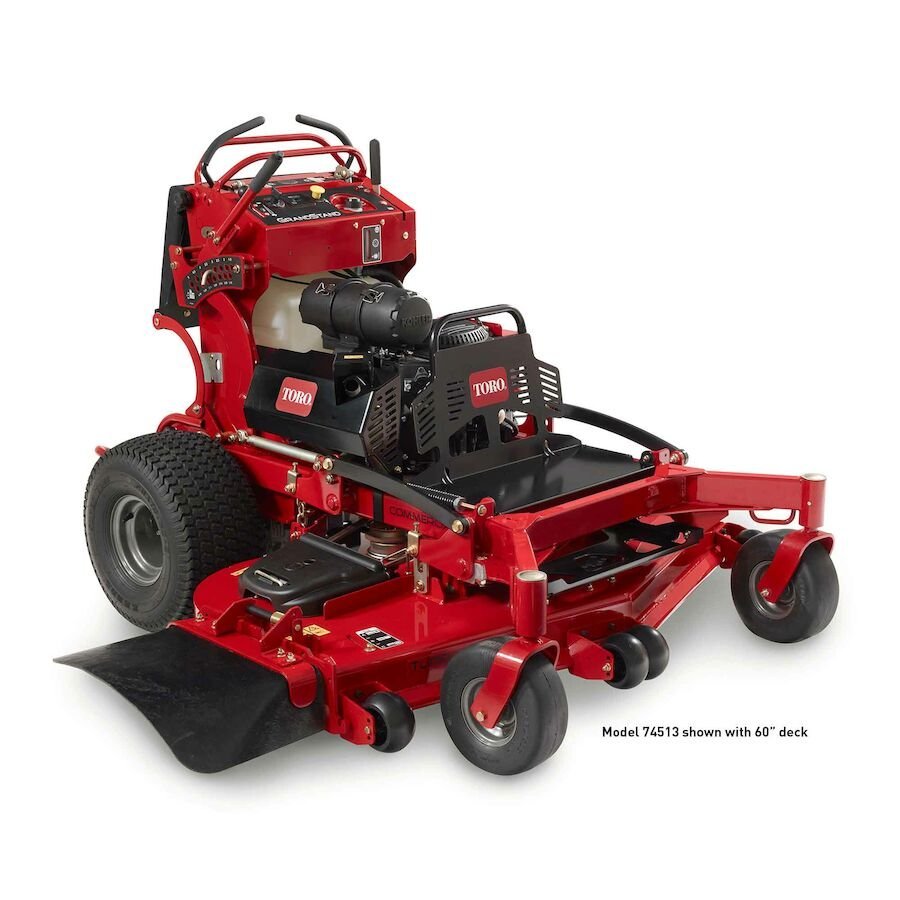

Toro GrandStand 72509 23.5hp Kawasaki FX Engine 60″ FAB Deck Mower (Local Pickup Only)

Toro GrandStand 72509 23.5hp Kawasaki FX Engine 60″ FAB Deck Mower (Local Pickup Only)

Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
Foldable operator platform instantly converts the machine to a walk-behind.
Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
A wide stance and optimal balance enhance hillside stability and control.
Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

Adjustable Discharge Baffle
Standard, Tools-Free

Air Filter
Heavy-Duty Canister Air Cleaner

Anti Scalp Wheels
Standard

Blade Tip Speed
18,500 ft/min / 5,638 m/min

Blades
0.204 in. (0.5 cm) heat-treated steel

Box Dimensions
90 in. x 70 in. x 52 in. / 228.6 cm x 117.8 cm x 132.1 cm

CARB Compliant
Not CARB Compliant

Carrier Frame
3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)

Caster Tires
11 in. x 4 in. – 5 in. (27.9 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic

Clutch
Electromagnetic

Comfort Platform
Foldable Operator Platform with Suspension

Controls
Twin lever

Deck Design
7-gauge 60″ (152.4 cm) TURBO FORCE® w/bull-nose bumper

Deck Material
7 Gauge Steel

Deck Size
60 in / 152 cm

Discharge Chute
Rubber

Drive System
Unitized Pumps 10cc rev Wheel Motors 10 cir

Drive Tires
20 in. x 10.5 in. – 8 in. (50.8 cm x 26.7 cm – 20.3 cm)

Engine
23.5 hp* Kawasaki FX730V 726 cc

Engine Brand
Kawasaki

Engine Displacement (cc)
726 cc

Engine Horsepower
23.5 hp

Forward Ground/Transport Speed
Up to 10.0 mph / 16.0 kph

Front Bumper
Reinforced Bull-Nose

Fuel Capacity
10.5 gal. / 39.7 L / 42 Qt.

Fuel Type
Gasoline

Height of Cut
1.5 – 5.0 in. / 3.8 – 12.7 cm

Hour Meter
Standard

Hydraulic Fluid
Premium synthetic

Product Type
Stand-On Mowers

Product Use
Commercial

Spindle Bearings
Maintenance-free

Spindle Housing
9 in / 22.9 cm Diameter Cast Aluminum

Start Type
Electric

Steering Controls
Twin Lever

Weight
960 lbs / 435.4 kg

Disclaimer
*23.5 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
