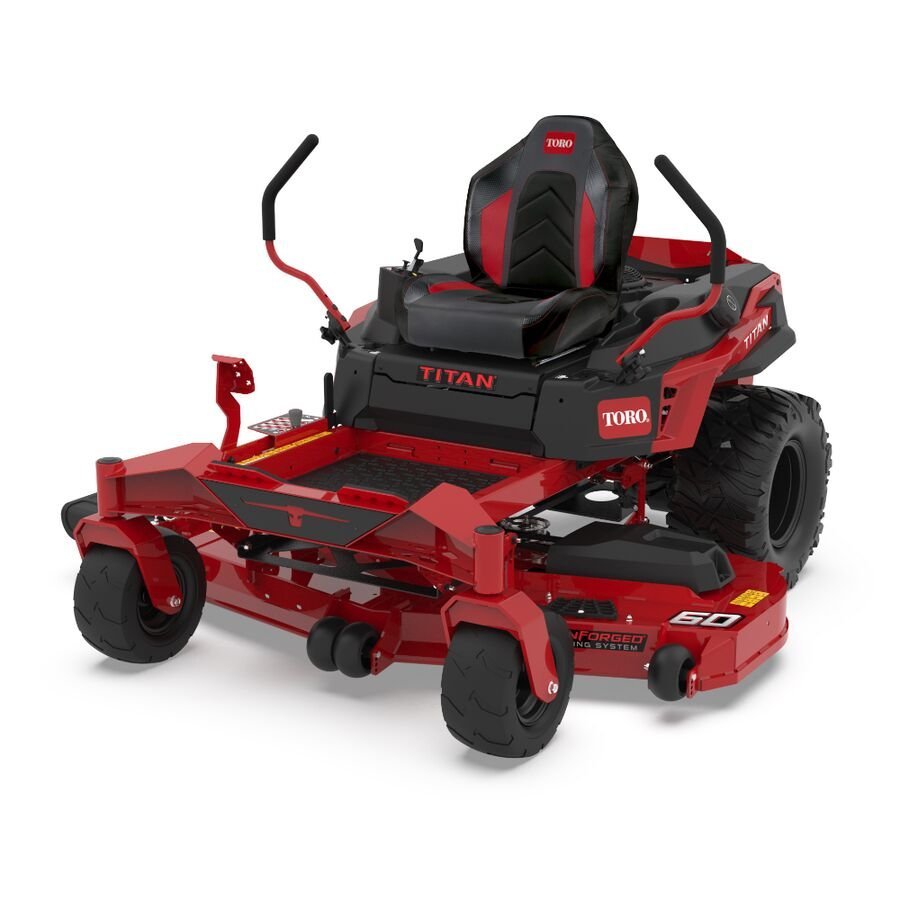

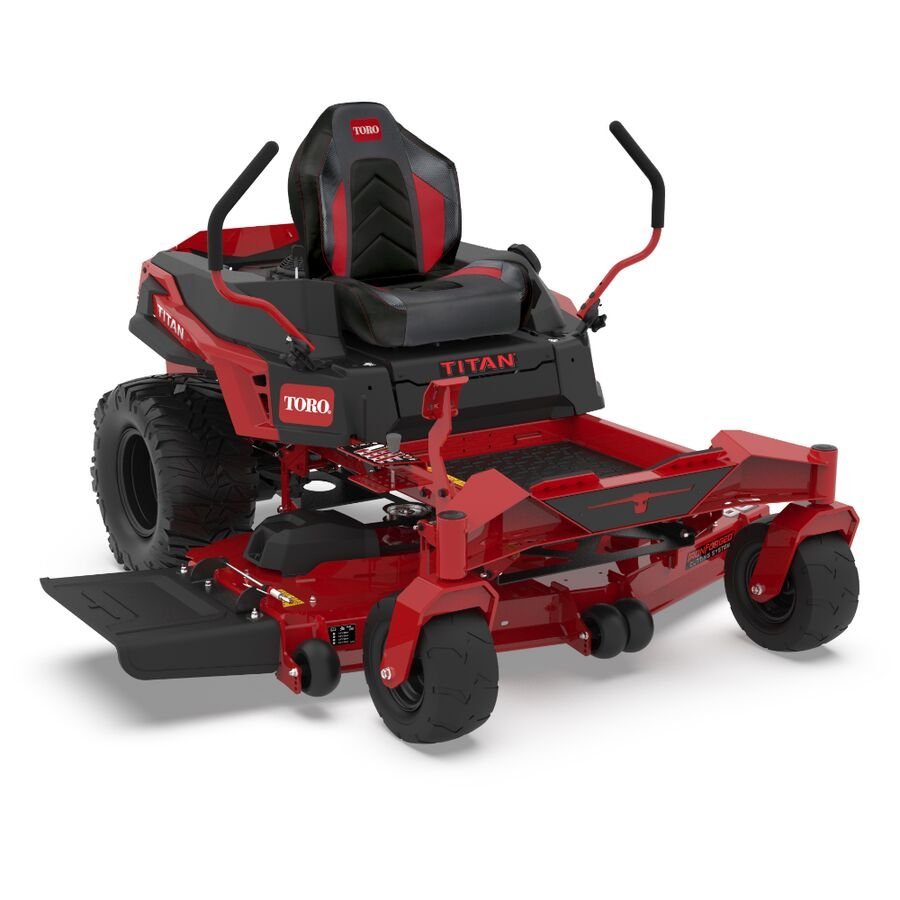

Toro 76605 TITAN Z-Turn Mower 24hp Kawasaki V-Twin w/60″ Fabricated Deck

Toro 76605 TITAN Z-Turn Mower 24hp Kawasaki V-Twin w/60″ Fabricated Deck

The rubber discharge chute flexes without busting up your landscaping or your ride.
Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
Massive 22″ rear tires feature aggressive treads meant to bring Mother Nature to her knees.
Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
The gaming-style seat gives you big time support exactly where you need it.
Built with a commercial-style I-beam front end for extreme durability and strength.
Spray blocking fenders keep tire spray off your engine, and more importantly, you.
Its gigantic engine delivers mega power so you can absolutely dominate nature’s worst.
A cast aluminum stomp pad helps you scrape your boots, get your grip, step up and let ‘er rip.
The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more

Specifications

Air Filter
Kawasaki Standard Air Cleaner

Anti Scalp Wheels
4 Standard

Armrests
Optional

Blade Design
0.164 in. / 0.417 cm Steel with Blade Stiffner

Blade Tip Speed
18,908 ft/min / 5,763 m/min

Box Dimensions
91 in. x 70.3 in. x 52 in. / 178.6 cm x 132.1 cm x 231.1 cm

CARB Compliant
Not CARB Compliant

Carrier Frame
3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel

Caster Tires
13 in. x 6.5 in. – 6 in. (33 cm x 16.5 cm – 15.2 cm) Pneumatic

Clutch
Electromagnetic

Comfort Platform
Standard Suspension

Cooling System
Air Cooled

Crankshaft
1″ (25 mm) w/Steel Protector

Cup Holder
Standard

Deck Design
10-Gauge Steel IronForged® with Fully Weld Grade 50 Steel Bumper

Deck Material
10 Gauge Steel

Deck Size
60 in / 152 cm

Discharge Chute
Rubber

Drive System
Hydrostatic

Drive Tires
22 in. x 11 in. (55.8 cm x 27.9 cm)

Drive Type
Rear-Wheel Drive

Engine
24 hp Kawasaki FR730 726cc

Engine Brand
Kawasaki

Engine Displacement (cc)
726 cc

Engine Horsepower
24.0 hp

Engine Power (kW)
17.9 kW

Foot Operated Height of Cut
Standard

Forward Ground/Transport Speed
Up to 8.5 mph / 13.6 kph

Forward Mowing Speed
Up to 8.5 mph / 13.6 kph

Frame
3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing

Front Bumper
Reinforced Bull-Nose

Fuel Capacity
5 gal. / 18.9 L / 20 Qt.

Fuel Type
Gasoline

Height of Cut
1.5 – 5.0 in. / 3.8 – 12.7 cm

Hitch Bracket
Standard

Number of Blades
3

Product Type
TITAN

Product Use
Residential

Recommended Oil Type
10W-30

Roll-Over Protection System (ROPS)
Optional

Seat
20″ Gaming Style

Spindle Housing
Cast-Aluminum

Start Type
Electric

Steering Controls
Twin Lever

Steering Dampeners
Standard Dampers

Terrain Type
Flat with Obstacles

Tires
13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 22 in. x 11 in. (55.8 cm x 27.9 cm) Rear

Transmission
Dual hydrostatic HG ZT2800

Weight
845 lbs / 383.3 kg

Disclaimer
*24 HP gross (725 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower. †See retailer for warranty details. ‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
