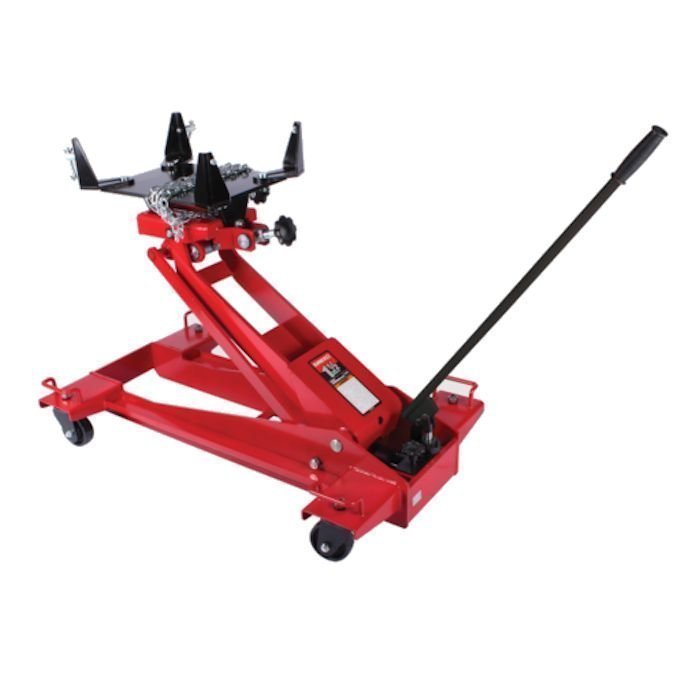

The Sunex Tools Low-Profile Transmission Jack allows a single technician to remove, move, or install heavy truck transmissions. The wide chassis distributes the load safely and keeps the transmission stable. The universal saddle bracket is adjustable in four directions of tilt that allows for easy positioning of the transmission. Overload and bypass safety valves prevent overload of the jack and over extension of the ram. Pump handle rotates 360° for operation from any direction and the release valve allows for slow controlled lowering.
Features
Removal, Installation, and Moving of Heavy Truck Transmissions
Wide Chassis for Load Distribution and Stability
Universal Adjustable Saddle with Four Brackets
Two Safety Chains and Adjustment Hardware
Overload and Bypass Safety Valve Prevent Overload and Over Extension
Controlled Lowering with Release Valve
Pump Handle Rotates 360°
Four Grab Handles for Repositioning
Four 4″ Ball Bearing Swivel Casters
Integrated Chassis Trays Hold Tools and Hardware
Specifications
Capacity: 1.5 Ton 3,000 lbs.
Max Height: 36.62″
Min Height: 8.7″
Travel: 28″
Saddle Tilt Fore and Aft: 10° by 10°
Saddle Tilt Side to Side Aft: 10° by 10°
Base Mounting Area (in.): 43.5″ x 26″
Chassis Length: 43.5″
Overall Width: 25.7″
Shipping Dimensions: 60″ x 38.25″ × 24″
Weight: 337 lbs.
Warranty: 1 Year
