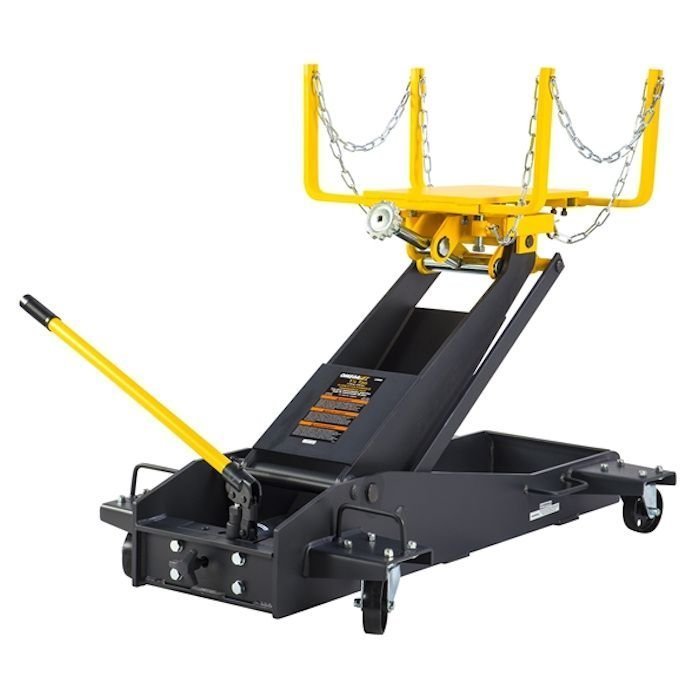

The Omega 43000 Low Profile Transmission Jack has a 1-1/2 Ton capacity. Saddle is fully adjustable and can tilt side to side / front to back to allow for precise alignment of the automobile transmission to allow you to bolt it back on easily with minimal effort.

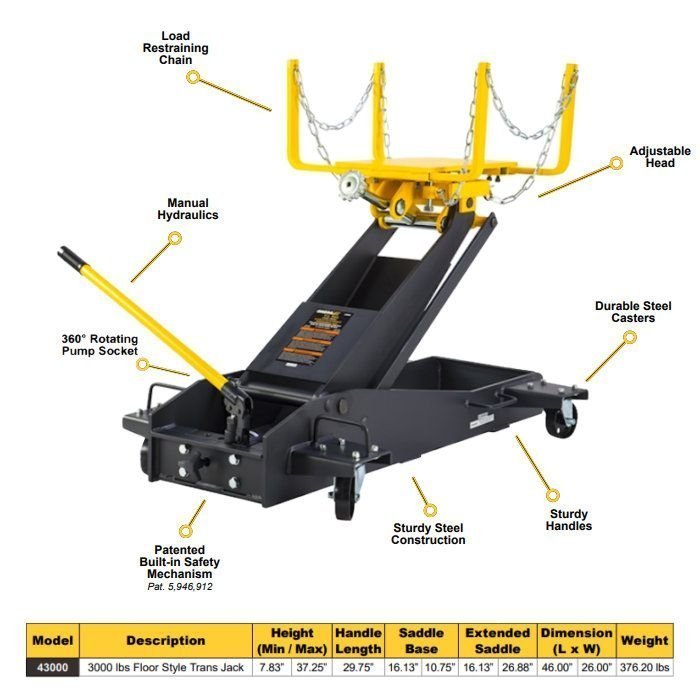

Features
The Adjustable Head Can Be Tilted Forward, Backward And Side To Side For Optimum Alignment Of Transmission Bolt Patterns And Pins
Hydraulic System Is Protected From Internal Damage By A Patented By-Pass Mechanism
Rugged Steel Wheels And Full Swivel Ball Bearing Casters
U.S. Patented Built-In By-Pass Device Protects Hydraulic System From Overpumping Damage
Multi-Adjustment Knobs Ensure That Transmission Cradle Is Always At The Right Angle To Position And Accept Any Load
Load-Restraining Chain Is Vital For Raising And Lowering Safety
Four Wheel Casters Allow Easy Movement, Positioning Of Transmission Jack
Specifications
Lifting Capacity: 3,000 lbs.
Min. Height: 7-7/8″
Max. Height: 37-1/4″
Handle Length: 29-1/2″
Saddle Base: 15-1/2″ x 13-1/4″
Expanded Saddle Area Max.: 24-7/8″ x 19″
Dimensions (L X W): 46-3/4″ x 25-5/8″
Weight: 364 lbs.
Warranty: (1) Year Limited
