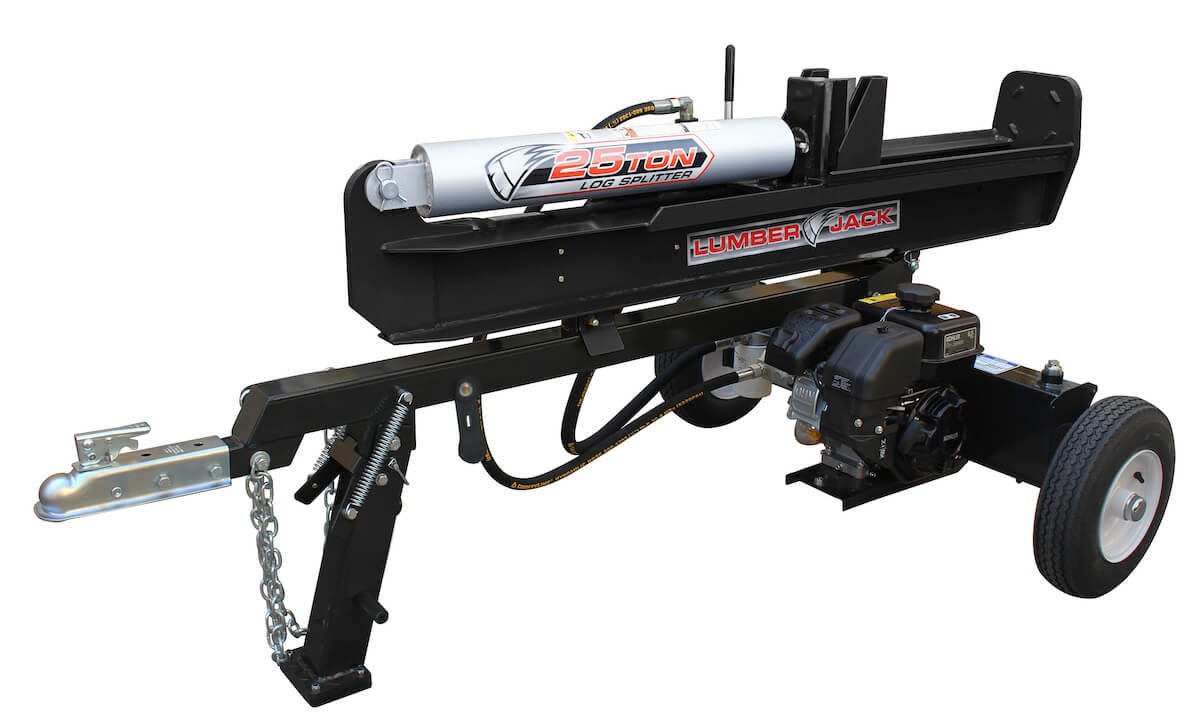

Lumber Jack™ log splitters are available in a range of sizes to suit any sized project. Each splitter is equipped with a trailer hitch for easy towing. Capable of splitting rounds in both horizontal and vertical positions, our 25-ton log splitter boasts a hasty 11.5 second cycle time and time-saving automatic cylinder and valve return for quickly and safely reducing hardwood or softwood rounds to firewood. The 25-ton log splitter has a hardened steel eight inch wedge and built-in log cradle for simpler splitting. Powered by a 196 cubic centimeter 6.5 horse power Kohler® engine and a 6.5 gallon hydraulic capacity, our 25-ton log splitter will outperform and outlast the competition.
Specifications
Model: YTL-590-500
Splitting Force: 25 tons

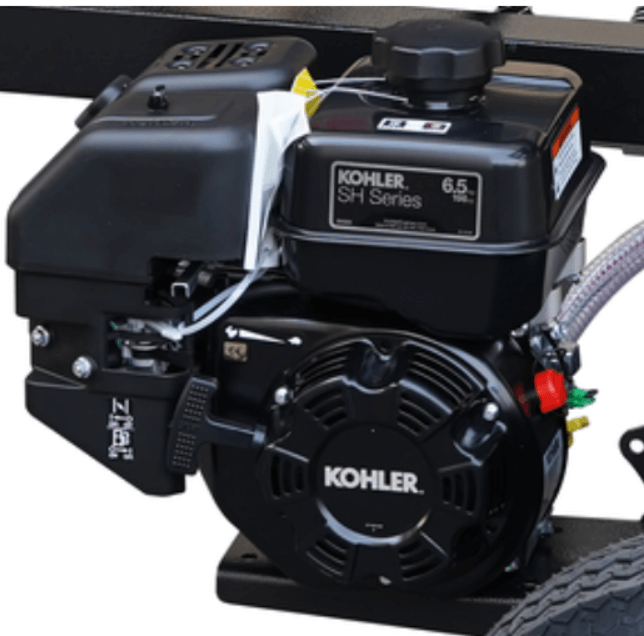

Engine: Kohler 196cc EPA & CARB
Maximum Log Length: 26″
Operating Position: horizontal or vertical
Cylinder: 4-1/8″ diameter x 24-1/2″ stroke
Gear Pump: 2-stage, 14 GPM
Hydraulic Capacity: 4-gallon max

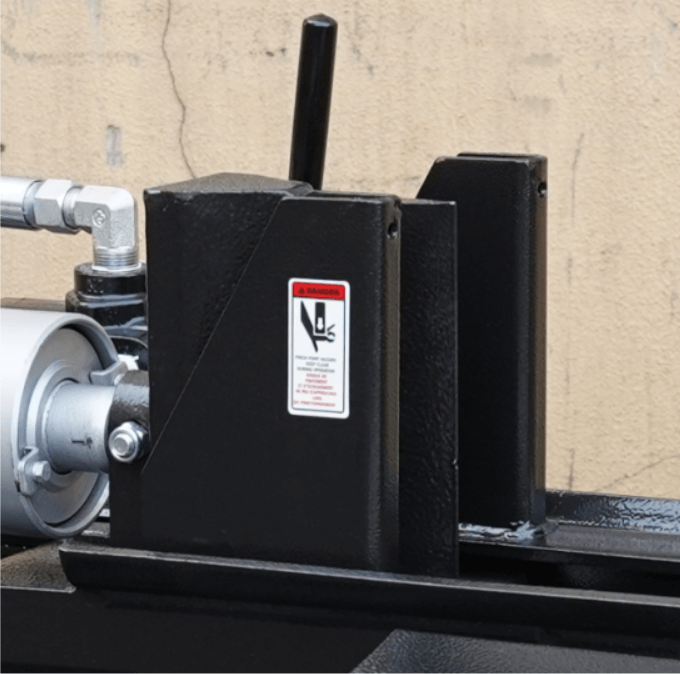

Wedge Height: 8″
Cycle Time: 11.5 seconds

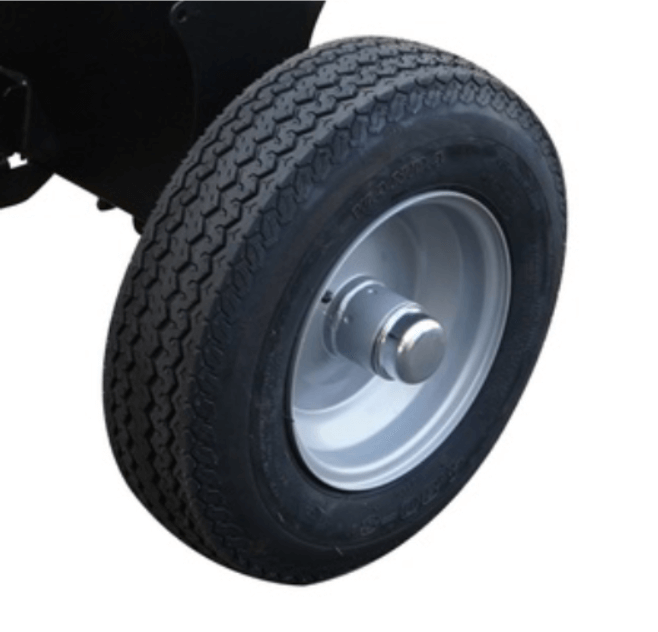

Wheels: 16″ pneumatic DOT certified
Max Towing Speed: 45 MPH
Documentation
Official Product Manual
Warranty Details
