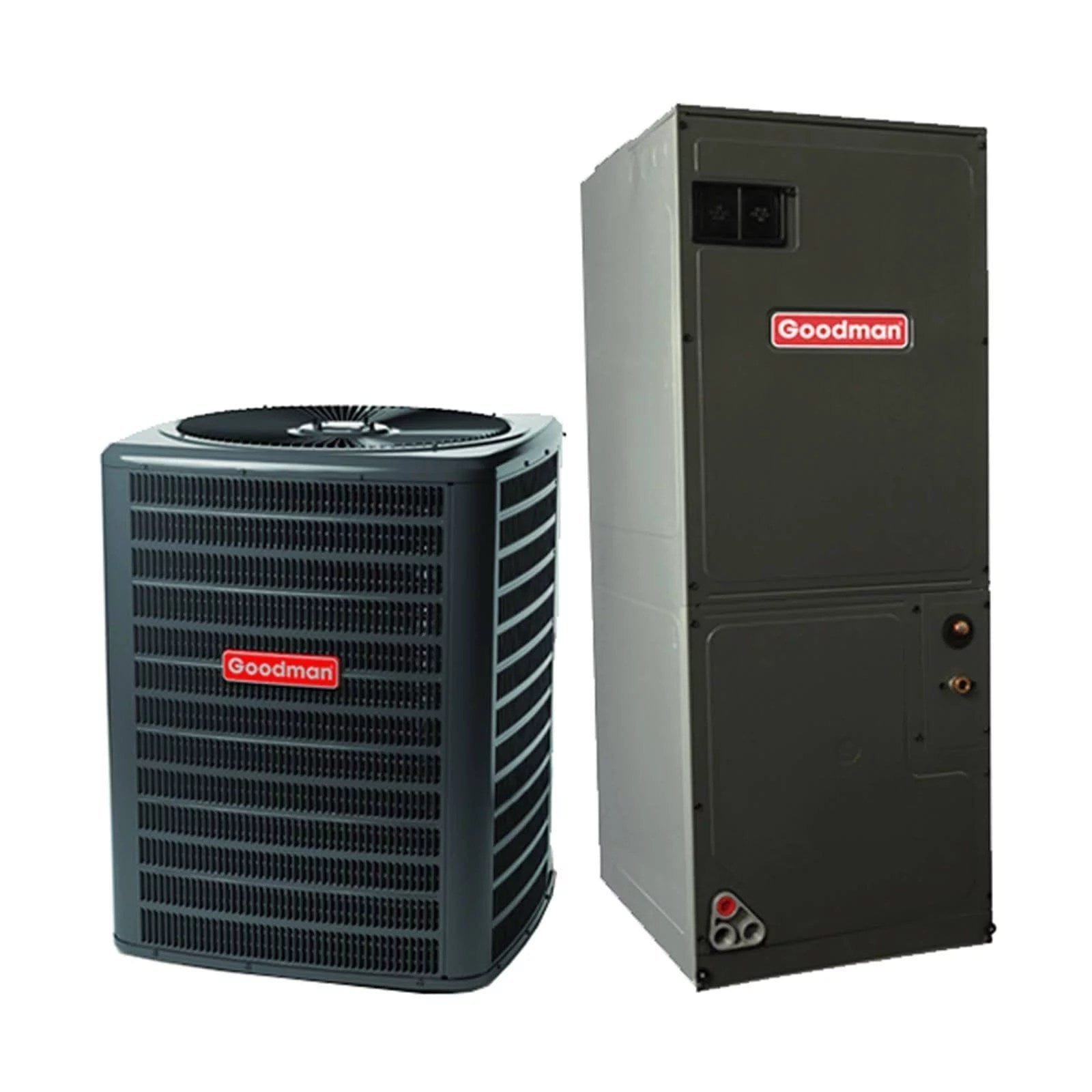

The Goodman GSZ14 Heat Pump will provide you with reliable cooling and heating at money-saving energy efficiency levels as compared to lower SEER heat pump units. Your Goodman air conditioner starts with an energy-efficient compressor, which operates in tandem with our high-efficiency coil. The coil is made of rifled refrigeration-grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. These high-quality components together cool your home.
Standard Features:
R-410A chlorine-free refrigerant
High-efficiency scroll compressor
SmartShift technology to ensure quiet reliable defrost
Factory-installed bi-flow liquid-line filter drier
Factory-installed suction-line accumulator
Factory-installed compressor crankcase heater
Factory-installed high-capacity muffler
High- and low-pressure switches
Service valves with sweat connections and easy access to gauge ports
Copper tube/enhanced aluminum fin coil
Fully charged for 15 ft of tubing length
Contactor with lug connection
Ground lug connection
AHRI Certified; ETL Listed
Cabinet Features:
Goodman sound control top design
Steel louver coil guard
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Top and side maintenance access
Service ports and controls are accessible while unit is operating
When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
The Goodman ARUF Air Handlers have consolidated the old ARUF and ADPF series into a brand new improved model. The SmartFrame Sub-Structure is at the heart of this design – a new skeleton which adds lateral stability to the chassis, new mounting locations for internal components and additional insulation retention. It also eliminates the need for external side and back screws. These new models are 4-way multi-position, capable of upflow downflow or horizontal airflow direction. Unit ships ready for upflow or horizontal left – downflow or horiz. right is a simple conversion process. The ARUF model has an unpainted finish, piston operation and flow rate expansion device.
Standard Features:
All-aluminum evaporator coil
Check flowrater expansion device for cooling-only and heat pump applications
Direct-drive, multi-speed motor
Transformer and blower time-delay on all units
Easy single-bulb UV light compatibility
Complies with the Factory-sealed Air Handling Credit with or without field-installed filter kits as listed in the 2001 Florida Building Code, Chapter 13, Section 610.2.A.2.1
AHRI Certified; ETL Listed
Cabinet Features:
New rigid SmartFrame cabinet
21 inches depth for easy attic access
Galvanized leather grain-embossed finish
Glue-less cabinet insulation retention
Screw-less sides & back prevents condensation
Multi-position capability: upflow, downflow, horizontal or vertical
Coil-mounting track for quick repositioning
Tool-less filter access accommodates standard-size filters
Power supply entry at top; low-voltage entry at top and on left side
Easily convertible 4-way design
Multiple electrical knockouts
Heavy-gauge bottom plate
Product Specification
No Returns
No
Product On Sale
No
UPC
646341721466
Free Shipping
Free Shipping
GroupKit
Split System Kit (1.5 – 2.5 Ton)
Type
Heat Pump
Ton
2.5 Ton
Seer
14 Seer
Brand
Goodman
Category
Split Systems
Model Number(s)
GSZ140301 – ARUF31B14
Brand
Goodman
Type
Heat Pump
Ton
2.5 Ton
SEER
14
HSPF
8.20
Cooling Btu
27,600
Heating Btu
26,600
Cooling Stage(s)
1
Heating Stage(s)
1
Compressor Stage
Single
Blower Application
Multi-Position
Voltage
208/230V
Electrical Phase(s)
1
Amp(s)
30
Hertz (Hz)
60
Decibel Level (dB)
74
Blower
Multi-Speed
Maximum CFM
1,235
Refrigerant Type
R-410A
Suction Valve Size (Inches)
3/4
Liquid Valve Size (Inches)
3/8
Total Shipping Weight (lbs.)
282
Outdoor Unit Height (Inches)
36 1/4
Outdoor Unit Width (Inches)
29
Outdoor Unit Depth (Inches)
29
Indoor Unit Height (Inches)
53 7/16
Indoor Unit Width (Inches)
17 1/2
Indoor Unit Depth (Inches)
21
Parts Warranty (Years)
10
Compressor Warranty (Years)
10
AHRI Certificate #
7995113
UPC #
646341721466
