ESCO 22 Ton Air Bag Jack Kit

ESCO maximum force airbags are thin reinforced, molded inflatable jacks that can be positioned in tight or confined spaces with as little as one inch clearance.
Features

MAXIMUM Force Air Bags.
THIN reinforced, molded inflatable jacks.
CAN be positioned in tight or confined spaces with as little as one-inch clearance.
Lifting capabilities range from 7.6 Tons to over 69 Tons.
MADE of aramid fiber consisting of five layers
Airbags may be used for lifting in several different industries such as Material Handling, Railroad Work, Mining, Rescue, Military Agricultural, OTR Tire Changing

Specifications

Lifting Capacity: 22 Tons
Dimensions: 20″ x 20″ x 1″ (508mm x 508mm x 25mm)
Height Max Inflation: 9.5″ (241mm)
Weight: 28 lbs. (13 kg)

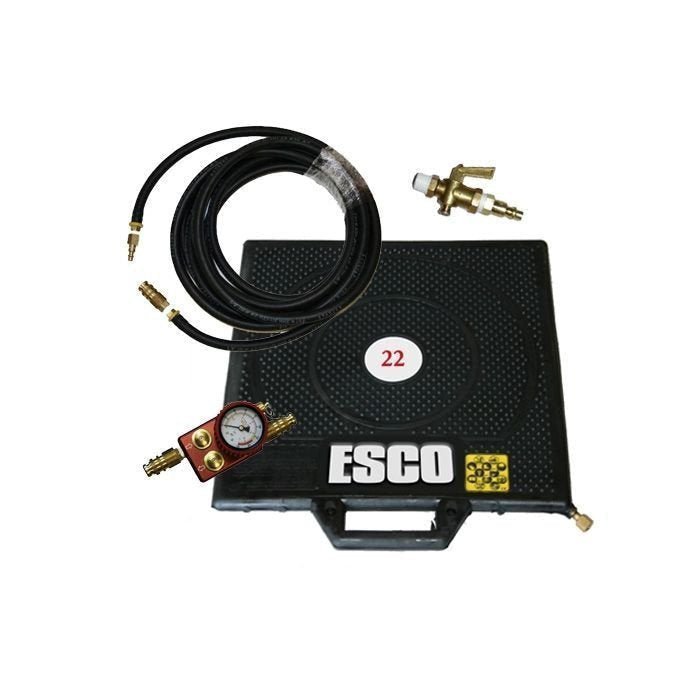

Kit Includes

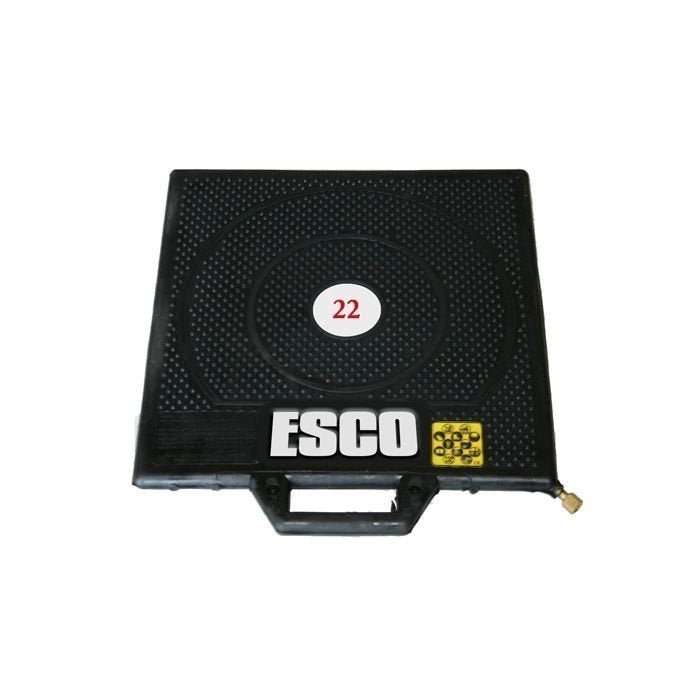

#12107 – 22 Ton Air Bag Jack

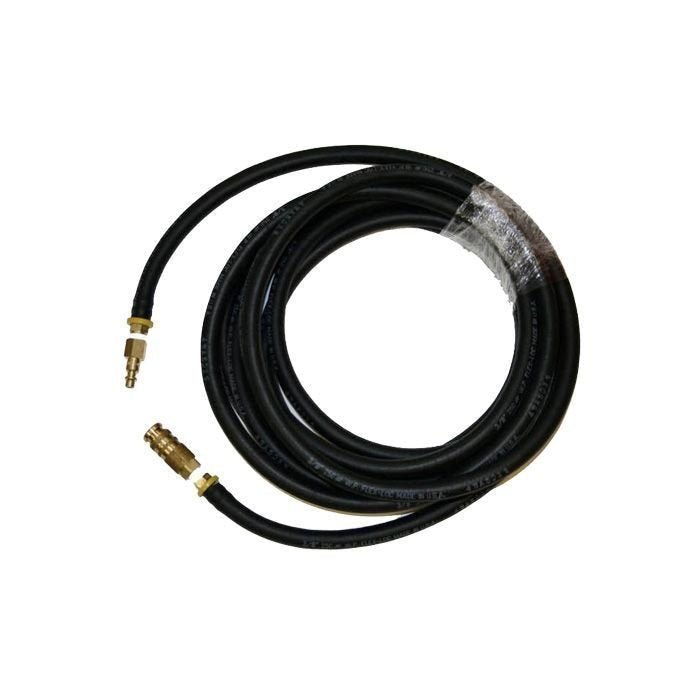

#12122 – 20′ Air Bag Jack Hose and Couplers
#12119 – Single Safety Relief and Control Valve

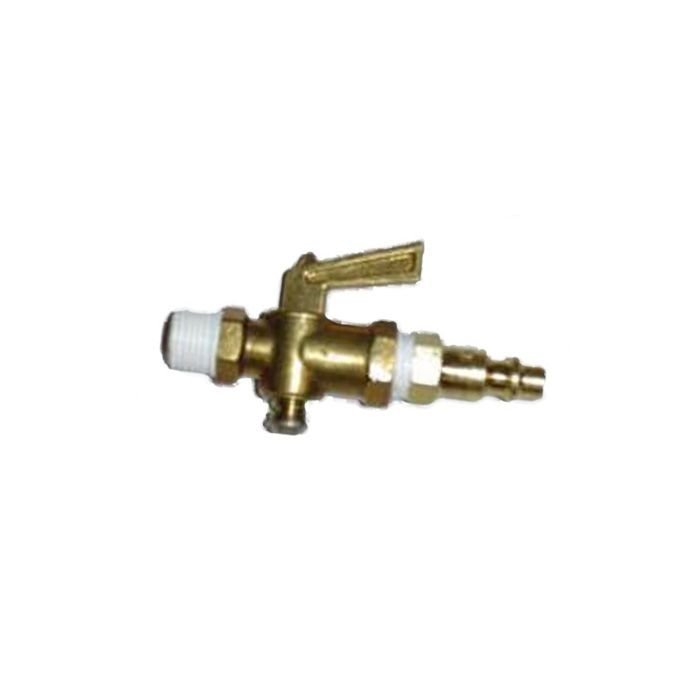

#12123 – Nipple and Industrial Nipple with Valve
