ESCO 10-Ton Hydraulic Stak-Able Ram Kit with 1 Quart Pump

The high-quality ESCO 10-Ton Hydraulic Stak-Able Ram Kit is specifically designed for a wide range of heavy-duty applications in the tire/wheel service market and many more. The Stak-Able Ram Kit eliminates the tedious effort required to push rusted, corroded wheels off hubs. Ideal for stubborn 22.5″ and 24.5″ wheels, the Stak-Able Ram Kit is far more resilient and robust than any other equipment alike on the market. Designed for applications in heavy-duty commercial and OTR industry use. Use extensions within the kit separately or as a single long extension.

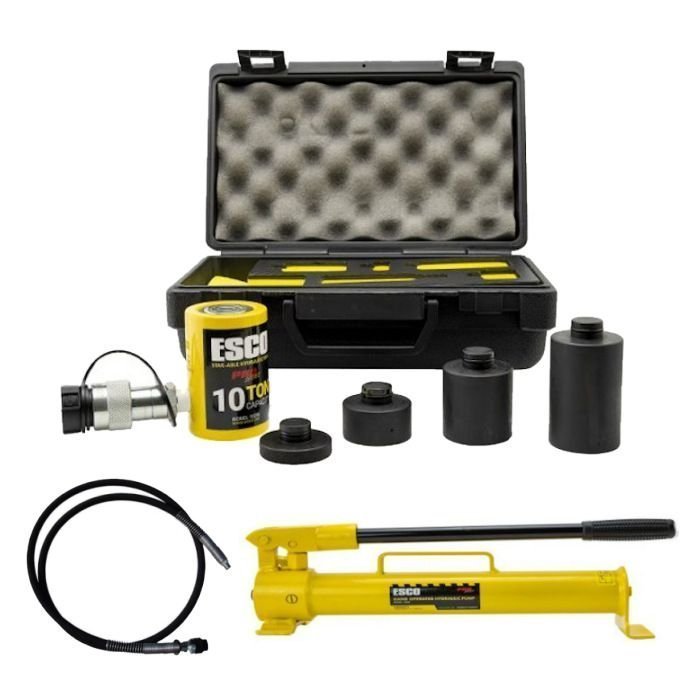

Kit Includes

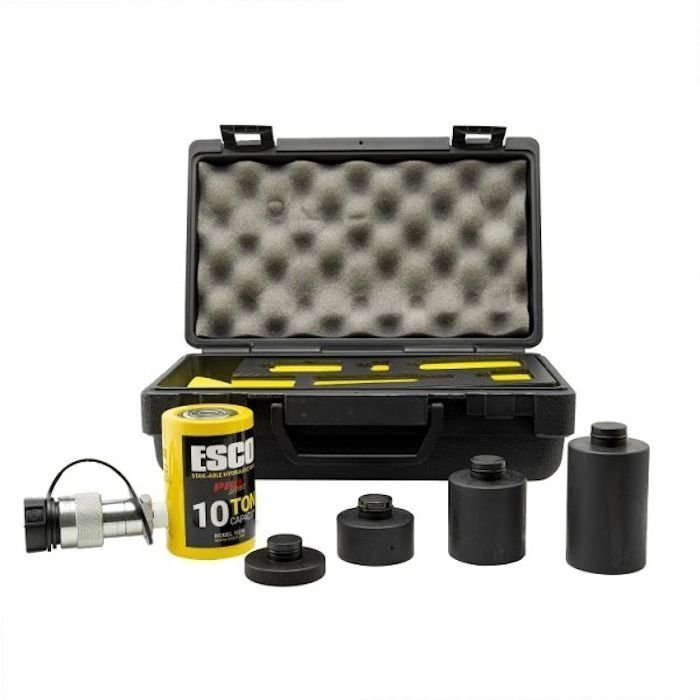

#10316 – 10-Ton Hydraulic STAK-ABLE Ram Kit
#10508 – 1 Quart Manual Hydraulic Pump
#10604 – 8′ Hose Assembly with Hose Coupler

10-Ton Hydraulic STAK-ABLE Ram Kit Features

Great For Use In Multiple Applications In The Tire/Wheel Service Market And Many More
Ideal For Low Clearance Applications
Used To Break The Back Bead By Pushing Off The Chassis On Heavy Duty Equipment
Great For Loosening Seized Wheels From Back-End Of Vehicle On Heavy Duty Equipment

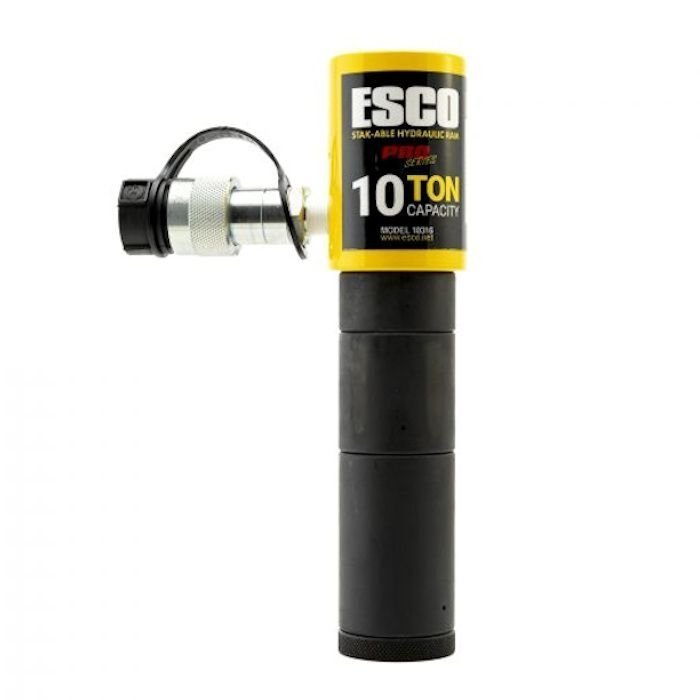

Easy Snap-In Extensions
Made Of High-Quality Steel
Most Versatile 10-Ton Ram On The Market
Easy To Switch Out Extensions For Optimal Extension Length

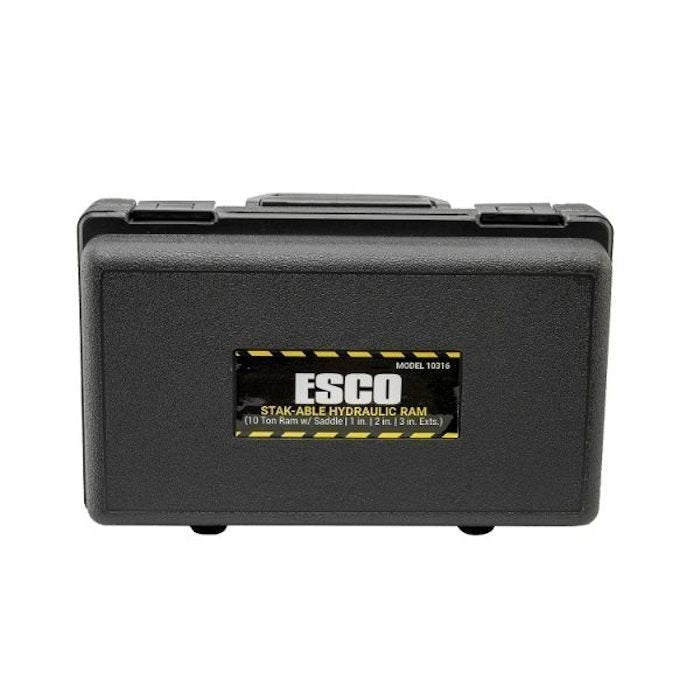

Includes Carrying Case
3-Year Extended Warranty

10-Ton Hydraulic STAK-ABLE Ram Kit Specifications

Capacity: 10 Tons (20,000 lbs.)
Maximum Pressure: 10,000 psi
Retracted Height: 3.5″
Extended Height: 5″
Maximum Height: 11.25″
Stroke: 1.3125″
Saddle: 0.375″

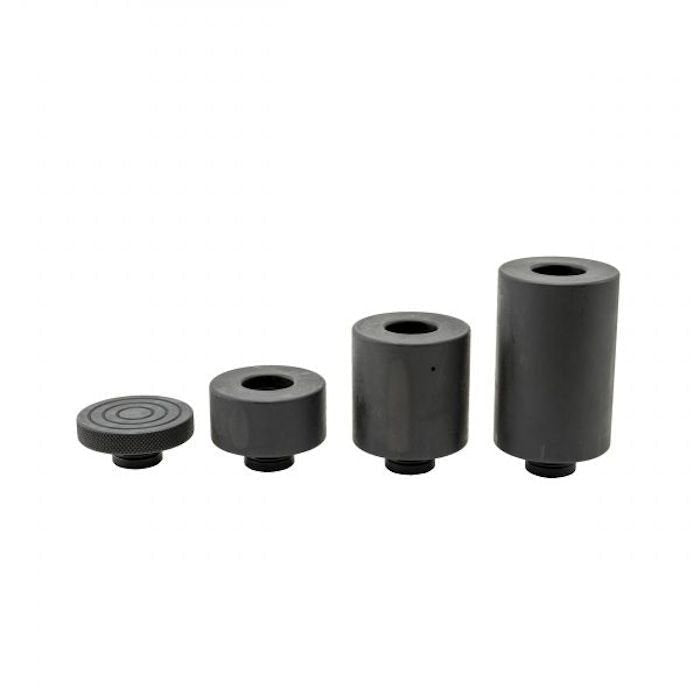

Extension 1: 1″
Extension 2: 2″
Extension 3: 3″
Weight: 10 lbs.
Dimensions (Product Case): 12″ W x 5″ L x 5″ H
Dimensions (Packaging): 12″ W x 10″ L x 5″ H
Warranty: (3) Years Limited*

1 Quart Manual Hydraulic Pump Features

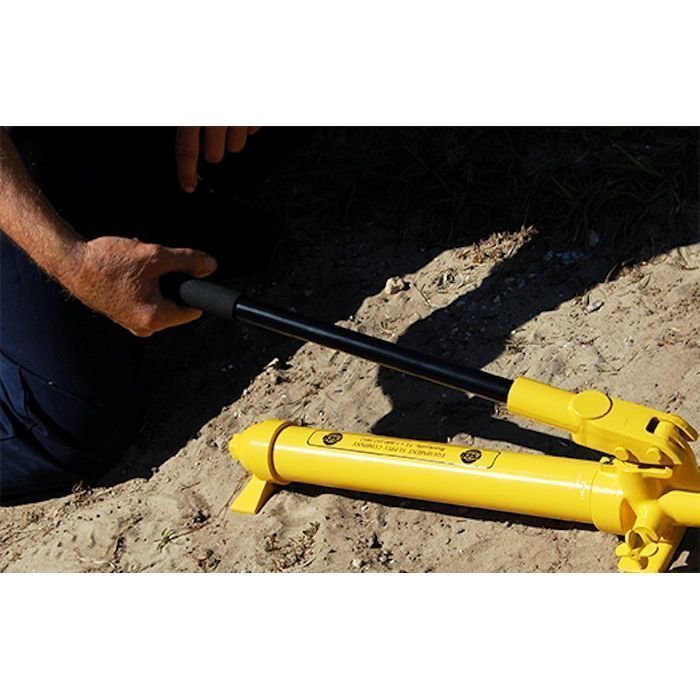

Hand Operated Hydraulic Pump
1-Quart Oil Capacity
10,000 PSI Hydraulic Pressure
Shipped With Premium Hydraulic Oil

1 Quart Manual Hydraulic Pump Specifications

Oil Capacity: 1 Quart
Material: Metal
Max. Pressure: 10,000 PSI
Weight: 14 lbs. (7 kg)
Warranty: (3) Years Limited*

8′ Hose Assembly with Hose Coupler Features

Hydraulic Hose With Swivel Fitting – Hose Won’t Kink
Reinforced With Two Layers Of Braided Steel
Withstands Extreme Temperatures of -40°F
Use With Any 10,000 PSI Pump, Ram, Or Bead Breaker
Includes Half Coupler

8′ Hose Assembly with Hose Coupler Specifications

Hose Length: 8′ (96″)
Max. Air Pressure: 10,000 PSI
Type: 3/8″ 18 Male
Attachments Included: Model #10605 Half Coupler
Weight: 5 lbs. (2.2 kg)
