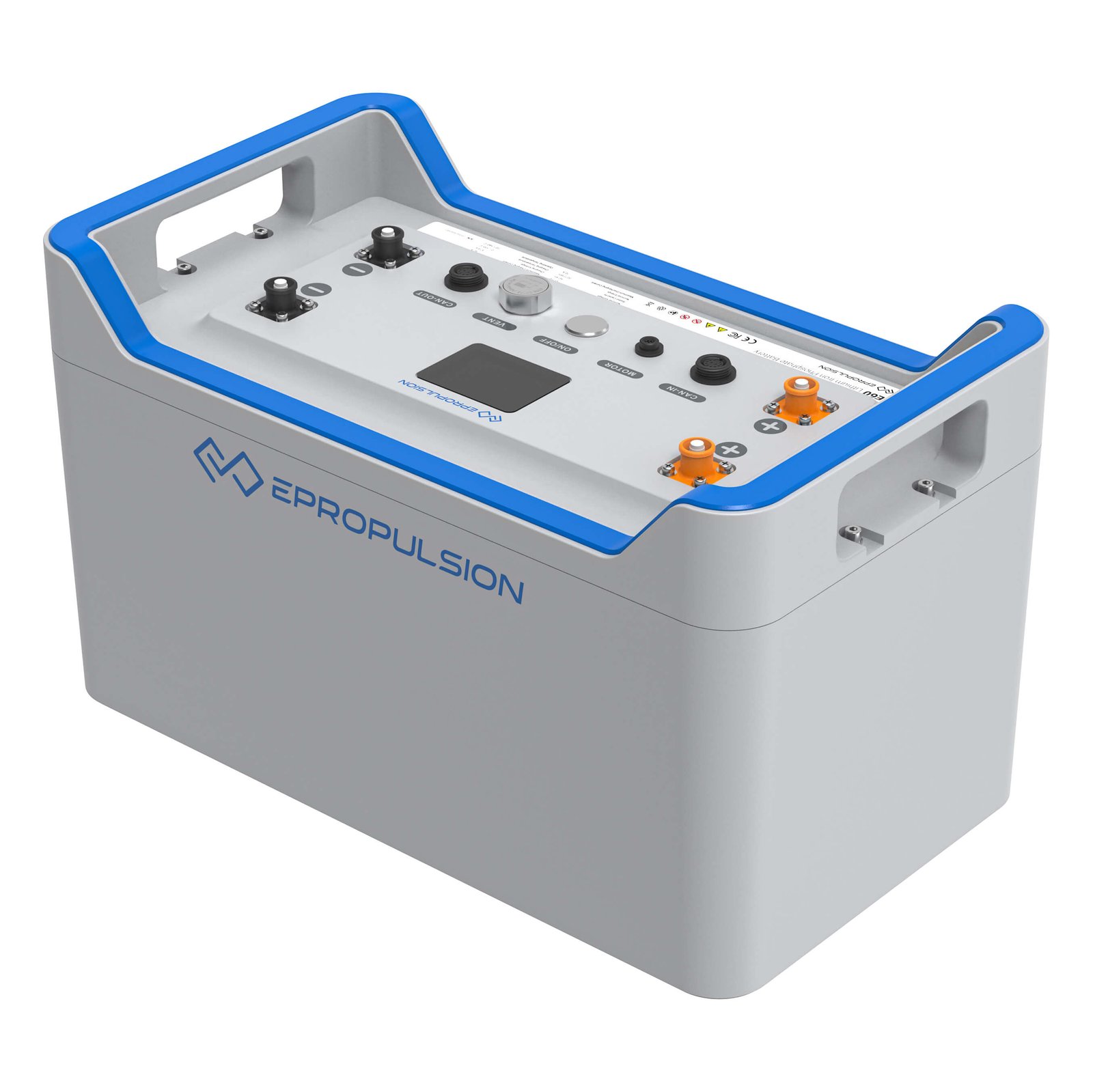

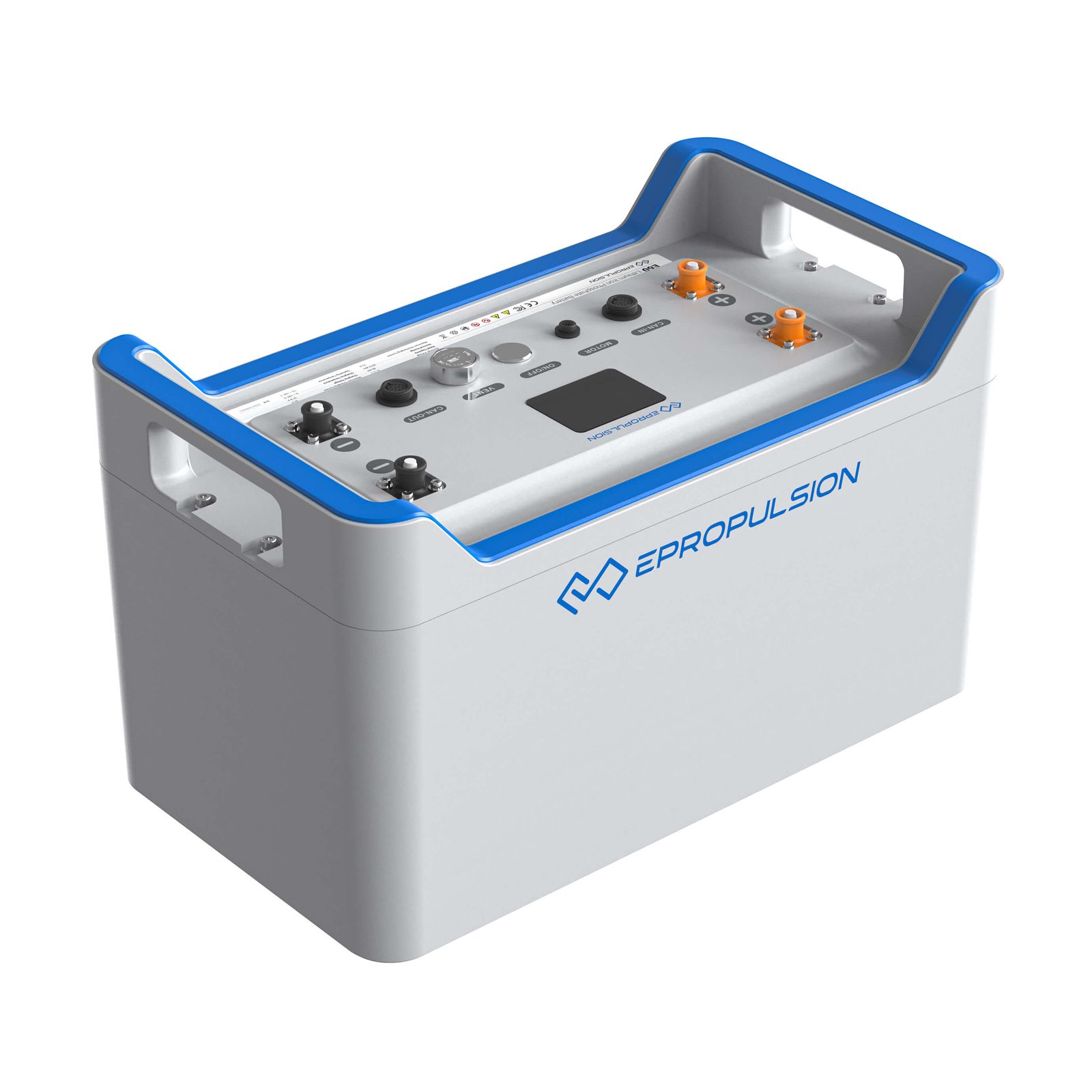

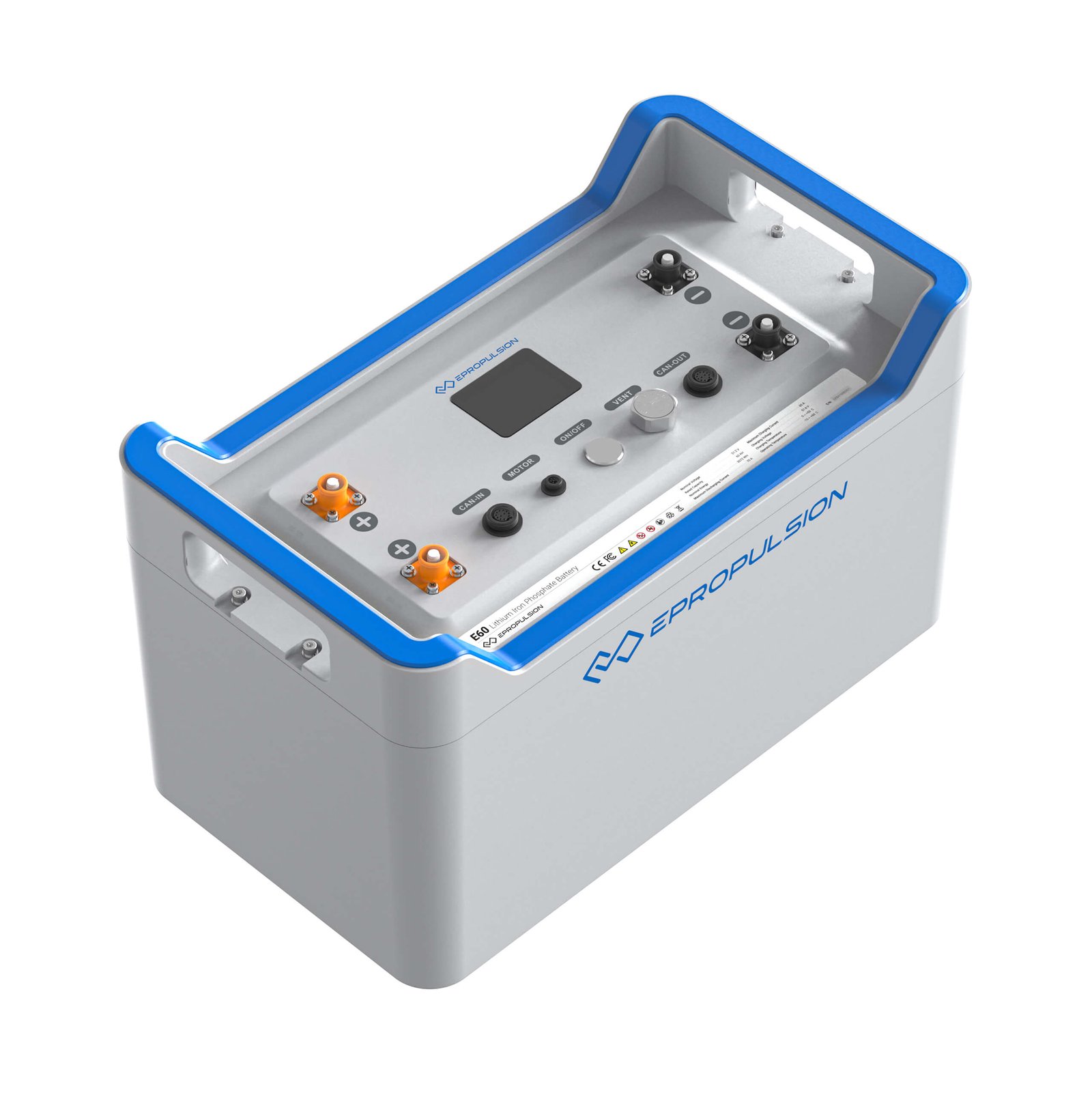

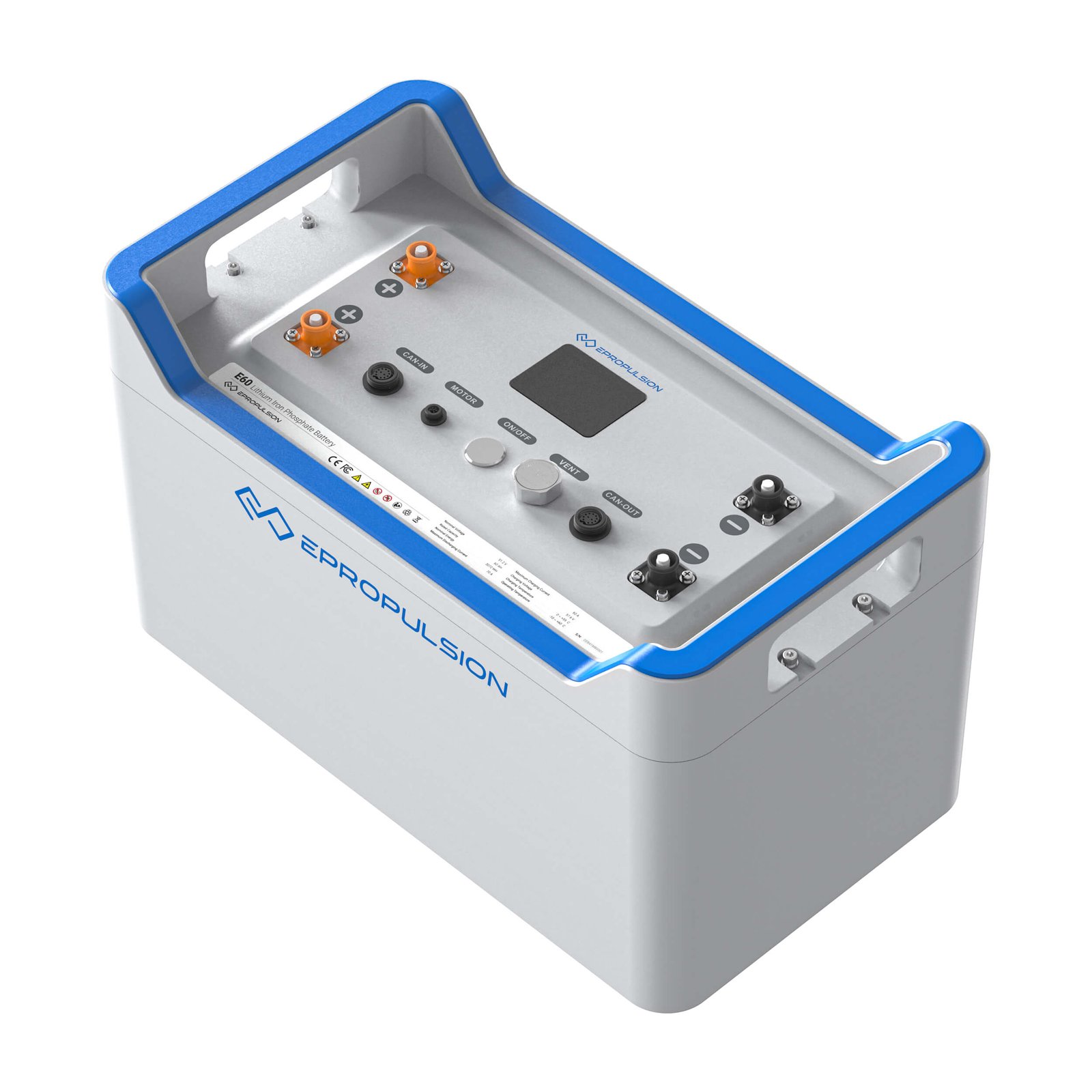

EPropulsion E-Series E60 Lithium Iron Phosphate Battery (LiFePO4)

High-performance and durable lithium battery for electric boating!
The chemistry of E-Series batteries is LiFePO4, offering a weight reduction of 30% and around 50% higher usable capacity compared to AGM lead-acid batteries. What’s more, LiFePO4 batteries boast a lifespan of up to 3000 cycles, while AGM batteries only last between 300 to 500 cycles.
*Questions? Call our EPropulsion Experts at 404-720-3975*
Why Choose The E60 Battery:

High Performance – E60 (single battery) can support Navy 3.0 Evo (6HP) full power output.

Flexible Installation – The height of E60 battery is only 300 mm, allowing flexible installation under the boat seat or other available spaces.

Lightweight – Features a new innovative double-layer plastic housing design weighing only 33 kg and can be safely lifted by a person.

Technical SPECS:

Swipe to view more →

E-Series E60

E-Series E163

Capacity
3072 Wh / 60 Ah
8345 Wh / 163 Ah

Rated Voltage
51.2 V
51.2 V

Battery Life
3,000 cycles at 80% DOD
3,000 cycles at 80% DOD

Weight
33 kg
76 kg

Dimensions
512 × 290 × 300 mm(20.2 × 11.4 × 11.8 in)
470 × 295 × 495 mm(18.5 × 11.6 × 19.5 in)

Cut-off Voltage
41.6 V
41.6 V

Final Charging Voltage
57.6 V
57.6 V

Max Discharge Current
70 A
150 A

Serial Connection
N/A
N/A

Parallel Connection
Up to 16
Up to 16

Cell Configuration
1654P
1651P

Charger
E-Series battery charger
E-Series battery charger

Charging Time (220V)
2.7 hrs (1 charger)1.3 hrs (2 chargers)
7.2 hrs (1 charger)3.6 hrs (2 chargers)

Charging Time (110V)
4 hrs (1 charger)2 hrs (2 chargers)
11 hrs (1 charger)5.4 hrs (2 chargers)

Charging Temp.
0 ~ 55°C (32 ~ 131°F)
0 ~ 55°C (32 ~ 131°F)

Discharging Temp.
−10 ~ 60°C (14 ~ 140°F)
−10 ~ 60°C (14 ~ 140°F)

Communication
CAN-Bus for ParallelRS485 for ePropulsion motors
CAN-Bus for ParallelRS485 for ePropulsion motors

Shipping Classification
UN3480, Class 9, UN38.3 Certified
UN3480, Class 9, UN38.3 Certified

Approvals
CE, UKCA, FCC
CE, UKCA, FCC

Warranty (Non-Commercial Use)
2 years
2 years
