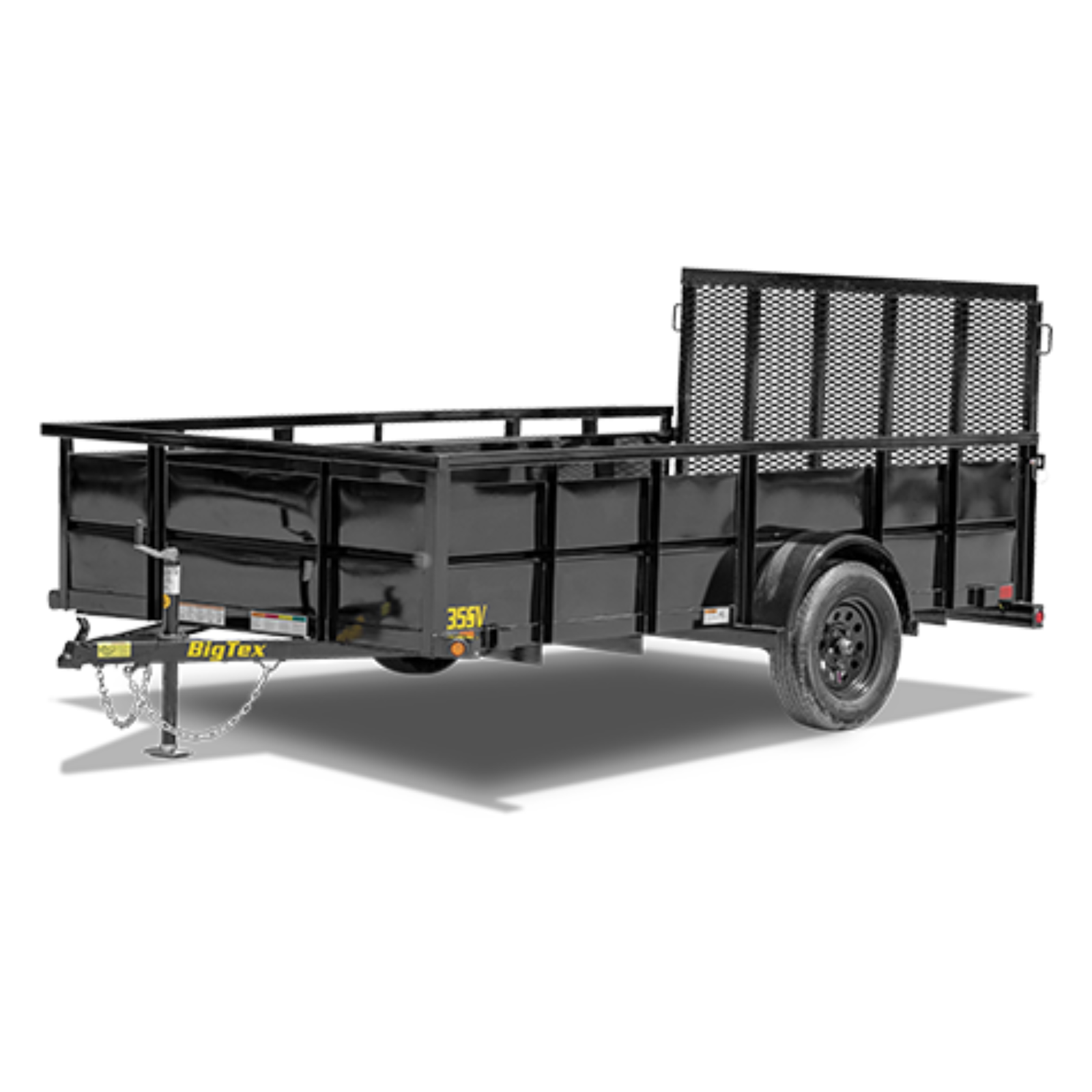

Big Tex Single Axle Vanguard Trailer | 35SV

On the job and need a trailer with a bit more space to haul landscaping equipment and tools? Then it’s time to get to work with the 35SV Single Axle Vanguard Trailer. Designed to haul without hassle from job to job, the 35SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if you’re looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate—perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.

Standard Feature
Available Options

Axles
3,500# Premium, Cambered Axle with Quick-Lubricating Hubs

Brakes
Brake Flanges for Easy Brake Addition
Electric Brakes w/ Complete Break-Away Kit

Suspension
Multi-Leaf Slipper Spring

Coupler
Demco EZ Latch
2″ Forged Coupler

Safety Chains
1/4″ Grd. 30 w/ Safety Latch Hook (2 ea)

Jack
2,000# Top Wind, Set-Back Jack
2,000# Fold-Up Jack

Frame
3″ x 2″ x 3/16″ Angle

Cross-Members
3” x 2” x 3/16” Angle

Floor
Treated Pine or Douglas Fir
Blackwood Pro Rubber Infused Lumber Floor (per linear foot)

Fenders
9″ x 32″ Rolled Formed w/ Back

Ramps

4′ Tall Rear Ramp Gate w/ Coil Spring Assist
5′ Tall Rear Ramp Gate w/ Coil Spring Assist

Stake Pockets

Additional Stake Pockets (Each)

Trailer Plug
4-Way Flat w/ Loom

Lights
L.E.D. D.O.T. Stop, Tail, Turn & Clearance

Wiring
Grommet-Mounted Lifetime L.E.D. Lighting

Tires
ST205/75 R-15 Load Range C

Bolt Pattern
5 Bolt

Spare Mount
Side Spare Tire Mount

Spare Tire

Spare Tire (ST205/75R-15 LR-C)

Paint Type
Professional Finish w/ Primer Standard

Paint Color
Black

Red
Grey
White
Desert Tan
Jet Blue
Slime Green
Implement Green
Equipment Orange
Medium Yellow

Tie-Downs
(4) Tie Down Loops Inside Bed
Additional Tie Loops

Sides
28-1/2″ Tall Sides w/ 24″ V-Crimped Steel Panels (16 Ga.)

Storage

Bolt-On Landscape Box for (24″ x 24″ x 81-1/2″)

Top Rail
2″ x 2″ Square Tubing

MODEL
35SV-10

PULL TYPE
Bumperpull

GVWR
2995 lbs

GAWR (EA. AXLE)
3500 lbs

EMPTY WEIGHT
1100 lbs

CARGO CAPACITY
1895 lbs

BED LENGTH
10′

BED WIDTH
77″

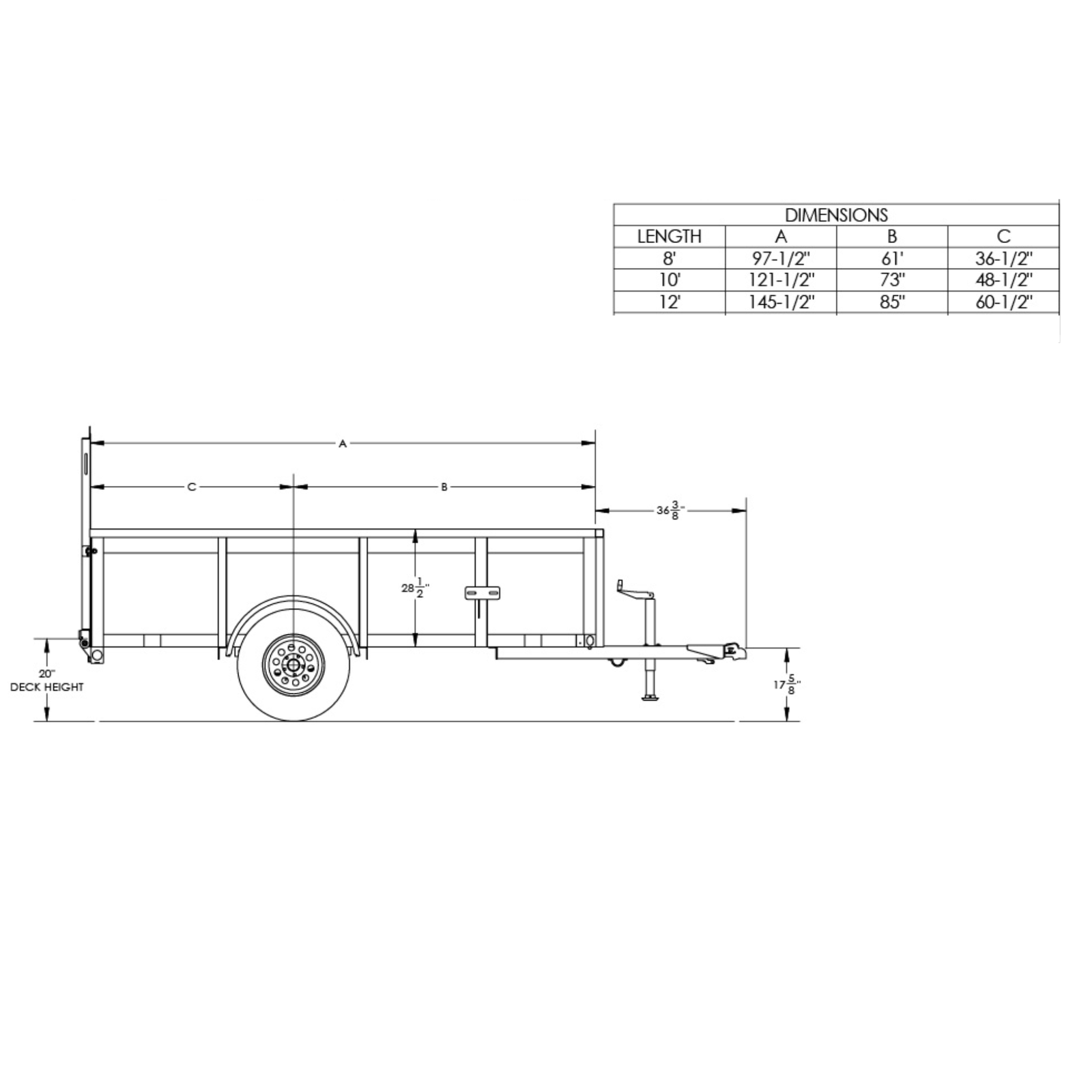

A
121-1/2″

B
73″

C
48-1/2″

TONGUE LENGTH
36-1/8″

MODEL
35SV-12

PULL TYPE
Bumperpull

GVWR
2995 lbs

GAWR (EA. AXLE)
3500 lbs

EMPTY WEIGHT
1290 lbs

CARGO CAPACITY
1705 lbs

BED LENGTH
12′

BED WIDTH
77″

A
145-1/2”

B
85”

C
60-1/2”

TONGUE LENGTH
36-1/8″

MODEL
35SV-14

PULL TYPE
Bumperpull

GVWR
2995 lbs

GAWR (EA. AXLE)
3500 lbs

EMPTY WEIGHT
1480 lbs

CARGO CAPACITY
1515 lbs

BED LENGTH
14′

BED WIDTH
77″

A
169-1/2”

B
97”

C
72-1/2”

TONGUE LENGTH
36-1/8″
