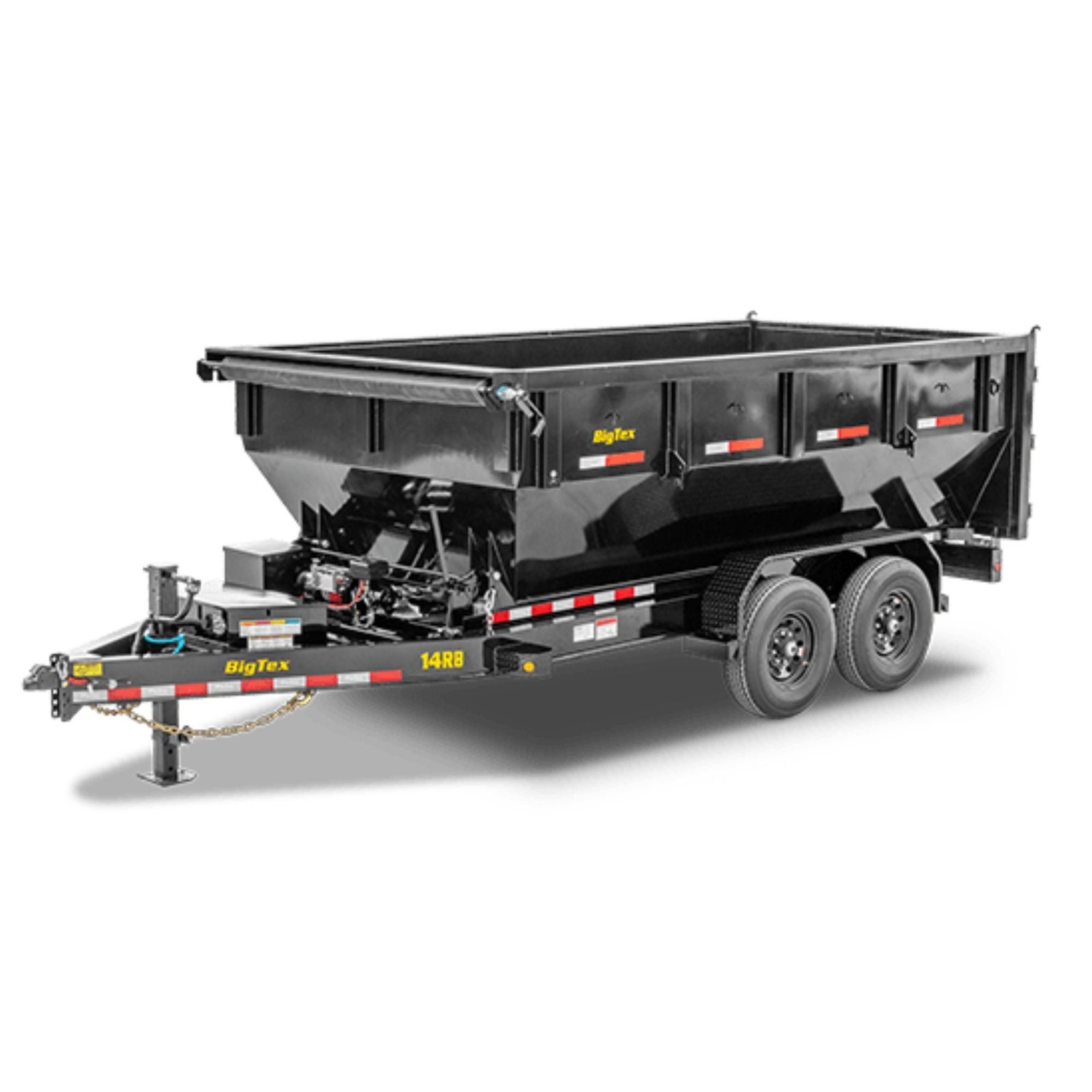

Equipped with the most requested features to support the demands of the construction, junk removal, and even the dumpster rental business, the durable 14RB Roll-Off Bumper Pull Dump is built with professional-grade parts and is designed to withstand the rigors of everyday use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the 14RB offers a convenient and cost-effective solution for servicing multiple job sites with a single trailer.
Standard Feature
Available Options
Axles
2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes
Forward Self-Adjusting Electric Brakes on Both Axles
Suspension
Multi-Leaf Slipper Spring w/ Equalizer
Coupler
2-5/16″ Ball, Adjustable Demco EZ Latch Coupler
Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains
3/8″ Grade 70 w/ Safety Latch Hook (2 ea)
Jack
12,000# Drop-Leg Jack (Side Wind)
12,000# Elec/Hyd. Jack BY Stillwellā¢
Frame
8″ Seamless I-Beam (10#)
Cross-Members
3″ Channel on 16″ Centers
Floor
10 Gauge Smooth Steel
Fenders
9″ x 72″ 14 Ga. Diamond Plate Double Broke
Trailer Plug
7-Way RV
Lights
Recessed, Grommet-Mounted L.E.D. Lighting
Wiring
Sealed, Modular Cold-Weather Wiring Harness
Tires
ST235/80 R-16 Load Range E Radial Tires
Tire Upgrade (ST235/80 R-16 LR-G)
Bolt Pattern
8-Lug
Spare Mount
Side Spare Tire Mount
Spare Tire
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Spare Tire Upgrade (ST235/80 R-16 LR-G)
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Tie-Downs
(4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Battery
12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch
Charger
(2) 5A 110V on Board Battery Charger for Hydraulic System and Winch
Gate
Barn Doors
Power
Power Up/Power Down & Gravity Down Hydraulic Pump
Wireless Remote for Hoist
Wireless Remote for Winch
Ram
Self-Contained Scissor
Sides
48″ Tall (12 Ga) with formed Channel Supports
Storage
Lockable Pump and Battery Box mounted in Front of Bed
Tarp
Fully-Formed Tarp Shroud with Crank Tarp & Rear Tarp Rod Holders
Top Rail
4″x 3″ Rectangular Tubing
Battery Box
Tilt Bed mounted Battery Box for Independently wired Winch Power System
Rollers
Greaseable Rollers
Steps & Handles
Convenient Side-Step to Access Top Rail
Winch
Specially Designed High Duty Cycle 15K Winch
Ā
Model
14RB-14
Pull Type
Bumperpull
GVWR
14000 lbs
GAWR (Ea. Axle)
7000 lbs
Empty Weight
3310 lbs
Cargo Capacity
8410 lbs
Bed Length
14′
Bed Width
83″
