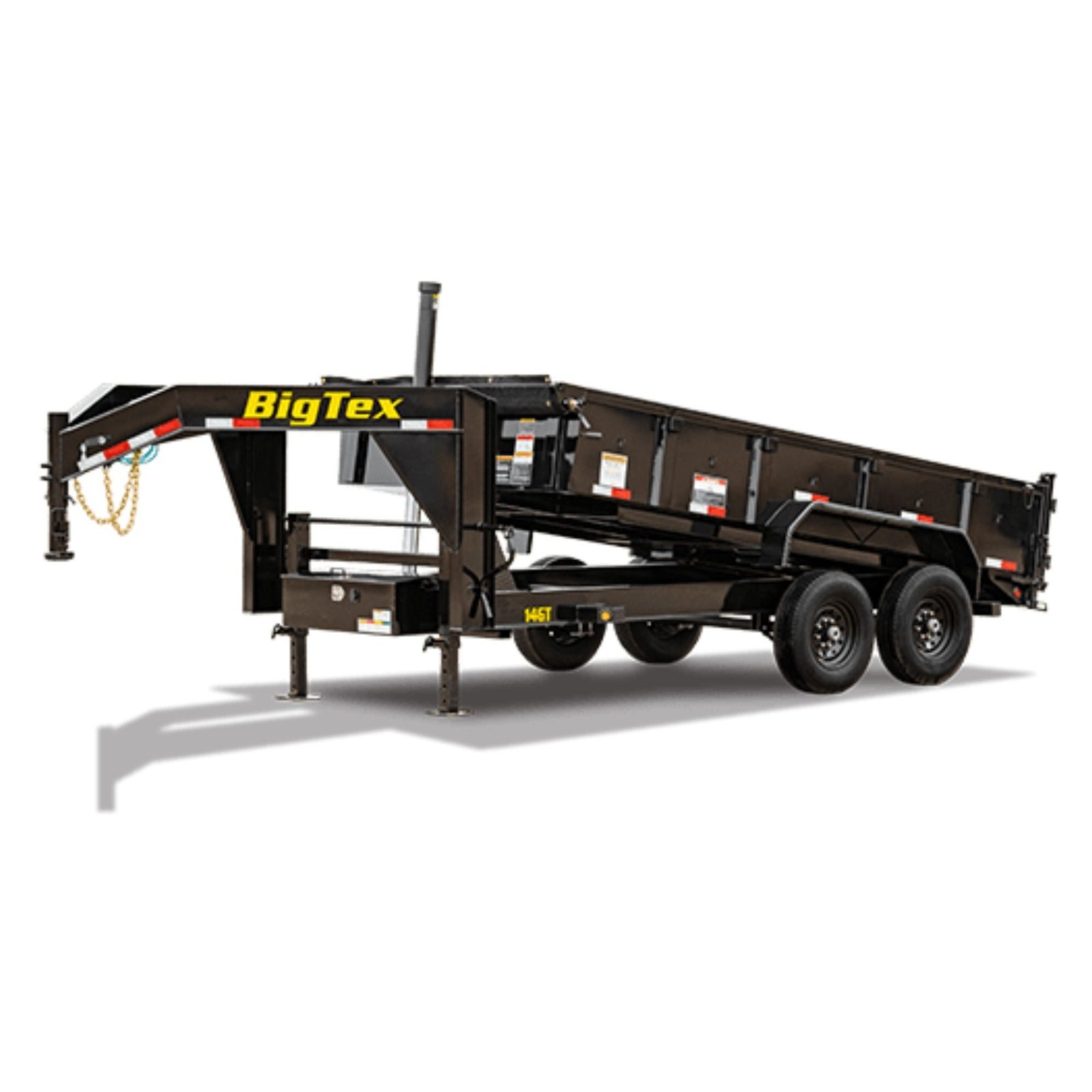

Delivering rock-solid hauling performance for professionals in construction and landscaping, the 14GT Heavy Duty Telescopic Gooseneck Dump is built from the ground up to offer superior (and smoother) lift for any load. How? With its heavy-duty gooseneck and 12-ton, 3-stage telescopic hydraulic cylinder, thatās how. This trailer handles large, bulky cargo and debrisāeven uneven or loose materialsāwith ease, thanks to its advanced engineering and design. A feature-packed dump box comes loaded with an integrated crank-style tarp shroud and tarp, D-ring tie downs, and a rear combo gate to make sure heavy-duty haulers are equipped for whatever the workday brings.
STANDARD FEATURE
AVAILABLE OPTIONS
Axles
2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Drop Axles (Lowers Deck Height to 24″ from Ground)
Brakes
Forward Self-Adjusting Electric Brakes on Both Axles
Suspension
Multi-Leaf Slipper Spring w/ Equalizer
Tongue
10″ I-Beam Neck
Coupler
Round Adjustable Pin 2-5/16ā Gooseneck Coupler
Safety Chains
3/8″ Grade 70 w/ Safety Latch Hook (2 ea)
Jack
Dual 12,000# Drop-Leg Jack (Side Wind)
Dual 2-Speed Landing Gear
Frame
8″ I-Beam (13#)
Cross-Members
3″ Channel on 16″ Centers
Floor
10 Gauge Smooth Steel
Upgrade Floor to 7-Gauge Steel
Fenders
9″ x 72″ 14 Ga. Diamond Plate Double Broke
Ramps
Not Included
6.5ā Slide In Ramp Package
Stake Pockets
Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug
7-Way RV
Lights
Recessed, Grommet-Mounted L.E.D. Lighting
Wiring
Sealed, Modular Cold-Weather Wiring Harness
Tires
ST235/80 R-16 Load Range E Radial Tires
Tire Upgrade (ST235/80 R-16 LR-G)
Bolt Pattern
8-Lug
Wheels
Black Mod Steel
Spare Mount
Side Spare Tire Mount
Spare Tire
Not Included
Spare Tire & Wheel (ST235/80 R-16 LR-E)
Spare Tire Upgrade (ST235/80 R-16 LR-G)
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Tie-Downs
(4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Battery
12V Deep Cycle
Charger
5A 110V on Board Battery Charger
Deck On Neck
Not Included
Removable Deck on the Neck- Bolt On (8′ W x 6′ L)
Gate
Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks
Along sides and rear for Cargo Control
Power
Power Up/Gravity Down Movement
5 Watt Solar Charger
Wireless Remote
Ram
12-Ton 3- Stage Telescopic Cylinder
Sides
24″ Tall (10 Ga) with formed Channel Supports
24″ Expanded Metal Side Extensions
3′ Solid Sheet Metal Sides
4′ Solid Sheet Metal Sides
Stabilizers
Rear Stabilizer Stands
Steps
Convenient Side-Step to Access Top Rail
Storage
Lockable Pump and Battery Box mounted between front Jacks
Tarp
Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Top Rail
3″x 2″ Rectangular Tubing
Steps & Handles
Convenient Side-Step to Access Top Rail
Ā
Model
14GT-16
14GT-14
Pull Type
Gooseneck
Gooseneck
GVWR
15900 lbs
15900 lbs
GAWR (Ea. Axle)
7000 lbs
7000 lbs
Empty Weight
5110 lbs
4650 lbs
Cargo Capacity
10790 lbs
11250 lbs
Bed Length
16′
14′
Bed Width
83″
83″
A
192″
168″
B
115-3/4″
100″
C
76-1/4″
68″
Tongue Length
51-1/8″
51-1/8″
