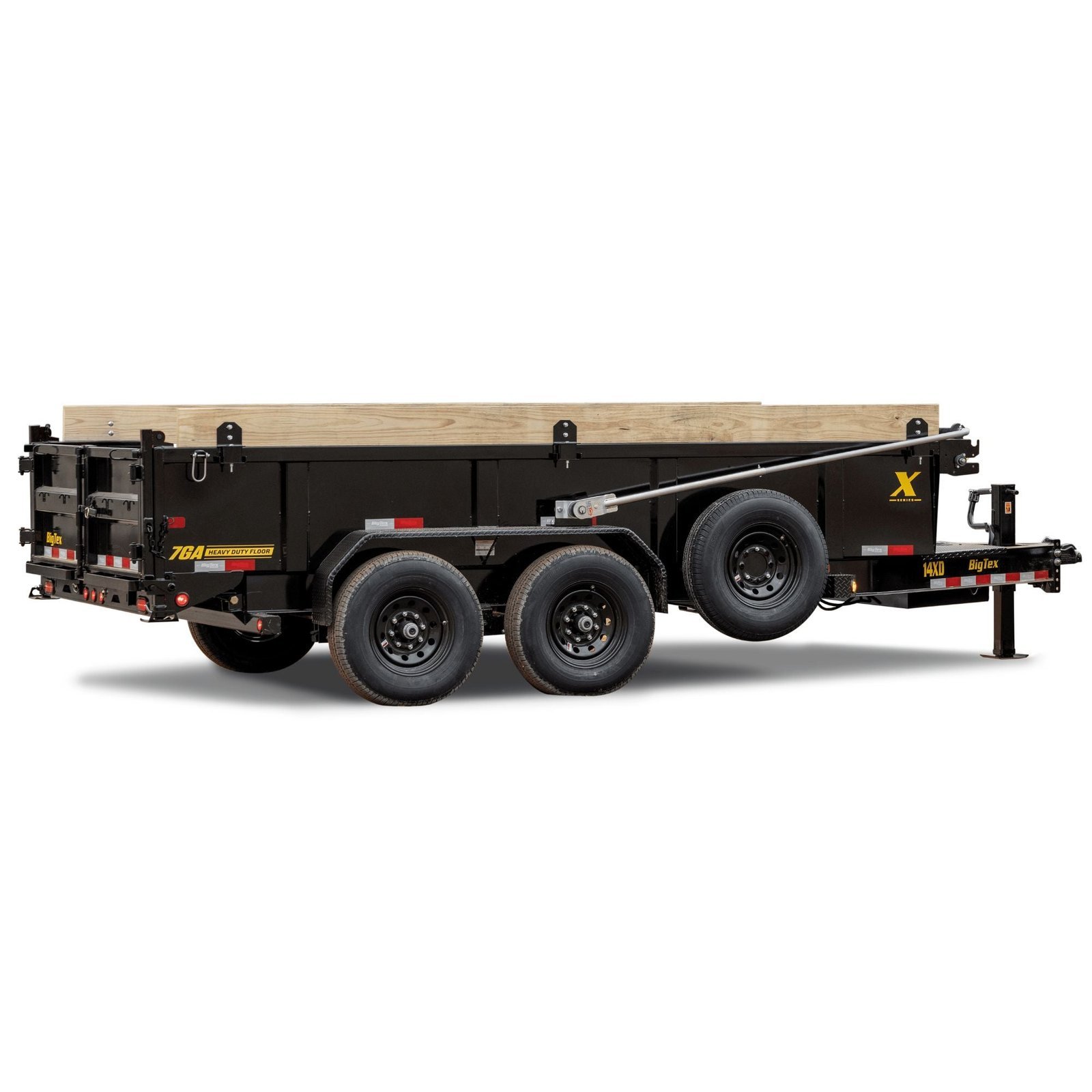

Part of the all-new X-Series, the 14XD Heavy Duty Low Profile Dump Trailer stands as the pinnacle of professional-grade hauling. Engineered with a seamless 8″ I-beam frame and tongue, this dump trailer delivers unmatched strength for the heaviest loads, while a Mega-Sized Toolbox gives you space for all your essential gear. Topped with practical features like a Spring-Loaded Swing Arm Tarp, robust board brackets, and an advanced Scissor-Lift Hydraulic System with power-up, power-down, and gravity-down options, the 14XD will help you tackle the toughest jobs with confidence and efficiency.
Standard Feature
Available Options
Axles
2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes
Forward Self-Adjusting Electric Brakes on All Hubs
Suspension
Multi-Leaf Spring w/ Equalizer
Tongue
8″ I-Beam (10#), Integral with Frame
Coupler
Adjustable 2-5/16” 18,000# Demco EZ Latch
Adjustable Pintle in Channel in Lieu of Coupler
Safety Chains
3/8″ Grade 70 w/ Safety Latch Hook (2 ea)
Jack
12,000# Drop-Leg Jack (Side Wind)
12,000# Elec/Hyd. Jack BY Stillwell™
Frame
8″ I-Beam (10#)
Cross-Members
3″ Channel on 16″ Centers
Floor
7 Gauge Smooth Steel
Fenders
9” x 72” 14 Ga. Diamond Plate Double Square Broke
Ramps
6′ Slide in Ramps with integrated Ramp Door
Stake Pockets
Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug
7-Way RV
Lights
L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring
Sealed, Modular Cold-Weather Wiring Harness
Tires
ST235/80 R-16 Load Range G, Oracle
Bolt Pattern
8-Lug
Wheels
Black Mod Steel
Spare Mount
Side Spare Tire Mount
Paint Type
Professional Finish w/ Primer Standard
Paint Color
Black
Tie-Downs
(4) 5/8″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control
Break-Away Kit
Complete Breakaway System w/ Zip Breakaway Cable
Battery
12V Deep Cycle
Charger
5A 110V on Board Battery Charger
Gate
Rear Combo Gate (Barn Doors & Spreader Gate)
J-Hooks
Along sides and rear for Cargo Control
Power
Power Up/Power Down & Gravity Down Hydraulic Pump
Ram
Self-Contained Scissor
Sides
24″ Tall (10 Ga) with formed Channel Supports
Stabilizers
Rear Stabilizer Stands
Storage
Full Tongue Tool Box with Locking Lid
Tarp
Spring Loaded Swing Arm Tarp
Top Rail
3″x 2″ Rectangular Tubing
Model
14XD-14
Pull Type
Bumperpull
GVWR
15400 lbs
GAWR (Ea. Axle)
7000 lbs
Empty Weight
4180 lbs
Cargo Capacity
11220 lbs
Bed Length
14′
Bed Width
83″
