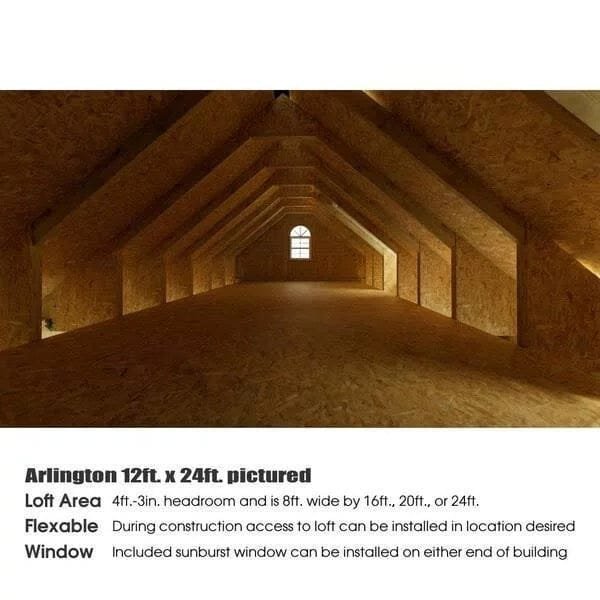

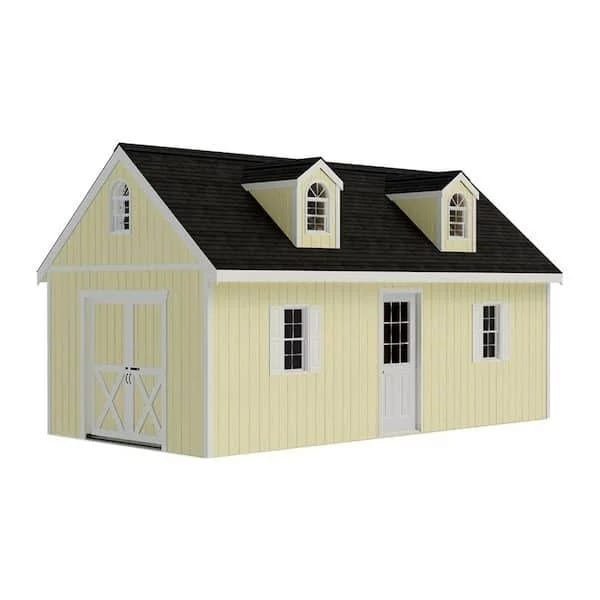

The Arlington by Best Barns offers a spacious interior and large loft area for all your storage needs. Featuring a second floor loft with 4 ft. – 3 in. headroom that provides a significant amount of additional storage for items such as household items and decorations. 2 (two) Dormers and a gable window with sunburst provide additional light and ventilation. The first floor, with it’s high side walls, has plenty of room to add shelving for even more versatile storage. Included are double pocket doors, 1 (one) 32 in. x 80 in. 9 lite walk-in door, 2 (two) 18 in. x 36 in. windows with vinyl shutters, 1 (one) gable window with sunburst and 2 (two) dormers with windows. Floor is not included. Check with your local permit authority before placing order. Shingles purchased by homeowner. Building is shipped directly to you via curbside delivery.
Assembled dimensions: 144 in. W x 240 in. D x 163 in. H

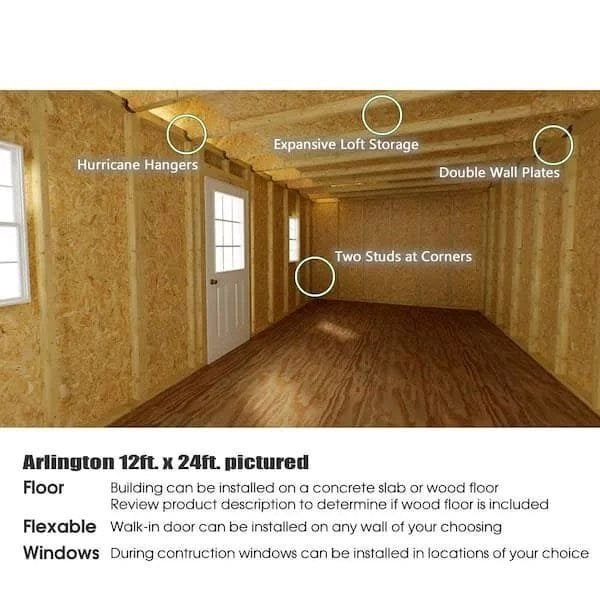

Sturdy-built truss system provides for 40 lb. snow load and 130 MPH wind load
Premium LP smart side paneling grooved 8 in. O.C. treated to resist fungal decay and insect infestation carries a 50-year limited warranty, siding is primed ready to paint

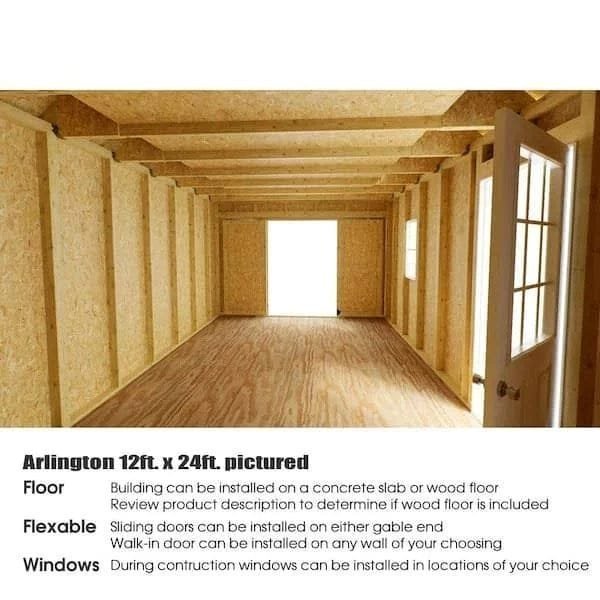

Pre-assembled, 6 ft. – 6 in. high x 5 ft. – 5 in. wide pocket doors with cross buck door design
Check with your local permit office before purchasing
Premium grade 2×4 construction spaced 24 in. O.C.
All required nails, hardware, glue are provided along with detailed easy to follow step-by-step instructions
Assembly required, some cutting required during assembly
18 in. x 36 in. windows with vinyl shutters, gable and dormer windows include lower screen for ventilation
15-year limited warranty
Delivery is curbside at end of driveway
From the Manufacturer
Warranty
Installation Guide
Specification
Use and Care Manual
Instructions / Assembly
Dimensions: H 163 in, W 144 in, D 240 in
Dimensions
Approximate Depth (ft.)
20
Approximate Width (ft.)
12
Assembled Depth (in.)
240 in
Assembled Height (in.)
163 in
Assembled Width (in.)
144 in
Coverage Area (sq. ft.)
240 sq ft
Door Opening Height (In.)
78
Door Opening Width (In.)
65
Exterior Peak Height (ft.)
14 ft
Sidewall Height (in.)
97.0
Details
Assembly Required
Yes
Capacity (cu. ft.) – Total
2400 cu ft
Color Family
Clear
Door Type
Double
Features
Door Latch, Double Door, Lockable Door, Loft, Shutters, Single Door, Windows
Floor Options
Without Floor
Foundation
Foundation Not Included
Included
No Additional Items Included
Manufacturers Recommended Assembly Time (hours)
96
Manufacturers Recommended Tools needed for Assembly
Safety Glasses, Hammer, Screwdriver, Level, Ladders, Tape Measure, Square, Drill, Circular Saw
Maximum Roof Load
40
Maximum Wind Resistance
130
Number of People Recommended by Manufacturer to Assemble
3
Number of Windows
5
Product Weight (lb.)
2100 lb
Returnable
90-Day
Roof Color Family
Clear
Roof Material
Wood
Roof Material
Not Included
Roof Pitch
10/12
Roof Shape
Peak
Shed Type
Wood
Siding Color Family
Gray
Storage Capacity (cu. ft.)
2400
Style
Ranch
Warranty / Certifications
Manufacturer Warranty
15 Year Limited Warranty
