Atlas PV10PX 10,000 lb Overhead 2-Post Lift Car

10,000 lb. capacity
Commercial Grade
Adjustable Height – 11′ 11 1/8″ or 12’3″
Asymmetric/Symmetric Arms
Automatic Arm Restraints
“Padded” Shut-Off Bar
Padded Carriages
Single Point Lock Release
Direct-Drive Cylinders
Powder Coat Finish
Free 12 Piece Truck Adapter Set
Mounting Hardware Included
Shipping Weight: 1,905 lbs.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas® ATTD-PV10PX Specifications

Capacity
10,000 LB.

Overall Height
143 1/8″ (11′ 11 1/8″) or 146 7/8″ (12′ 2 7/8″)

Overall Floor Width
137 1/2″ (11′ 5 1/2″)

Outside Column to Outside Column
125″ (10′ 5″)

Maximum Lift Height (Without Adapters)
71 7/8″

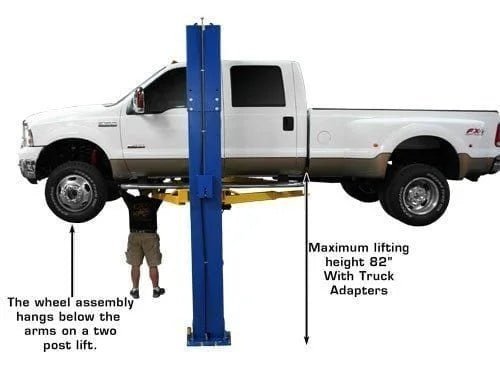

Maximum Lift Height (With Adapters)
82 7/8″

Minimum Arm Height
4 3/8″

Inside Column
110 3/8″ (9′ 2 3/8″)

Drive Thru
96″ (8′)

Column Size
7 1/2″ x 14 1/2″

Column Thickness of Steel
6mm

Base Of Lift
17 1/2″ x 20 1/2″

Motor/Electrical Requirement
220 volt single (1) phase. A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
1,905 LBS.

Adapter Heights
4 Each 2″, 3″, 6″

Arm Hole/Adapter Peg Size
1.5″

Requires a minimum of 4″ of concrete with a 3000 psi. rating
