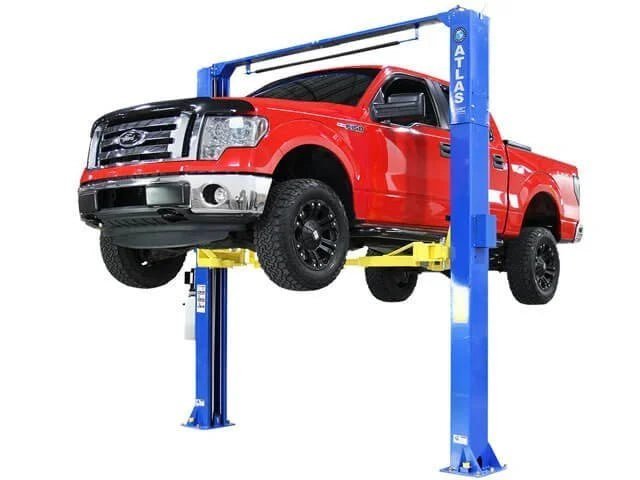

Atlas PRO-9D 9,000 lb Overhead 2-Post Lift

The PRO-9D has dual direct drive cylinder, this direct drive system, with fewer moving parts, ensures years of excellent lifting service from your Atlas above ground hoist.

9,000 lb. Capacity
Overhead, Open-Floor design
Overall Height: 144″ (12′)
Asymmetric/Symmetric Arms
Automatic Arm Restraints
Single-Point Lock Release
Rubber Guards on Carriages
Dual Direct-Drive Cylinders
Powder Coat Finish
Free 8 Piece Truck Adapter Set
Mounting Hardware Included
Shipping Weight: 1,450 lbs.
5-year Structural Warranty, 2-year Hydraulic-Power Warrant

Atlas® PRO-9D Specifications

Capacity
9,000 LB.

Overall Height
144″ (12′)

Overall Floor Width
134 1/2″ (11′ 2 1/2″)

Outside Column to Outside Column
124 7/8″ (10′ 4 7/8″)

Maximum Lift Height (Without Adapters)
68″

Maximum Lift Height (With Adapters)
74 1/4″

Minimum Arm Height
4 1/2″

Inside Column
110″ (9′ 2″)

Drive Thru
100″ (8′ 4″) Symmetric/ 90 1/2″ (7′ 6 1/2″) Asymmetric

Column Size
7 1/4″ x 11″

Column Thickness of Steel
5mm

Base Of Lift
14 1/4″ x 18″

Motor/Electrical Requirement
220 volt single (1) phase. A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
1,450 LBS.

Adapter Heights
4 Each 1.5″, 5″

Arm Hole/Adapter Peg Size
1.5″

Requires a minimum of 4″ of concrete with a 3000 psi. rating
