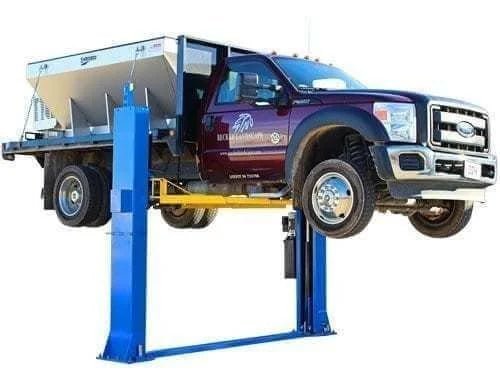

The Atlas BP12000X is a commercial grade heavy duty 12,000 pound capacity 2 post base plate above ground lift. This above ground lift has over sized columns, symmetric three stage arms, and single point lock release.
This lift is perfect for those commercial garages that want to lift heavier vehicles but have limited ceiling height. The Atlas BP12000X can be installed at two different width settings to accommodate wider trucks or trailers and to facilitate “driving between” the lift columns.
Features & Benefits
12,000 lb. Capacity
Heavy Duty, Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 122 1/2″ (10′ 2 1/2″)
Adjustable Width
3-Stage Symmetric Arms
Automatic Arm Restraints
Single-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Over Cylinders
Powder Coat Finish
Free 12 piece Truck Adapter Set
Mounting Hardware Included
5 yr Structural – 2 yr Hydraulic Warranty
Atlas ATTD-BP12000X Specifications
Capacity
12,000 lb.
Overall Height
122 1/2″ (10′ 2 1/2″)
Overall Floor Width
149 3/8″ (12′ 5 3/8″) or 154 1/2″ (12′ 10 1/2″)
Outside Column to Outside Column
135 7/8″ (11′ 3 7/8″) or 141 1/4″ (11′ 9 1/4″)
Maximum Lift Height (Without Adapters)
77 1/2″
Maximum Lift Height (With Adapters)
88 1/2″
Minimum Arm Height
4″
Inside Column
118 1/8″ (9′ 10 1/8″) or 123 1/2″ (10′ 3 1/2″)
Drive Thru
103 5/8″ (8′ 7 5/8″) or 109″ (9′ 1″)
Column Size
8 3/4″ x 14″
Column Thickness of Steel
6mm
Base Of Lift
18 1/2″ x 21 1/2″
Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended
Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)
Adapter Heights
4 Each 2″, 3″, 6″
Arm Hole/Adapter Peg Size
1.5″
