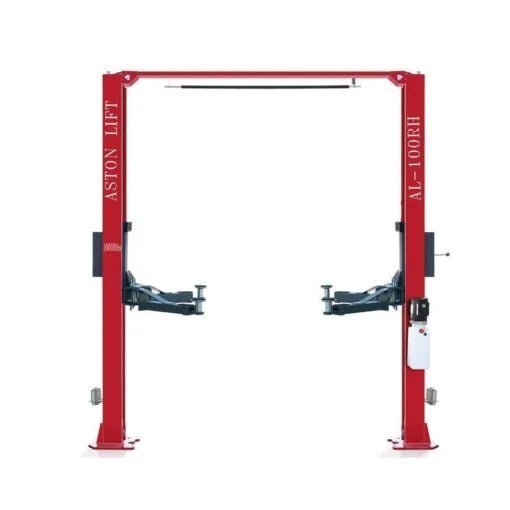

Aston 2 post car lift 10,000lb two post auto lift *Single Lock Release High-End

Specifications:

Model
AL-100RH

Capacity
10000 lbs.

Max Lift Height
72″ (1830mm)

Minimum Pad Height
4.33″ (110mm)

Overall Height
147″ (3720mm)

Overall Width
135″ (3430mm)

Width Between Columns
111″ (2820mm)

Drive thru Clearance
104″ (2650mm)

Lifting Time
40s (Adjustable)

Lowering Time
30s (Adjustable)

Column Thickness of Steel
0.24″ (6mm)

Carriage Thickness of Steel
0.24″ (6mm)

Arms Thickness of Steel
0.24″ (6mm)

Motor Power
3.0kw

Voltage
220V 1ph

Noise
<70db

Net weight
2101 lbs. (953kg)

Gross weight
2145 lbs. (973kg)

Packing size
147″ x 18″ x 30″ (3720x460x750mm)

Pump Packing size
36″x12″x14″ (900x300x350mm)
