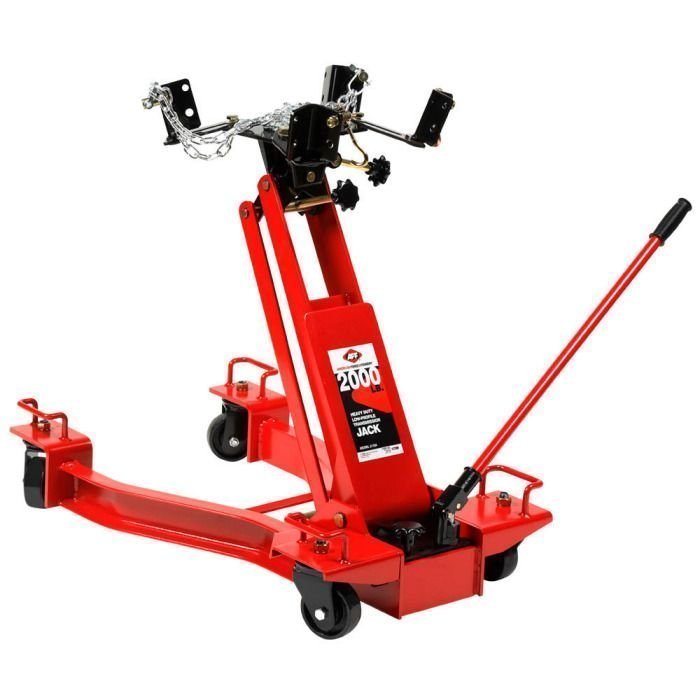

The AFF Low Profile Transmission Jack allows a service technician the ability to install or remove transmissions, differentials, and transfer cases. Ideal for light to medium weight truck transmissions. The low profile style provides superior clearance and the wide high-grade alloy steel wishbone frame design provides for efficient load distribution and increased stability. The 4-way tilting head allows easy positioning for installation and removal of transmissions and the fully adjustable universal saddle with adjustable arms allows easy positioning. This is equipped with a safety overload bypass and a long handle that pivots 360° around the pump.
Features
Ideal for light to medium-weight truck transmissions
Constructed of high-grade alloy steel
Low profile style provides superior clearance
Wide chassis design provides for efficient load distribution and increased stability
4-way tilting head allows easy positioning for installation and removal of transmissions
Fully adjustable universal saddle with adjustable arms for easy positioning
Safety overload bypass to prevent hydraulic damage
Four industrial grade 3″ casters
Long handle pivots 360° around the pump
Specifications
Capacity: 2,000 lbs.
Low Height: 5.875″
High Height: 30.75″
Front Tilt: 15°
Rear Tilt: 10°
Side Tilt: 15°
Head Width: 7″ – 16″
Head Length: 9″ – 14″
Width: 18.25″
Length: 36.75″
Weight: 194 lbs.
Warranty: (1) Year
