Features and Benefits:
Color: Red/Black
Capacity: 25/10 Tons
Product Type: Axle Jack
Stages: 2
Power Type: Hydraulic
Operation Type: Air Assist
Duty Level: Super Heavy Duty
Minimum Height (in.): 7.28″
Maximum Height without Extensions: 18.66″
Maximum Height with Extensions: 23.16″
Ram Lift (in.) – Stage 1: 3.82″

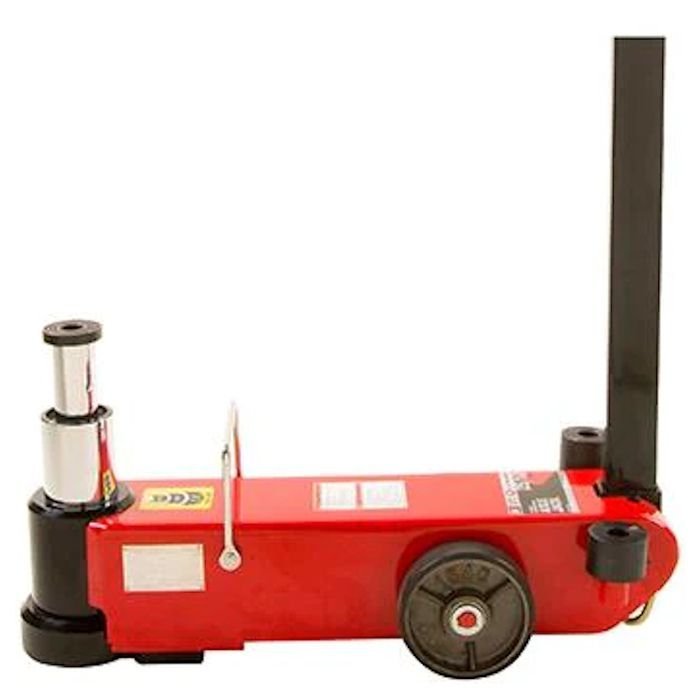

Ram Lift (in.) – Stage 2: 7.56″
Ram Lift (in.) – Stage 3: N/A
Capacity (T) – Stage 1: 25 Tons
Capacity (T) – Stage 2: 10 Tons
Capacity (T) – Stage 3: N/A
Handle Length (in.): 54″
Number of Handle Pieces: 1
Handle Locking Positions: 90/45/180
Chassis Length (in.): 35.5″
Chassis Width (in.): 16″
Saddle Diameter: 4″
Number of Extensions: 2
Extension Sizes (in.): 1.75″ & 3″
Extension Screw: N/A
Wheel Diameter (in.): 8″
Working Air Pressure: 116 – 174 PSI
Weight: 128 Lbs.
Warranty: 1 Year
Certification: ASME/PASE 2019

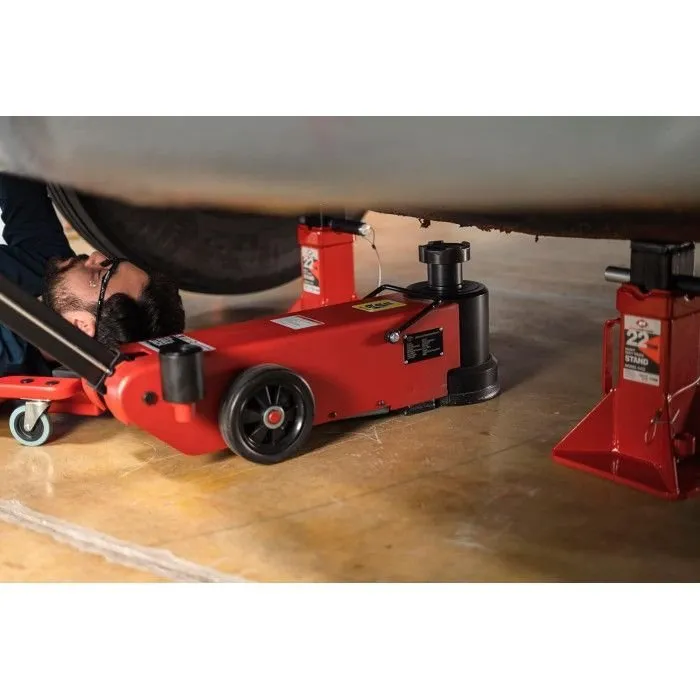

Special Features: Air Return|High Speed Air Motor|Overload BypassAmerican Forge & Foundrys Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.
SUPER HEAVY DUTY, 2 Stage 25 Ton and 10 Ton built tough for the rigors of the Heavy-Duty Trucking, Agricultural and Fleet business.
An integral Descent Metering Valve maintains a controlled and safe lowering of the load
The piston head seal design is borrowed from Industrial technology providing a superior low- and high-pressure seal, giving this jack a much better hold under severe load conditions
Double polished chromed pistons allow for much tighter tolerances which reduces oil bypassing and reduced ram scoring.

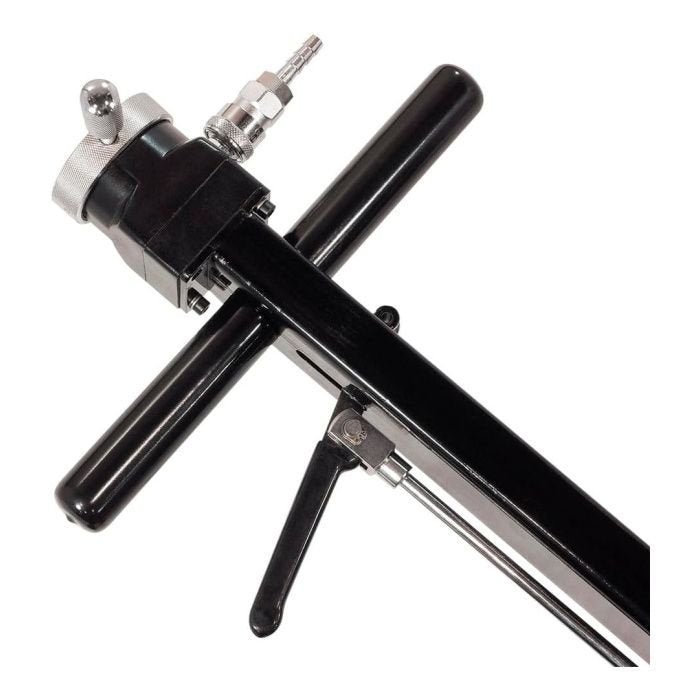

The extra-long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places.
Single piece base construction provides superior strength for increased load stability.

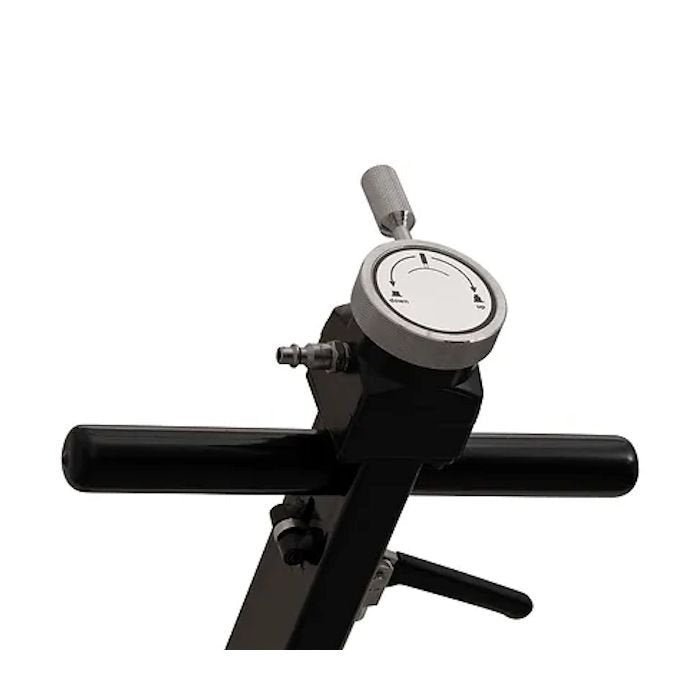

Air assisted lowering speeds up ram retraction.
Built in overload safety valve prevents damage to unit due to excessive load.

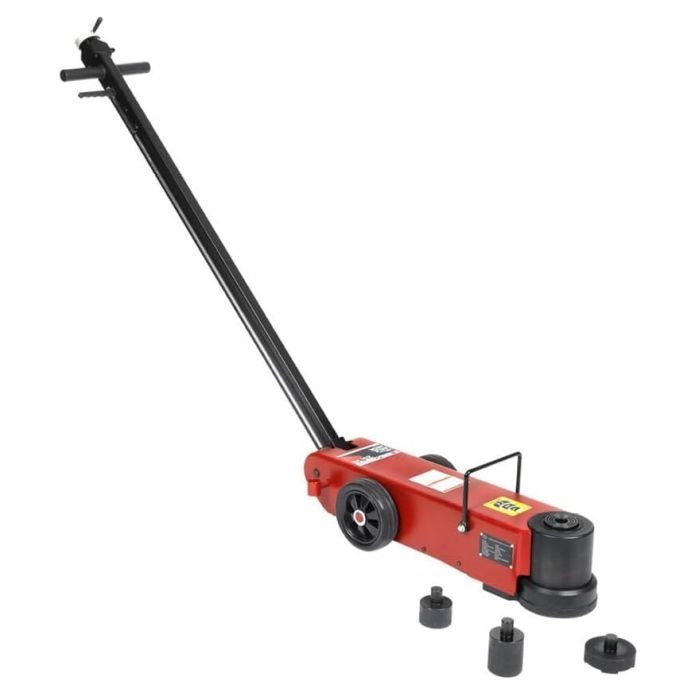

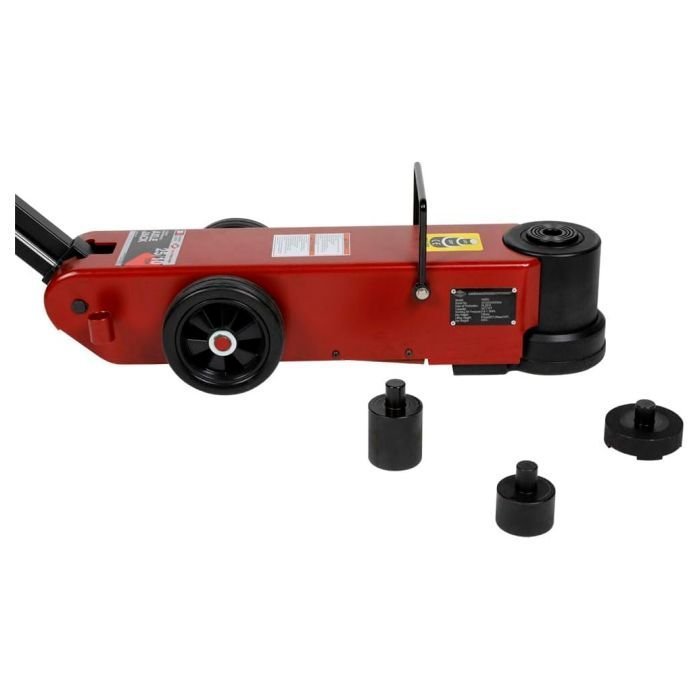

Comes with 2 extensions (3”, 1.75”) and saddle adapter.
