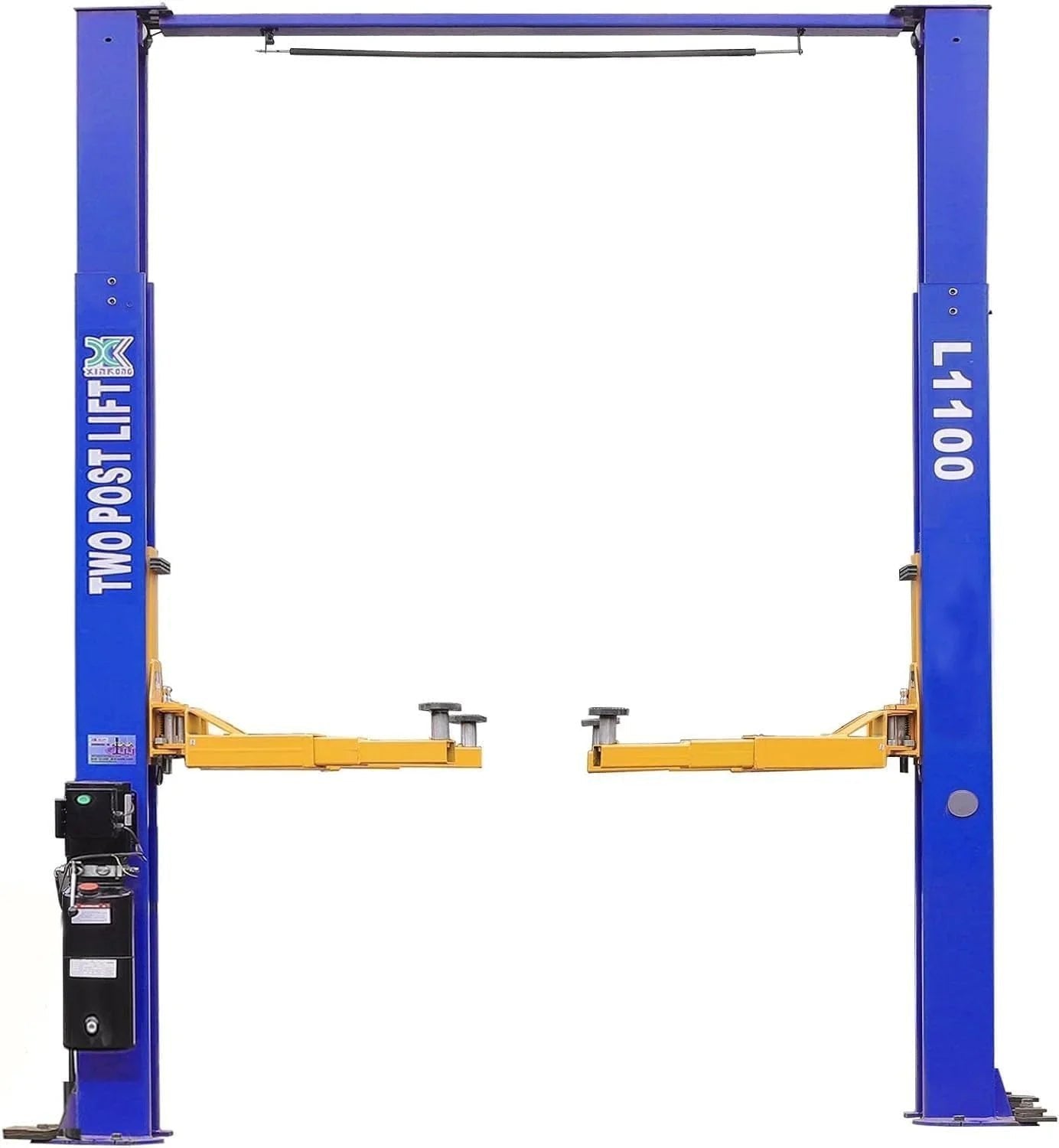

10,000 lbs Car Lift L1100 2 Post overhead Car Auto Truck Hoist 220V OR 110V

2 Post Car Lift L1100 Auto Truck Hoist 10,000 lb Overhead Clear Floor 220V
Auto Car Lift L1100 220V 60HZ 1PH 3HP MOTOR features Symmetrical Arm Assembly with Straight Front / Rear 2 Stage reach from 30 1/4″ to 49 1/5″ and Equal length of front and rear arm design Drop-in type lifting pads and truck adapters are included.
Features:
Safety Mechanism:
220v Or 110v 60hz 1ph 3hp Motor
Auto Car Lift L 1100
symmetrical Arm Assembly:
Straight Front / Rear 2 Stage Reach From 30 1/4″ To 49 1/5″
Equal Length Of Front And Rear Arm Design
Drop-in Type Lifting Pads And Truck Adapters Included
Safety Mechanism:
Double Point Safety Lock Release *automatic Arm Lock Restraints *relief Valve Built In Power Pump To Prevent Overloading *door Guards Protection Rubber *up-limit Switch To Protect Cylinders Working Stroke Used In Safe Length Scope *heavy Duty 5/16″ Diameter Cable And 4.56″ Pulley Reduce High Stress On Synchronization Process And Increase Cable Life *stiffened Base Plate 5/8″ Thickness *ultra High Molecular Self Lubricating Nylon Slider Ensures Carriage Smooth Moving Up And Down *anchor Bolts/mounting Hardware Included
Control System *lifting Operation By Pressing “Up” Button On Motor *manual Lowering Operation By Pressing Lever *relief Valve Built In Power Pump To Prevent Overloading *1 Sets Truck Adapters Included *lifting Capacity: 10,000 Lbs *the Overall Height 145-5/8″ *the Overall Width 133-1/4″ *column Width 10.62″ *base Width 18.89″ *column Thickness Of Steel 3/16″ *carriage Thickness Of Steel 15/64″ *arms Thickness Of Steel 15/64″ *front Arm 30.7″ To 48″ *rear Arm 30.7″ To 48″ *min Pad Height: 3-7/8″ *lift Height Max: 78-7/8″ *drive-thru Width Clearance: 100″ *time To Full Rise: 20-60 Sec *shipping Weight: 1460 Lbs
